100% Tested Goodyear Industrial Air Spring 578-932-374 Trailer Air Suspension

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	3B14-374

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	3B14-374	Brand Name:	GUOMAT
Bellows Type:	Triple Convoluted	Cross Number:	FT 530-32 336
Sample:	Available	Purpose:	Reduce Shock
Truck Model:	For Firestone/Contitech/Goodyear,etc	Working Temperature:	-40℃+70℃
Highlight:	100% Tested Goodyear Industrial Air Spring

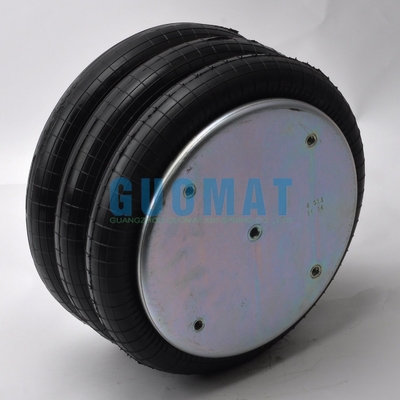

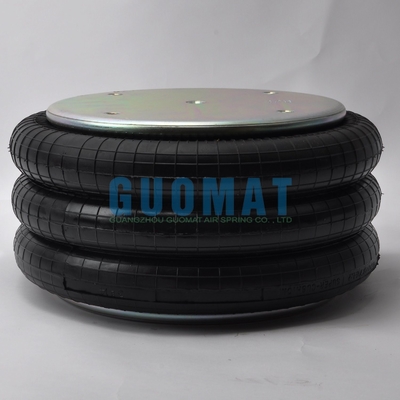

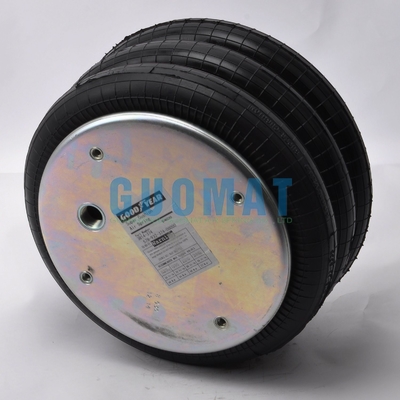

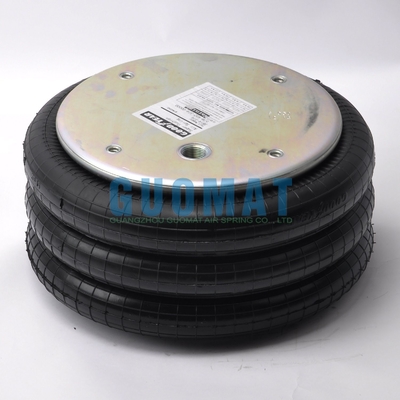

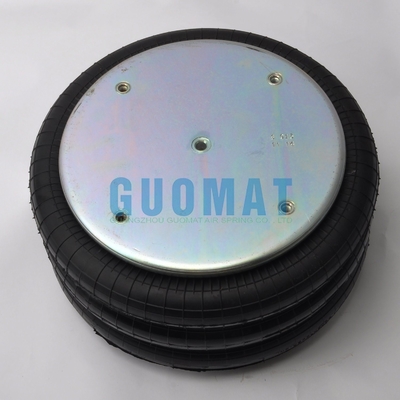

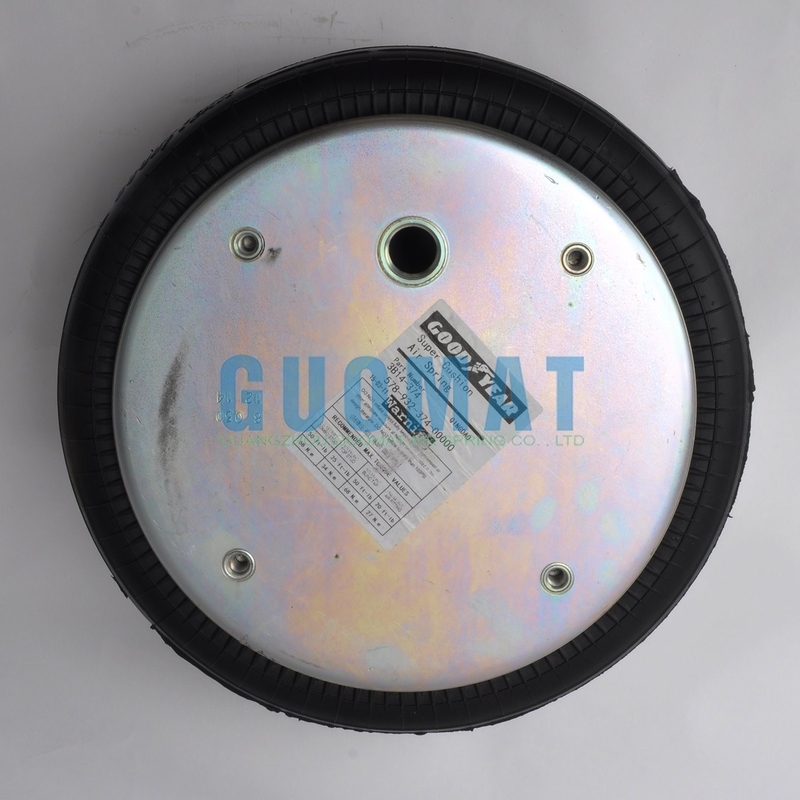

100% Tested Goodyear Industrial Air Spring 578-932-374 Trailer Air Suspension

Production Introduction

Expertly crafted for optimal performance, this actuator features a durable crimped assembly for enhanced strength. Its convoluted bellow, made from high-quality Natural Rubber, offers superior dynamic capabilities and adaptability. Zinc-plated top and bottom plates ensure excellent corrosion resistance, guaranteeing reliable, long-term operation. This combination of durability, versatility, and power makes it an ideal solution for diverse industrial applications.

Product Details

Convolutions	Triple Convoluted
Style No.	YI-3B
Temperature Range [min]	-30℃
Pressure [max]	100 psi
Temperature Range [max]	+70℃

Part Number

Goodyear Number: 3B14-374
Goodyear Number: 3B 14-374
Goodyear Flexmember: 578932374
Goodyear Flexmember: 578 932 374
Goodyear Flexmember: 578-932-374

Contitech Number: FT 530-32 336

Contitech Number: FT530-32 336

Contitech Number: FT53032 336

Contitech Order: 64506

Automann Number: SP3B32R-7808

Brake & Wheel Number: M3533

Dayton Number: 354-7808

Dayton Number: 354 7808

Dayton Number: 3547808

EZ Ride Number: 8030170

Firestone Number: W01-358-7808

Firestone Number: W01 358 7808

Firestone Number: W013587808

Firestone Style: 313

FleetPride Number: AS7808

Hendrickson Number: S-13157

Hendrickson Number: S 13157

Hendrickson Number: S13157

Loadguard Number: SC2031

Navistar/Fleetrite Number: 554801C1

Peerless Number: 0550-00030

Peerless Number: 055000030

Peerless Number: 0550 00030

Ridewell Number: 1003587808C

SAF Holland Number: 57007808

Taurus Number: 6319

Triangle Number: AS-4336

Triangle Number: AS4336

Triangle Number: AS 4336

TRP Number: AS78080

Truckstell Number: 63640

Warren Number: 8030170

Goodyear Triple Convoluted Air Bellows

Part No.	Usable Stroke	Max Dia. @ 100 psi In	Min Height Inches	Max Height Inches	Bumper	Force At Actuator Height Limit (Pounds)				Force At Compressed Height Limit (Pounds)
Part No.	Usable Stroke	Max Dia. @ 100 psi In	Min Height Inches	Max Height Inches	Bumper	100 psi	80 psi	60 psi	40 psi	100 psi	80 psi	60 psi	40 psi
3B12-305	13.3	13	4.7	18	NO	29.25	2165	1370	735	10165	7915	5855	3960
3B14-351	10.9	15.5	7.3	18.2	YES	4770	3385	1935	940	13885	10550	7810	5220
3B14-353	10.9	15.5	7.3	18.2	NO	4770	3385	1935	940	13885	10550	7810	5220
3B14-354	13.5	15.5	4.7	18.2	NO	4770	3385	1935	940	15200	11080	8240	5220
3B14-361	13.5	15.5	4.7	18.2	NO	4770	3385	1935	940	15200	11080	8240	5220
3B15-375	12.3	16.5	4.7	17.0	NO	6165	4775	3470	2225	16650	13275	9765	6555
3B15-376	9.7	16.5	7.3	17.0	YES	6165	4775	3470	2225	14925	11865	8905	5945
3B15-377	12.3	16.5	4.7	17.0	NO	6165	4775	3470	2225	16650	13275	9765	6555
3B15-378	9.7	16.5	7.3	17.0	YES	6165	4775	3470	2225	14925	11865	8905	5945
