Goodyear 3B12-304 Air Spring 578-93-3-100 Triple Rubber Air Bellow FT 330-29 503 Contitech

Product Details:

Place of Origin:	Mexico
Brand Name:	Goodyear
Certification:	ISO/TS16949, ISO9001
Model Number:	3B12-304

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD159.9-299.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Manufacturer Part Number:	3B12-304 \| Customized Request	Brand:	GOODYEAR
Material:	Natural Rubber	Package:	Brown Carton
Goodyear Bellows:	578-93-3-100	Contitech:	FT 330-29 503
Color:	Black	Firestone:	W01-358-8006
Highlight:	Goodyear 3B12-304 Air Spring , 578-93-3-100 Triple Rubber Air Spring

Goodyear 3B12-304 Air Spring 578-93-3-100 Triple Rubber Air Bellow FT 330-29 503 Contitech

Product Description

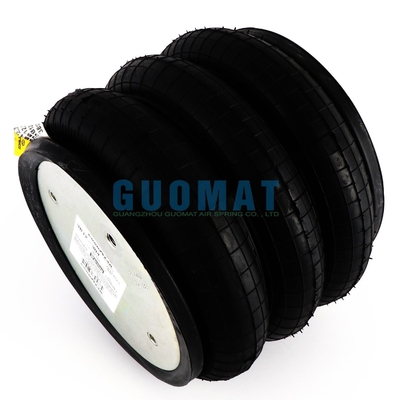

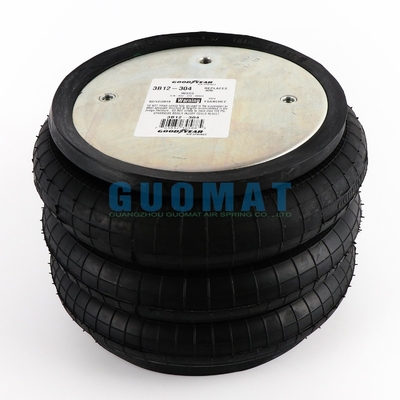

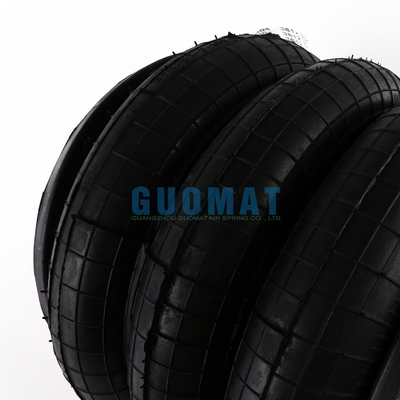

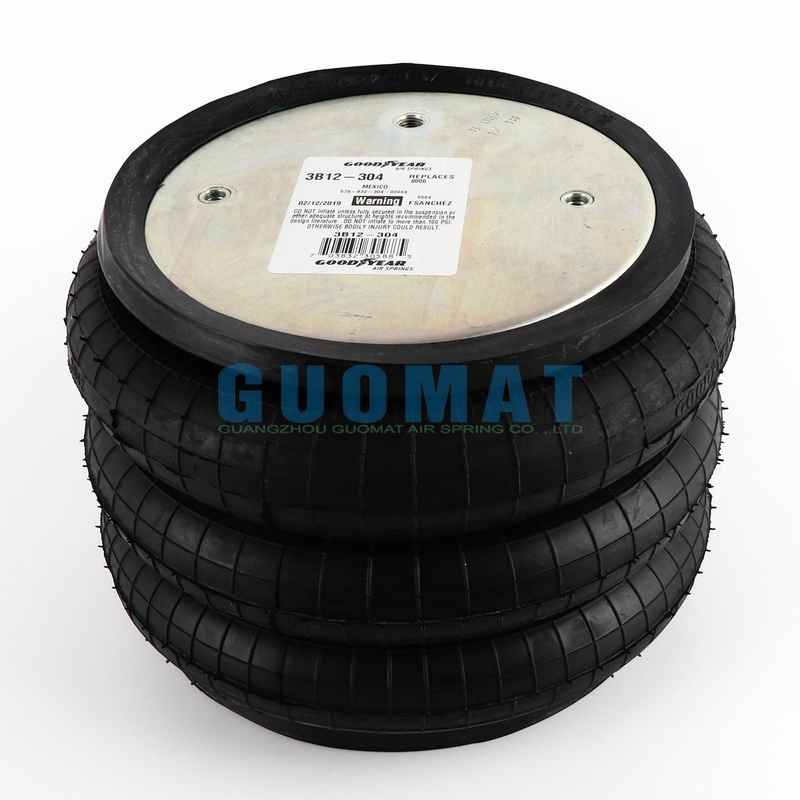

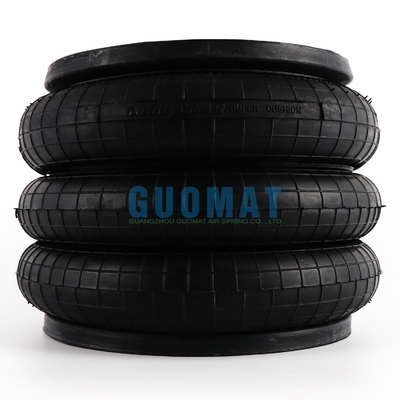

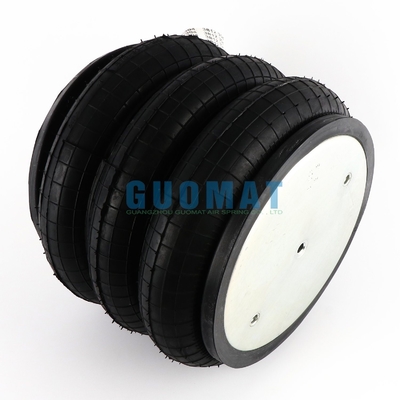

Goodyear Triple Bellow Air Spring: 3B12-304

Goodyear Triple Bellow Air Spring: 3B 12-304

Goodyear Triple Bellow Air Spring: 3B12 304

Goodyear Bellows Number: 578-93-3-100

Goodyear Bellows Number: 578 93 3 100

Goodyear Bellows Number: 578933100

3B12-304 Cross Reference Numbers

Automann	ABSP3B22R-8006	Contitech	64568
Contitech	FT 330-29 503	Firestone	W013588006
Load Guard	SC2132	Suspensions Inc.	200620
Triangle	4430/4503	TRP	ASP1710

Technical Data

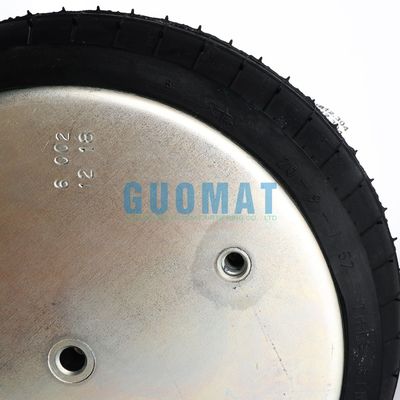

Top Plate Hole/Stud Qty: 2
Top Plate Dia: 9
Top Plate C to C Diameter: 6.2
Bottom Plate Hole Stud Qyt: 2
Bottom Plate Dia: 9
Bottom Plate C to C Diameter: 6.2
Bottom Plate Alignment: Parallel
Bumper: No
Bracket:Without
Min Height: 4.8
Max Height: 18

Goodyear Triple Convoluted Air Spring

Bellows Number	Part Number	OEM Number
578-93-3-100	3B12-300	Contitech FT 330-29 431 Firestone W013588008 Firestone W013588025
578-93-3-100	3B12-301	Contitech FT 330-29 432 Firestone W013588010 Firestone W013588030
578-93-3-100	3B12-303	Contitech FT 330-29 434 Firestone W013588018
578-93-3-100	3B12-305
578-93-3-100	3B12-310	Contitech FT 330-29 466 Firestone W013588027
578-93-3-100	3B12-312	Contitech FT 330-29 525 Firestone W013588033
578-93-3-100	3B12-315	Contitech FT 330-29 547
578-93-3-100	3B12-319	Contitech FT 330-29 413 Firestone W013588032
578-93-3-100	3B12-324
578-93-3-100	3B12-328	Contitech FT 330-29 546 Firestone W013587994
578-93-3-100	3B12-329	Contitech FT 330-29 546 Firestone W013587990 Firestone W013587995
578-93-3-100	3B12-335	Contitech FT 330-29 520 Firestone W013587996
578-93-3-100	3B12-338
578-93-3-100	3B12-342
578-93-3-103	3B12-322	Firestone W013588042
578-93-3-103	3B12-323	Firestone W013588048
578-93-3-103	3B12-325	Firestone W013588047
578-93-3-103	3B12-326
578-93-3-103	3B12-347
578-93-3-104	3B12-337
578-93-3-105	3B12-415	Contitech FT 330-29 554 Firestone W013588038
578-93-3-105	3B12-416	Firestone W013588039
578-93-3-350	3B12-351
578-93-3-350	3B12-354	Contitech FT 530-32 336 Firestone W013587808
578-93-3-350	3B12-356	Contitech FT 530-32 329 Firestone W013587798
578-93-3-350	3B12-359	Contitech FT 530-32 325 Firestone W013587816 Firestone W013587818
