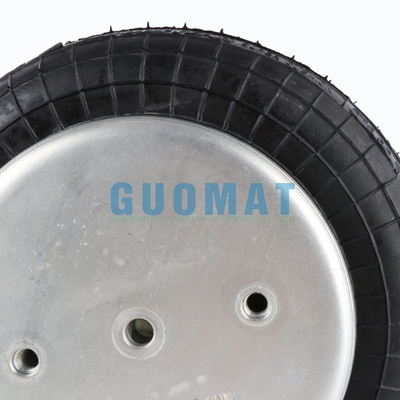

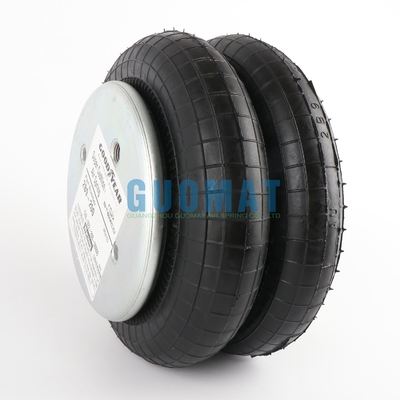

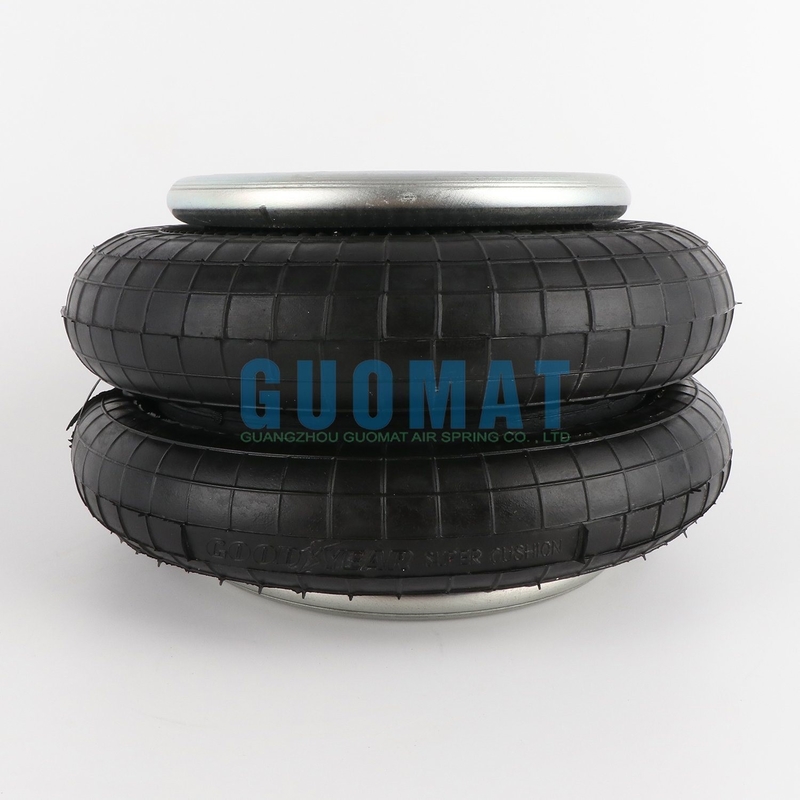

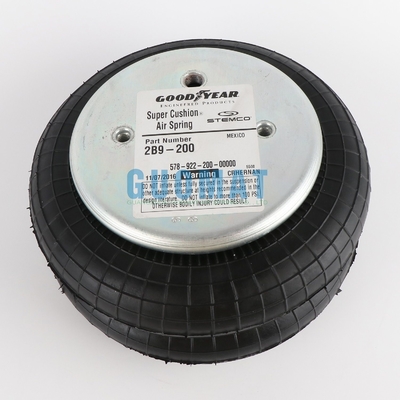

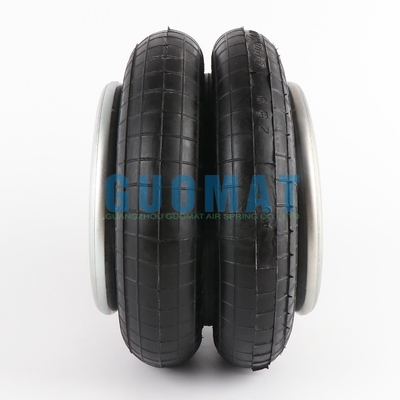

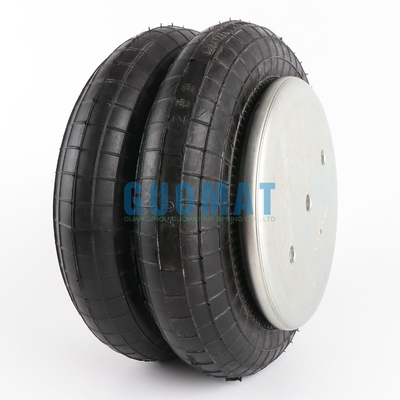

Goodyear Air Bellow 2B9-200 Contitech FD 200-19 320 Double Convoluted Air Spring

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B9-200

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2B9-200	Spring Material:	Natural Rubber
Air Spring Type:	Double Cylinder	Keywords:	Air Suspension Shock Absorber
Trademark:	GUOMAT	Cross References:	W01-358-6910
Max. Diameter:	250MM	Air Hole:	G1/4
Highlight:	320 Double Convoluted Air Spring , Contitech FD 200-19 Air Spring , Goodyear Air Bellow 2B9-200

Goodyear Air Bellow 2B9-200 Contitech FD 200-19 320 Double Convoluted Air Spring

Product Standard

Body Max. Diameter: 250mm

Space Required: 265mm

Bellows Type: Double Convoluted

Compressed Height: 75mm

Expanded Height: 275mm

Full Storke: 200mm

Center to Center Distance: 89mm

Cover Plate Diameter: 161mm

Screw Type: 2×M8×15

Technical Parameters

Pressure p	[bar]	3	4	5	6	7	8
Height H [mm]	230	4.21	5.7	7.2	8.73	10.3	12
	200	5.8	7.78	9.74	11.7	13.8	15.9
	170	6.96	9.3	11.7	14.1	16.5	19
	140	7.86	10.5	13.2	15.8	18.5	21.3
	110	8.52	11.4	14.2	17.1	19.9	22.9
	80	9.07	12	15	18	21	24.1

Refer Numbers

Goodyear Parts NO.:2B9-200
Goodyear Parts NO.:2B9 200
Goodyear Parts NO.:2B9200
Goodyear Bellow NO.578923202
Goodyear Flexible members No.: 578-92-3-202
AUTOMANN ABSP2B12R-6910
CONTI 64267 / FD 200-19 320
DAYTON 354-6910
DINA A-8127-19
FIRE-STONE 6910 / W01-358-6910
GRANNING 1371
HDA PMABG-6910B
HENDRICKSON 45843-3 / B-8768
INT'L/NAVISTAR 554783C1
LOAD GUARD SC2011
MASA 227138412
PREVOST 63-0173
R&S TRUCK & BODY 1027405
RIDEWELL 1003586910C / S-4512-C
SPRINGRIDE 2B9-492
TAURUS AS218-6910
TRIANGLE 4320
TRP AS69100
WATSON & CHALIN AS-0001

Goodyear Double Convoluted Air Spring

2B14-469	578-23-8-329
2B14-354	578-92-3-353
2B14-355	578-92-3-353
2B14-356	578-92-3-353
2B14-359	578-92-3-353
2B14-360	578-92-3-353
2B14-366	578-92-3-353
2B14-367	578-92-3-353
2B14-473	578-92-3-353
2B14-362	578-92-3-356
2B14-363	578-92-3-356
2B14-365	578-92-3-356
2B14-383	578-92-3-356
2B14-462	578-92-3-356
2B14-470	578-92-3-356
2B14-476	578-92-3-356
2B14-479	578-92-3-356
