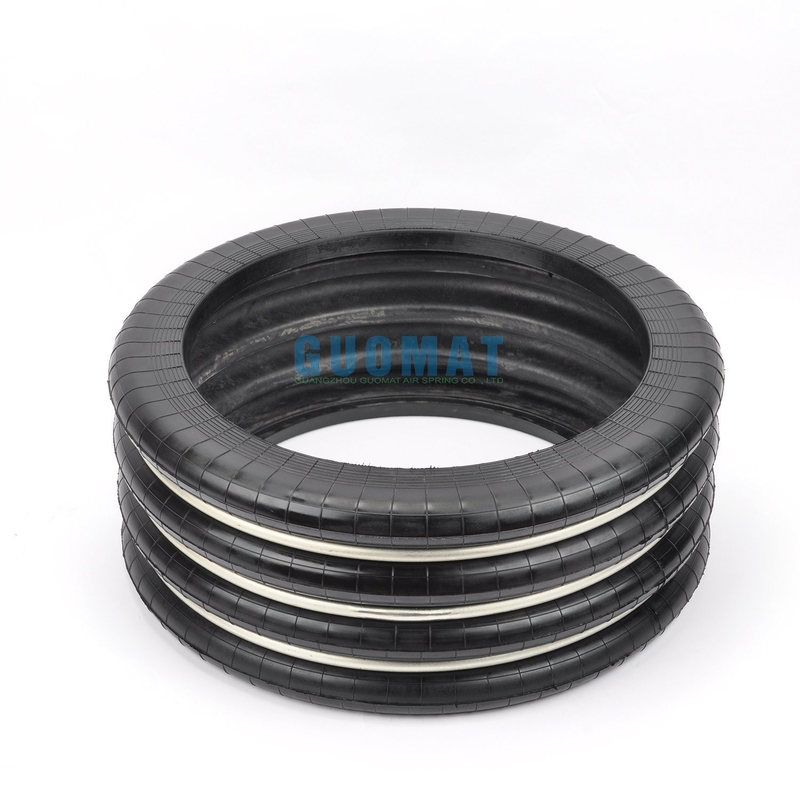

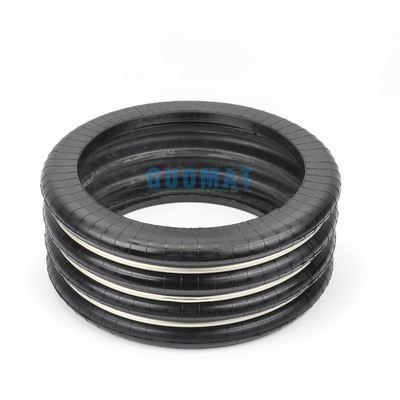

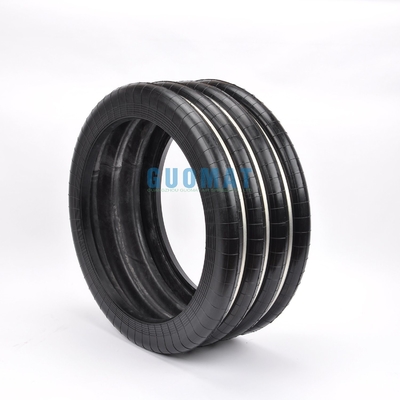

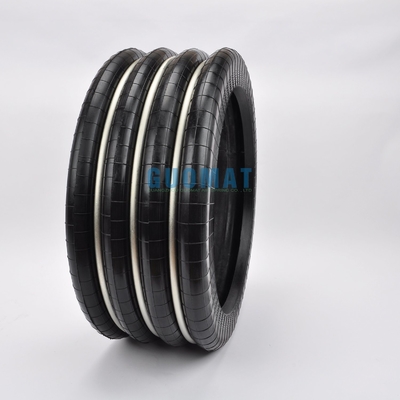

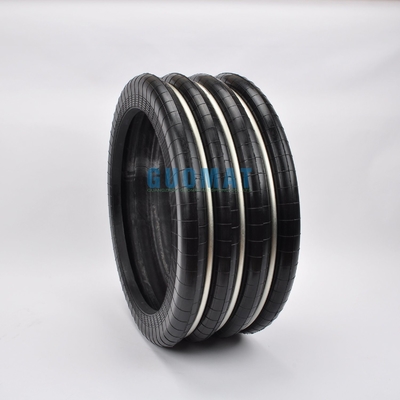

Yokohama Tripled Convoluted Air Actuator S-500-4 Air Bellow Design Height 218MM
Product Introduction
Punch air springs are widely used in stamping and forming of electronics, communications, computers, household appliances, furniture, transportation, (automobiles, motorcycles, bicycles) hardware parts, etc. They are widely used in manufacturing industries such as precision machinery, instruments, computers, cameras, automobiles, motorcycles, computers, equipment, and household appliances.
Product Specifications
Design Height: 218 mm
Expanded Height: 363 mm
Compressed Height: 123 mm
Max. Stroke: 90 mm
Max. Bellow Diameter: 560 mm
Effective Area: 1965 cm
Volume: 41.9 L
Load: 96.3 kN
Natural Vibration Frequency: 1.5 Hz
Maximum Internal Pressure: 0.69
Internal Pressure Failure: 3.9-4.9
Features of Air Springs
1. Long service life. The self-sealing type has excellent durability due to less rubber deformation during expansion and contraction.
2. Maintenance is very simple. There is no friction and sliding part, so no lubricating oil is required.
3. The installation height can be reduced. Compared with other springs, the installation height can be reduced, which effectively increases the stroke.
4. The spring parameters with elasticity and softness can be obtained, with large load and elasticity and softness, and excellent vibration resistance.
5. The output of the bearing capacity is variable, and the bearing capacity can be changed within a wide range by changing the internal pressure.
6. The height can be controlled. If used in conjunction with the height adjustment valve, a constant height can be maintained for different loads.
7. It has a damping effect. If used in conjunction with the auxiliary air chamber and the throttle valve, an excellent damping effect can be obtained, thereby reducing the resonance amplitude.
8. Easy to install, simple structure, simple and easy to install and disassemble.
Other Types We Have
| GUOMAT Part NO. |
Japan YOKOHAMA Reference No. |
Japan YOKOHAMA Reference No. |
GUOMAT Part NO. |
Japan YOKOHAMA Reference No. |
Japan YOKOHAMA Reference No. |
| F-600-1 |
S-600-1R |
S 600 1R |
F-240-4 |
S-240-4R |
S 240 4R |
| F-600-2 |
S-600-2R |
S 600 2R |
F-240-3 |
S-240-3R |
S 240 3R |
| F-600-3 |
S-600-3R |
S 600 3R |
F-240-2 |
S-240-2R |
S 240 2R |
| F-600-4 |
S-600-4R |
S 600 4R |
F-240-1 |
S-240-1R |
S 240 1R |
| F-600-5 |
S-600-5R |
S 600 5R |
F-220-4 |
S-220-4R |
S 220 4R |
| F-550-2 |
S-550-2R |
S 550 2R |
F-220-3 |
S-220-3R |
S 220 3R |
| F-550-3 |
S-550-3R |
S 550 3R |
F-220-2 |
S-220-2R |
S 220 2R |
| F-500-2 |
S-500-2R |
S 500 2R |
F-200-2 |
S-200-2R |
S 200 2R |
| F-500-3 |
S-500-3R |
S 500 3R |
F-200-3 |
S-200-3R |
S 200 3R |
| F-500-4 |
S-500-4R |
S 500 4R |
F-200-4 |
S-200-4R |
S 200 4R |
| F-500-5 |
S-500-5R |
S 500 5R |
F-160-1 |
S-160-1R |
S 160 1R |
| F-450-1 |
S-450-1R |
S 450 1R |
F-160-2 |
S-160-2R |
S 160 2R |
| F-450-2 |
S-450-2R |
S 450 2R |
F-160-3 |
S-160-3R |
S 160 3R |
| F-450-3 |
S-450-3R |
S 450 3R |
F-160-4 |
S-160-4R |
S 160 4R |
| F-450-4 |
S-450-4R |
S 450 4R |
F-120-4 |
S-120-4R |
S 120 4R |
| F-450-5 |
S-450-5R |
S 450 5R |
F-120-3 |
S-120-3R |
S 120 3R |
| F-400-2 |
S-400-2R |
S 400 2R |
F-120-2 |
S-120-2R |
S 120 2R |
| F-400-3 |
S-400-3R |
S 400 3R |
F-100-4 |
S-100-4R |
S 100 4R |
| F-400-4 |
S-400-4R |
S 400 4R |
F-90-3 |
S-90-3R |
S 90 3R |
| F-400-5 |
S-400-5R |
S 400 5R |
F-90-2 |
S-90-2R |
S 90 2R |
| F-350-1 |
S-350-1R |
S 350 1R |
F-90-1 |
S-90-1R |
S 90 1R |
| F-350-2 |
S-350-2R |
S 350 2R |
F-300-1 |
S-300-1R |
S 300 1R |
| F-350-3 |
S-350-3R |
S 350 3R |
F-300-2 |
S-300-2R |
S 300 2R |
| F-350-4 |
S-350-4R |
S 350 4R |
F-300-3 |
S-300-3R |
S 300 3R |
| |
|
|
F-300-4 |
S-300-4R |
S 300 4R |
