Norgren Original PM/31062 Double Bellows Industrial Air Spring 115mm Stroke Shock Absorber

Product Details:

Place of Origin:	Germany
Brand Name:	Norgren
Certification:	ISO/TS16949, ISO9001
Model Number:	PM/31062

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD129.9-299.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Function:	Shock Absorber	Keywords:	Double Convoluted Air Spring
Transport Package:	Cartons	Type:	Gas-Filled
Temperature:	-30 ... 50 °C, -22 ... 122 °F	Pressure:	0 ... 8 Bar
Part NO.:	PM/31062	Cross Reference:	Contitech FD 76-14 DI
Highlight:	Double Bellows Industrial Air Spring , 115mm Stroke Industrial Air Spring , PM/31062 Industrial Air Spring

PM/31062 Original Factory Norgren Cylinder Cross FD 76-14 Contitech Air Spring

Product Description

Operation: Single-acting
Stroke length: 115 mm
Port size: G1/2
Nominal diameter: 6"
Top plate screw (nut) teeth : 4M8
Screw (nut) teeth of the bottom cover plate : 4M8
Air hole/air inlet: G1/2
Top plate diameter (width): 153.5 mm
Diameter (width) of the bottom cover plate : 153.5 mm
Material top and bottom plate : aluminum
Bell rubber bellows

Cross Reference

Norgren	PM/31062 / PM31062 / PM 31062
Fire stone	W01-R58-4070/W01 R58 4070/W01R584070
Contitech	FD 76-14 DI / FD76-14 DI / FD 76-14
Dunlop	6''X2 / SP2917
Parker	9109001A
Oria D Series	6''x2

Packaging & Shipping

Packing Details

1. One piece in a poly bag.1piece in a carton.
2. Mark the product numbers and the QTY outside the carton.
3. As your requirement.

Shipping Details

1.Delivery time: Usually 2-8 working days after receiving the payment.
2.Shipping by Air,By Sea,By Express(DHL,UPS,FEDEX...)
3.Please make sure the address is correct, after the goods are shipped, we will track the logistics information until you receive the goods.

Company Profile

Company Profile
Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.

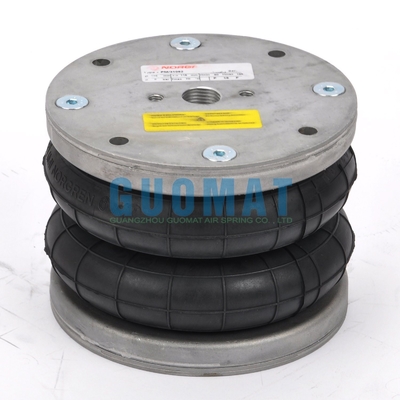

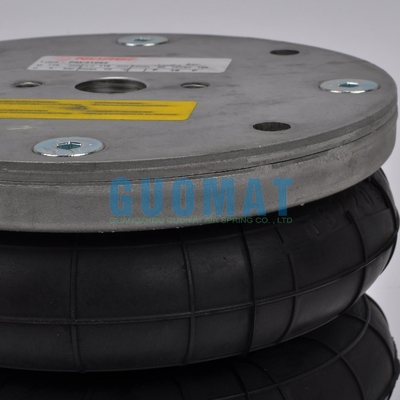

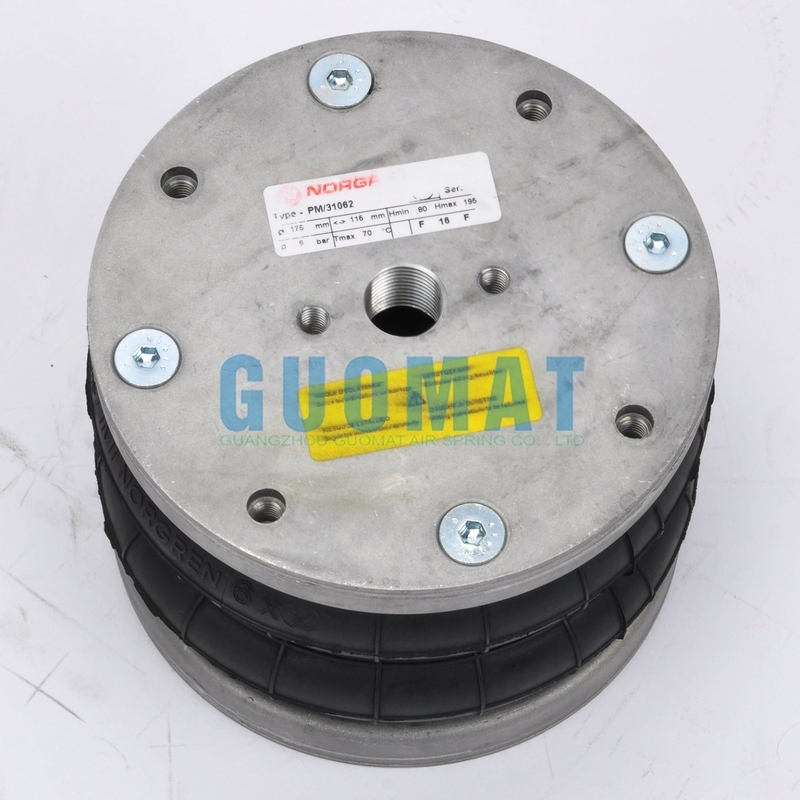

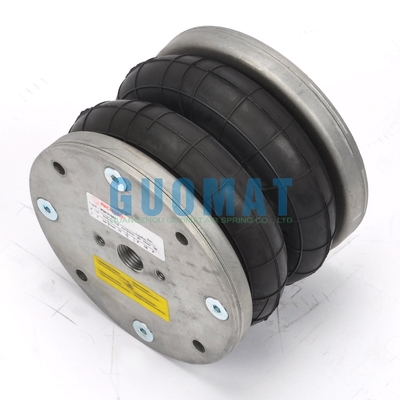

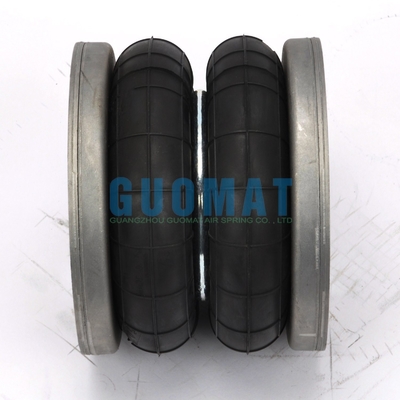

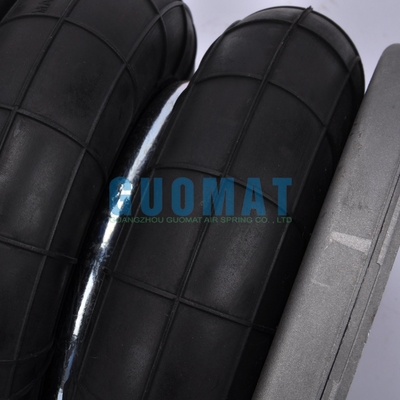

Pictures of Details
Pm/31062 Original Factory Norgren Cylinder Cross Fd 76-14 Contitech Air Spring

Warehouse Pictures

FAQ

1. Are you a Manufacture factory?
Yes, We are the direct manufacture factory, located in Guangzhou China, Which is specialized in air spring in China for over 15years experience from 2008 years.

2. What is your main products?
Our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system.

3. Is the sample available?
Yes, Usually we send the samples by TNT,DHL,FEDEX or UPS.

4. What is your warranty term?
There is a 12months warranty for our export products has run out from the date of the shipment.

5. Can i use my own logo and design on products?
YES,OEM is welcomed.

6. I can not find out the items what i want from your website, can you offer the products i need?
YES.One of our service term is sourcing the products that our customers need,So please tell us the details information of the item.
