Single Convoluted Industrial Air Spring Gart Ari. 275 Natural Bellows 1B5081

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B5081

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	1B5081	Warranty:	One Year
Stroke:	129 Mm	Transport Package:	Cartons
Function:	Reduce Shock	Bellows Type:	Single Convoluted
Sample:	Available \| Customized Request	Pneumatic Connection:	G1/4
Highlight:	Single Convoluted Industrial Air Spring , Industrial Air Spring 1B5081

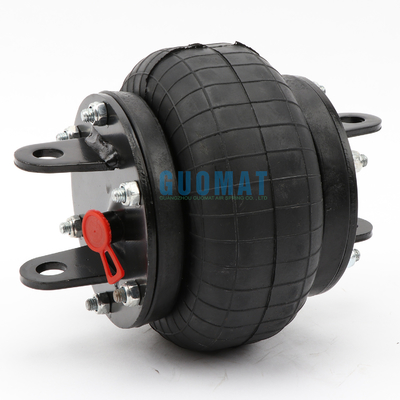

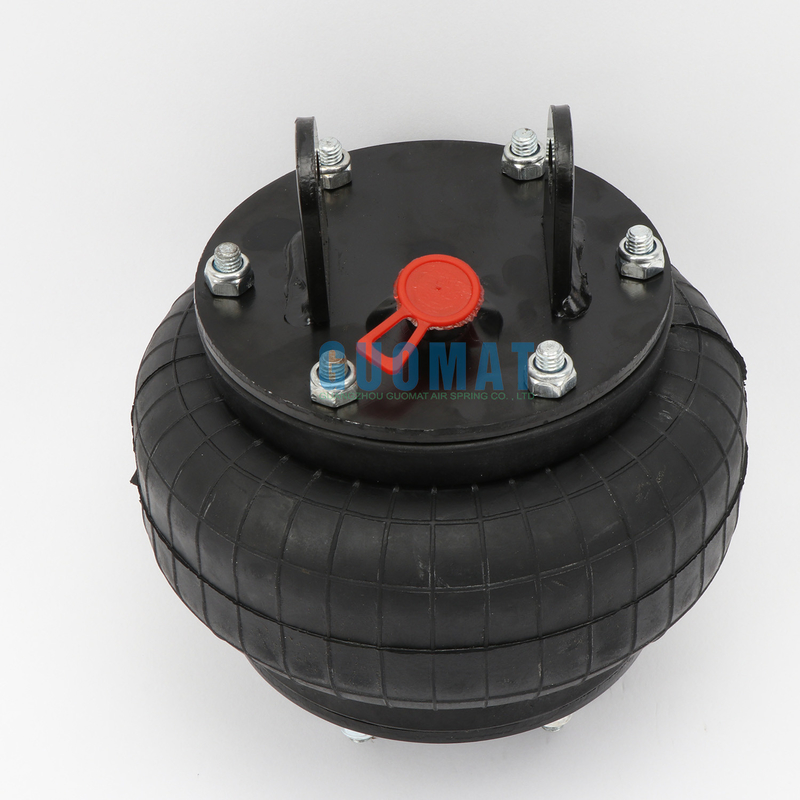

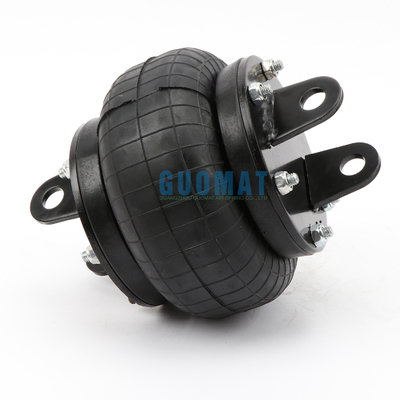

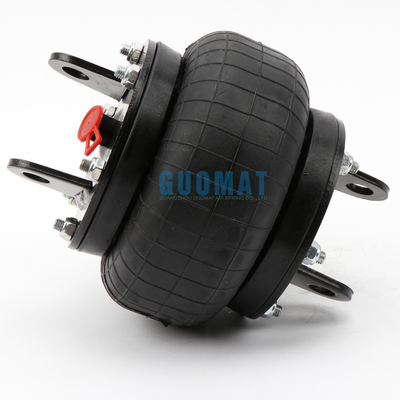

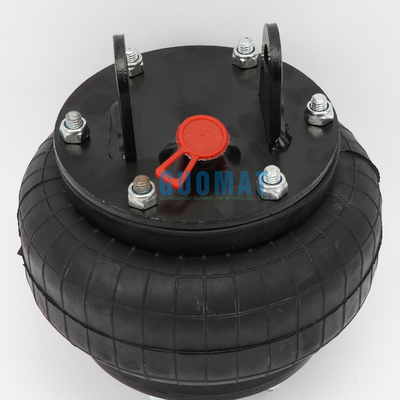

Single Convoluted Industrial Air Spring Gart Ari. 275 Natural Bellows 1B5081

Product Description

GUOMAT air spring is an ideal choice for air suspension system. It is a device that provides support and shock absorption through compressed air and is widely used in vehicles such as cars, trucks, motorcycles, etc. Compared with traditional steel springs, flange air springs have more advantages and functions.

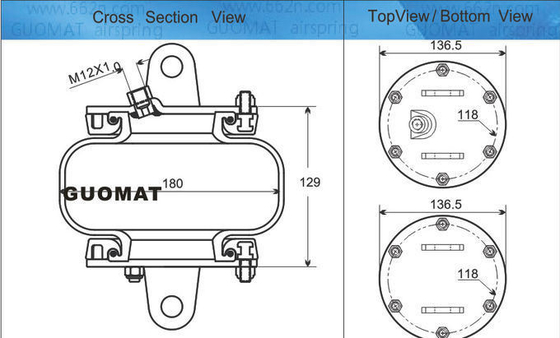

Technical Data

OEM:GART ARI.275

GUOMAT Part Number:1B5081

Operating Temperature: 57Cº to -54Cº

Natural Height: 129mm

Top Cover Plate Diameter: 136.5mm

Bottom Cover Plate Diameter: 136.5mm

Top Cover Plate Screw (Nut) Tooth :1pcXM12X1

The Working Stroke : MAX 209 mm to MIN 80 mm

Gas Hole / Air inlet: G1/4

Cross OEM Number

Manufacturer	Original Part NO.
CF gomma	88540
Blacktech	1C 181-120 F01 / 1C181-120 F01
BARTOLETTI	91621110
ZORZI	1006508

The Reason Why Choose Us?

1. Variety of products and high quality. We have hundreds of models to meet your needs. And our products have passed ISO/TS 16949:2009 certification, reaching international standards, with high quality.
2. Respond promptly. We generally reply within one day.
3. Good after-sale service. Customer satisfaction is our greatest pursuit. Once the product has any damage or quality problem, please advise us and we will replace it.

Single Convoluted Air Bellows

1B12-305	FS 40-6 CI	SP2906
1B14-350	FS 50-5 CI	SP2334
1B14-352	FS 70-7 CI	SP2913
1B14-364	FS 100-10 CI	SP1536
1B15-376	FS 120-10 CI	SP1537
1B15-378	FS 120-12 CI	SP2523
1B12-313	FS 200-10 CI	SP1540
1B14-351	FS 310-12 CI	SP1543
1B14-362	FS 330-11 CI
1B15-377	FS 330-14 CI
1B15-375	FS 530-11 CI
	FS 530-14 CI
	FS 960-12 CI
	FS 1330-11 CI
