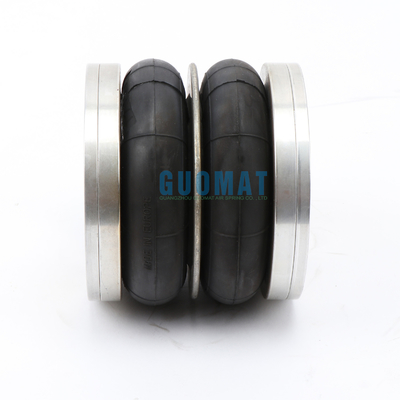

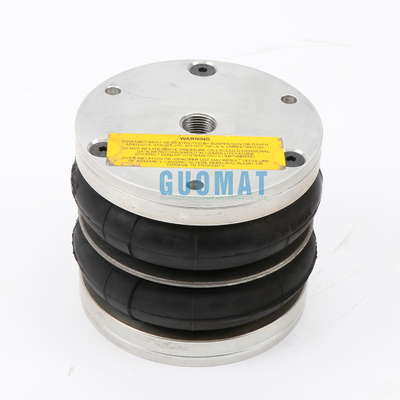

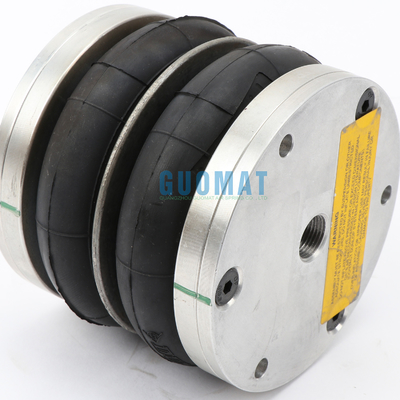

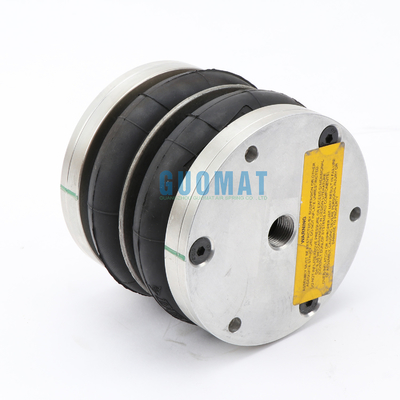

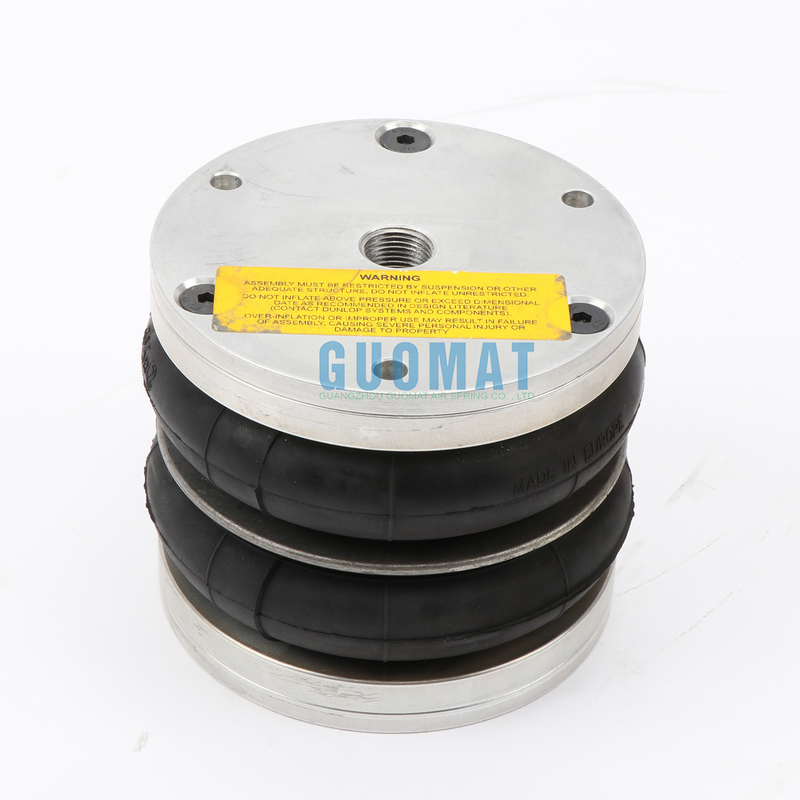

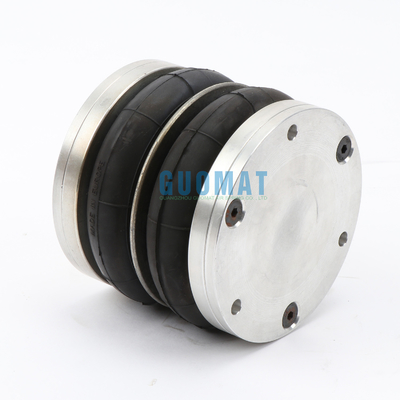

Dunlop Double Convoluted Air Spring 4 1/2X2 Rubber Bellow with Aluminum Plate

Product Details:

Brand Name:	GUOMAT
Model Number:	2B4.5X2P

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Number:	2B4.5X2P	Transport Package:	Cartons
Function:	Reduce Vibration	Manufacturer:	GUOMAT
Bellows Type:	Double Convoluted	Maximum Diameter:	125 MM
Part Number:	W01-R58-4051	Material:	Rubber And Aluminum
Highlight:	Dunlop Double Convoluted Air Spring , Aluminum Plate Air Spring , 4 1/2X2 Air Spring

Dunlop Double Convoluted Air Spring 4 1/2X2 Rubber Bellow with Aluminum Plate

Product Description

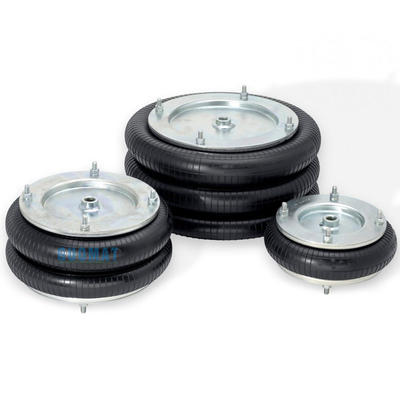

GUOMAT air springs are renowned for their exceptional durability, precise engineering, and cost-effectiveness, making them ideal for a broad range of actuation and vibration isolation applications. Featuring proven designs, fabric-reinforced Neoprene or Natural Rubber flex member construction, and corrosion-resistant end retainers, these air springs deliver unmatched quality and performance. We offer an extensive selection of air spring types to suit your specific actuation or isolation requirements. Options include Single, Double, and Triple Convoluted Bellows, Rolling Lobe, and Sleeve Types, all available in a variety of sizes with the compatible End Retainer Style for seamless installation.

Product Specification

GUOMAT NO.	Part Number	Max. Diameter (mm)	Min. Height (mm)	Max. Height (mm)	Full Stroke (mm)	Design Height (mm)	C to C Distance (mm)	Space Required (mm)
2B4.5×2P	4^1/2×2	125	65	145	80	100	93	140
2B6×2T	6×2	168	73	170	100	120	127	180
2B8×2T	8×2	230	72	225	153	150	156	240
2B9^1/4×2T	9^1/4×2	260	70	240	170	160	168	275
2B10×2T	10×2	280	70	240	170	160	181	295
2B12×2T	12×2	330	74	240	166	160	232	345
2B14^1/2×2T	14^1/2×2	395	70	280	210	180	283	410
2B16×2T	16×2	430	77	320	243	180	283	445

Precautions to Observe

Do not exceed stated stroke.
Do not inflate assembly when it is unrestricted.
Do not inflate beyond pressures stated without prior consultation with GUOMAT.
Respect maximum and minimum heights.
The bellows must be securely fixed.
Do not use without air pressure.

Flange Convoluted Rubber Bellows

Type	Max. Diameter	Minimum Height (mm)	Maximum Height (mm)	Total Stroke	Static Height (mm)	C to C Diameter	Space Required
41/2×1	125	45	90	45	65	93	140
6×1	168	58	108	50	80	127	180
8×1	230	47	120	73	90	156	240
10×1	280	50	135	85	95	181	295
12×1	330	50	145	95	95	232	345
141/2×1	395	47	165	118	105	283	410
41/2×2	125	65	145	80	100	93	140
6×2	168	73	170	100	120	127	180
8×2	230	72	225	153	150	156	240
91/4×2	260	70	240	170	160	168	275
10×2	280	70	240	170	160	181	295
12×2	330	74	240	166	160	232	345
141/2×2	395	70	280	210	180	283	410
16×2	430	77	320	243	180	283	445
41/2×3	125	100	200	100	145	93	140
6×3	168	105	225	150	180	127	180
10×3	280	100	365	265	235	181	295
12×3	330	100	430	330	222	232	345
141/2×3	395	100	476	376	280	283	410
16×3	430	125	500	375	280	283	445
