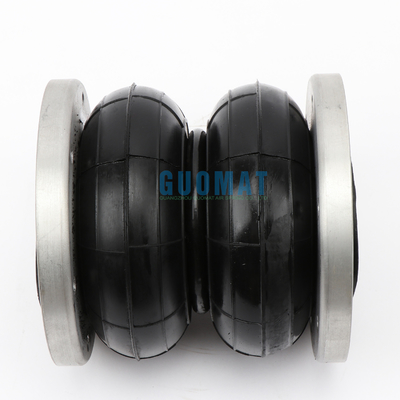

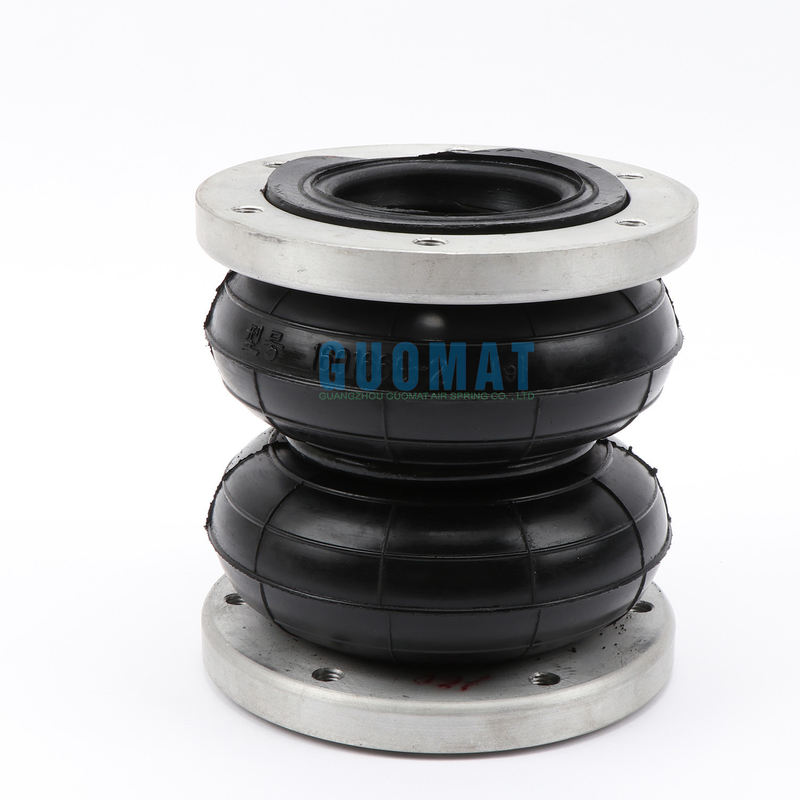

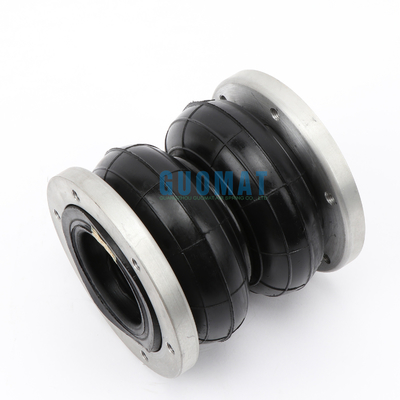

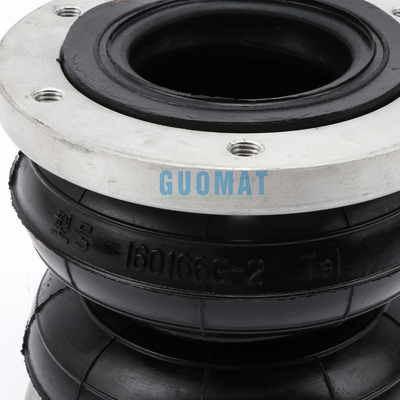

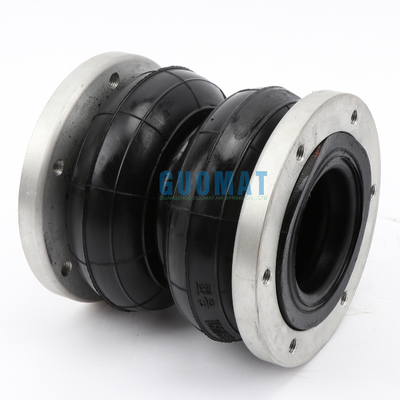

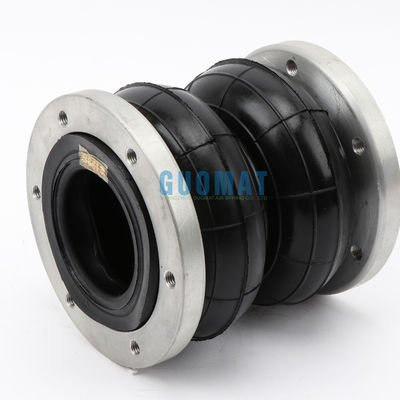

Guomat Industrial Air Spring 2H160166 Double Convoluted Rubber Bellow with Flange

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2H160166

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2H160166	Warranty:	One Year
Pressure Ability:	0.2-0.8 M PA	Bottom Flange Ring Dia:	140mm
Design Height:	166mm	Screw (Nut):	M8
Trademark:	GUOMAT	Shape:	Convoluted
Highlight:	2H160166 Industrial Air Spring , Rubber Bellow Industrial Air Spring

Guomat Industrial Air Spring 2H160166 Double Convoluted Rubber Bellow with Flange

Product Description

Air spring is a device that uses compressed air to achieve suspension and shock absorption. It is widely used in automobiles, trucks, trains, engineering machinery and other fields. Among them, stamped flange air spring, as an important type, has the advantages of simple structure, easy use and stable performance.

2H160166 Air Spring Data

Type Bellow Qty	Drift Diameter	Design OD	End OD	Design Height
2H160166	2100	160	112	166

Other kind of H Air Springs

Type Bellow Qty	Drift Diameter	Design OD	End OD	Design Height
H145077-1	1115	145	118	77
H150066-1	1104	150	88	66
H160166-2	2100	160	112	166
H160238-3	3100	160	112	238
H168132-2	2120	168	136	132
H200140-2	2150	200	132	140
H215112-1	1125	215	150	112
H235152-2	2180	235	145	152
H250170-2	2188	250	128	170
H250248-3	3188	250	128	248
H260120-1	1170	260	150	120
H280140-2	2230	280	200	140
H301165-2	2240	301	210	165
H320120-1	1230	320	182	120
H350255-2	2250	350	260	255
H360105-1	1290	360	220	105
H400203-2	2320	400	261	203
H400255-2	2300	400	310	255
