Norgren M/31123 Air Spring for Industrial Machine Steel 12"X3 Rubber Bellows

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	3B12×3T

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	3B12×3T	Brand:	GUOMAT
Max. Bellow Diameter:	300 MM	Static Height:	252 MM
OEM NO.:	FT 412-32 DS	Plate Width:	260 MM
Sample:	Available	Warranty:	12 Months
Highlight:	Norgren M/31123 Air Spring , Air Spring for Industrial Machine

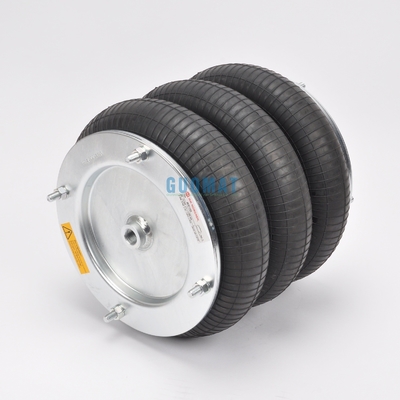

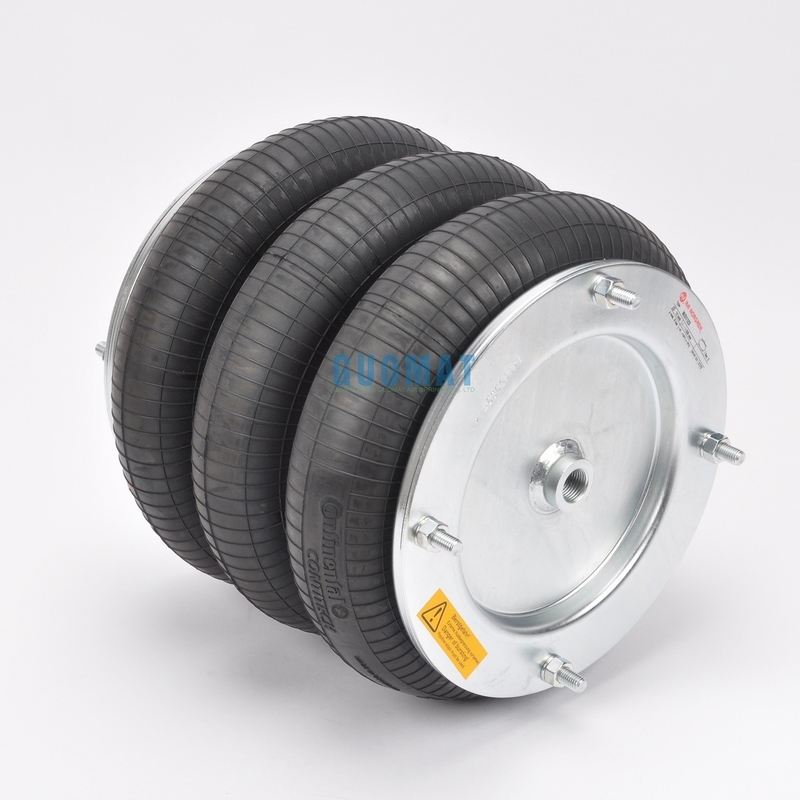

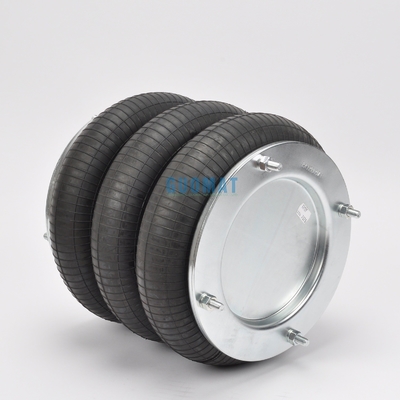

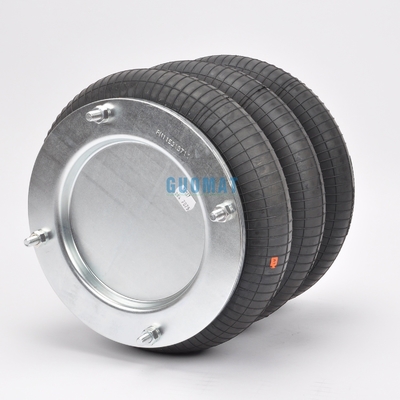

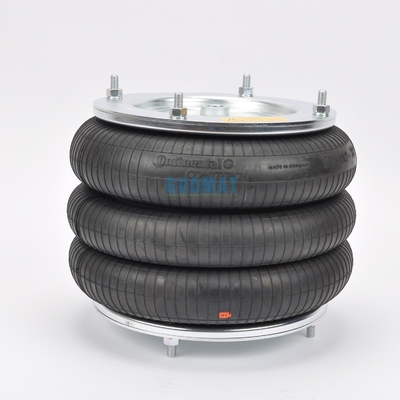

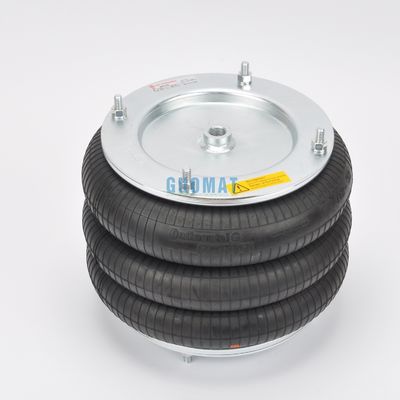

Norgren M/31123 Air Spring for Industrial Machine Steel 12"X3 Rubber Bellows

3B13×3T Technical Data

Cover Plate
Top Cover Plate Diameter: 260 mm
Screw Center Distance of Top Cover Plate: 232 mm
Bottom Cover Plate Diameter: 260 mm
Screw Center Distance of Bottom Cover Plate: 232 mm

Nut/Blind Nuts
Top Cover Plate Screw(Nut) Tooth: 4×M10
Bottom Cover Plate Screw(Nut) Tooth: 4×M10

Gas Hole/Air Inlet/Air Fitting
Air Hole: G 1/2

Rubber Bellow
Rubber Bellow Max. Diameter: 300 mm
Space Required: 325 mm
Natural Height: 252 mm

OEM Cross Reference

Norgren Part Number: M/31123

Norgren Part Number: M31123

Norgren Part Number: M 31123

Firestone Part Number: W01-R58-4062

Firestone Part Number: W01 R58 4062

Firestone Part Number: W01R584062

Dulop Part Number: 12''×3

Dulop Part Number: 12'×3

Dulop Part Number: 12×3

Dulop Part Number: SP1542

Dulop Part Number: SP 1542

Contitech Part Number: FT 412-32 DS

Contitech Part Number: FT412-32 DS

Contitech Part Number: FT41232 DS

Parker Part Number: 9109051

GUOMAT Air Spring Advantages

GUOAMT manufactures efficient, strong, and premium 1B5330 air springs for all your vehicle steering needs. Not only is it efficient in performance, it is also extremely durable, providing long-lasting quality without compromising its effectiveness.
These 3B12×3T air springs are made of high-quality materials, including metal, which ensures maximum stability, durability, and sustainability for demanding use, and is also equipped with the latest features for consistent, optimal performance. These products are certified and tested by regulatory boards to ensure safe use and superior quality.
When purchasing our products, you can also enjoy a host of after-sales services, including low-cost maintenance, installation guidance, and more. The GUOAMT air springs here are environmentally friendly, with features such as anti-corrosion and anti-rust, and have a longer service life.

We Produce Other Triple Convoluted Air Suspensions with Flange

GUOMAT NO.	Firestone	Dunlop Pneuride	Dunlop Springride	Contitech	Norgren	Parker
2 3/4''×3		2 3/4''×3	SP2910	FT 22-6 DI		9109010
3B4.5×3T	W01R584035	4 1/2''×3	SP2895	FT 44-15 DI	PM/31043	9109402
3B6×3T(AI)		6''×3(Al)	SP2923	FT 76-20 DS	PM/31063	9109007A
3B6×3T(Steel)	W01R584095	6''×3(Steel)	SP2861	FT 138-26 DS	M/31063	9109007
3B8×3T	W01R584056	8''×3	SP2863	FT 138-26 DS	M/31083	9109017
3B10×3T	W01R584059	10''×3	SP1539	FT 210-32 DS	M/31103	9109031
3B12×3T	W01R584062	12''×3	SP1542	FT 412-32 DS	M/31123	9109051
3B14.5×3T	W01R584065	14 1/2''×3	SP1558	FT 614-36 DS	M/31143	9109069
3B16×3T	W01R584068	16''×3	SP2141	FT 816-40 DS	M/31163	9109177
