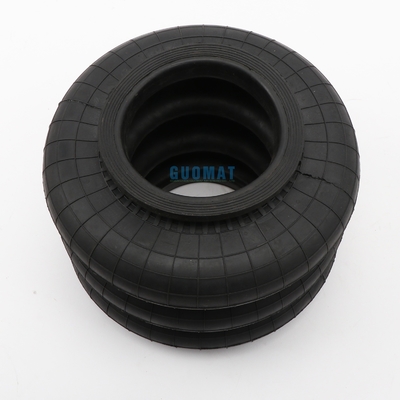

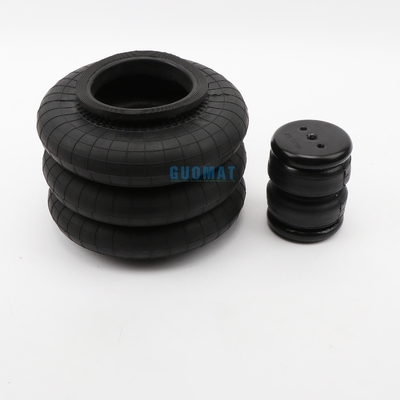

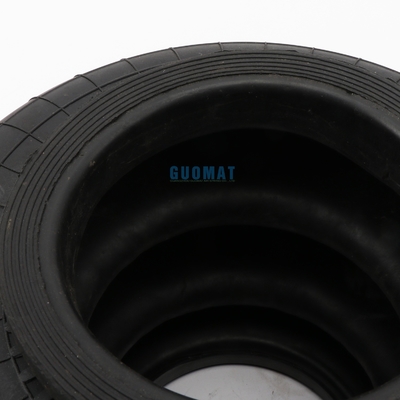

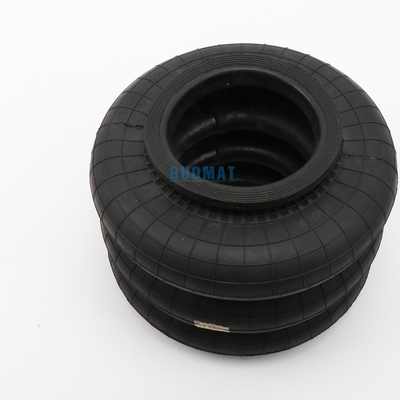

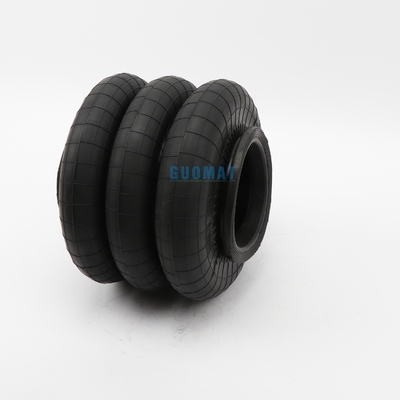

Dunlop Industrial Air Rubber Spring 10''X3 Phoenix SP1539 Triple Convoluted Bellow

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	3B10X3

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Number:	3B10X3	Pressure Ability:	0.2-0.8 M PA
Bellows Diameter:	254 Mm	Bellows Type:	Triple Convoluted
Hoop:	Yes	Sample:	Available
OEM NO.:	FT 210-32DS	Fitment Type:	Direct Replacement
Highlight:	Phoenix SP1539 Industrial Air Rubber Spring , Dunlop Industrial Air Rubber Spring , Industrial Air Rubber Spring

Dunlop Industrial Air Rubber Spring 10''X3 Phoenix SP1539 Triple Convoluted Bellow

Product Description

Carefully designed curled air actuators to meet diverse industrial needs. Our curled air actuators are carefully designed to provide excellent performance and outstanding versatility. At its core is a sturdy crimping assembly that greatly improves strength and durability. The bellows made of natural rubber is known for its excellent dynamic capabilities and superior general performance, enabling the actuator to perform well under various operating conditions. At the same time, both the top and bottom plates are crimped and zinc-plated, which provides excellent corrosion resistance and ensures that the equipment can maintain high-quality performance for a long time. With unique dynamic performance, excellent adaptability and excellent durability, our curled air actuators are a reliable choice to meet various industrial needs.

Product Details

Rubber Bellows

In 0.7 M pa, Rubber Bellows Diameter : 256 mm

Rubber Bellows Natural Height :230 mm

Bumper block / Buffer block

Without Bumper Block

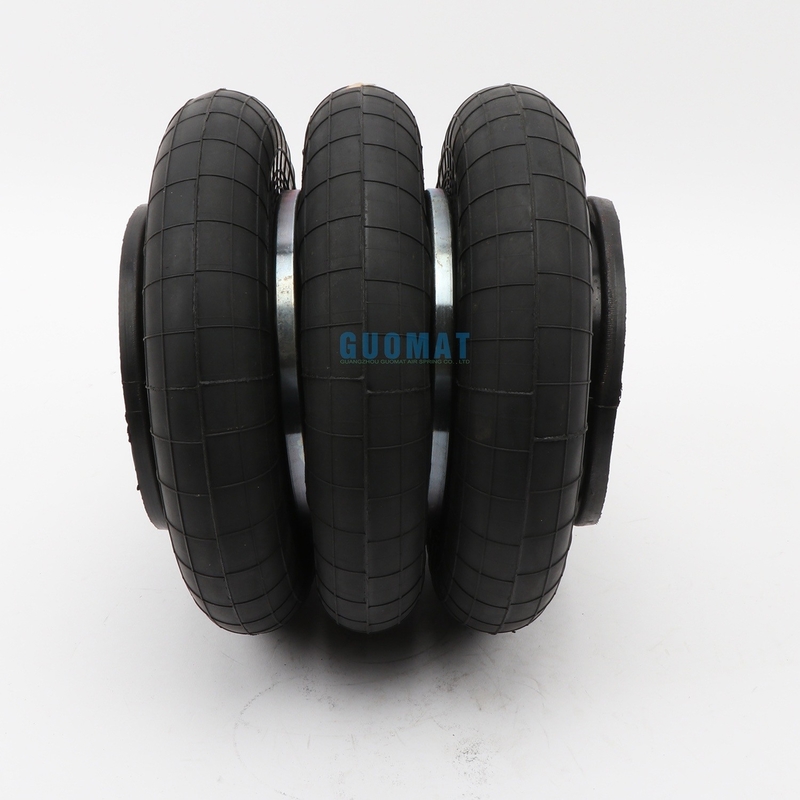

Girdle Hoop / Girdle Ring

With 2 Girdle Hoop

Technical Data

Pneumatic applications - static characteristics
Force F [kN]

Pressure p [bar]		3	4	5	6	7	8	Vol. V [l]
Height H [mm]	350	5,62	7,66	9,75	11,8	14	16,3	11
	300	7,1	9,56	12	14,5	17,1	19,8	9,5
	250	8,62	11,6	14,6	17,6	20,7	24	8,2
	200	10,3	13,8	17,3	20,8	24,4	28,3	6,6
	150	12,1	16,1	20,1	24,2	28,3	32,6	4,7

Cross Part Number

Manufacturer:	Complete Numbers
Airkraft	115056
Contitech	FT 210-32DS FT 210 32DS FT21032DS
Dunlop	SP1539(10X3) SP1539 10X3
Weforma	WBD-G450 WBD G450
Stroke	230mm
Condition	New

We Also Have Other Type Air Springs

Flange connection type of air spring model comparison table
GUOMAT NO.	Contitech NO.	GUOMAT NO.	Contitech NO.
FS22-3DICR	FS 22-3 DI CR	FS960-12RS	FS 960-12 RS
FS44-5DICR	FS 44-5 DI CR	FS1330-11RS	FS 1330-11 RS
FS76-7DICR	FS 76-7 DI CR	FS1710-12RS	FS 1710-12 RS
FS76-7DSCR	FS 76-7 DS CR	FS2870-16RS	FS 2870-16 RS
FS138-8DS	FS 138-8 DS	FS5450-16RS	FS 5450-16 RS
FS210-10DS	FS 210-10 DS	FD960-22RS	FD 960-22 RS
FS412-10DS	FS 412-10 DS	FD1120-30RI	FD 1120-30 RI
FS614-13DS	FS 614-13 DS	FD1330-25RS	FD 1330-25 RS
FS816-15DS	FS 816-15 DS	FD1710-25RS	FD 1710-25 RS
FD22-4DICR	FD 22-4 DI CR	FD1730-40RI	FD 1730-40 RI
FD44-10DICR	FD 44-10 DI CR	FD2380-24RS	FD 2380-24 RS
FD76-14DICR	FD 76-14 DI CR	FD2470-40RI	FD 2470-40 RI
FD76-14DSCR	FD 76-14 DS CR	FD2870-30RS	FD 2870-30 RS
FD138-18DS	FD 138-18 DS	FD5450-28RS	FD 5450-28 RS
FD209-21DS	FD 209-21 DS	FT960-34RS	FT 960-34 RS
FD210-22DS	FD 210-22 DS	FT1330-35RS	FT 1330-35 RS
FD412-18DS	FD 412-18 DS	FT1710-38RS	FT 1710-38 RS
FD614-26DS	FD 614-26 DS	FT2870-45RS	FT 2870-45 RS
FD816-30DS	FD 816-30 DS	FT5450-44RS	FT 5450-44 RS
FT22-6DICR	FT 22-6 DI CR
FT44-15DICR	FT 44-15 DI CR
FT76-20DICR	FT 76-20 DI CR
FT76-20DSCR	FT 76-20 DS CR
FT138-26DS	FT 138-26 DS
FT210-32DS	FT 210-32 DS
FT412-32DS	FT 412-32 DS
FT614-36DS	FT 614-36 DS
FT816-40DS	FT 816-40 DS
