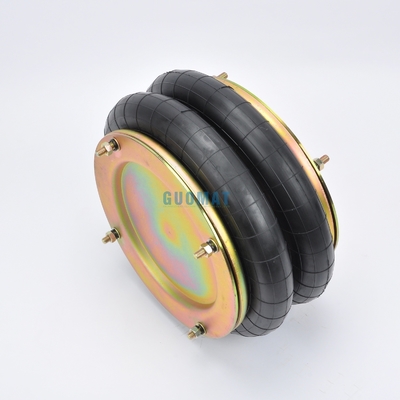

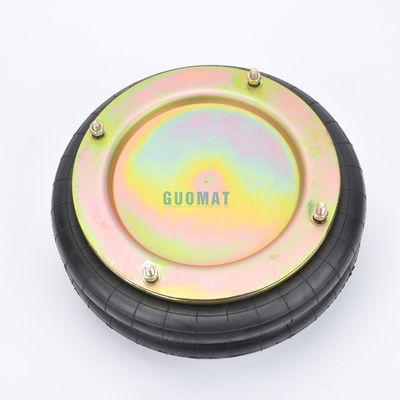

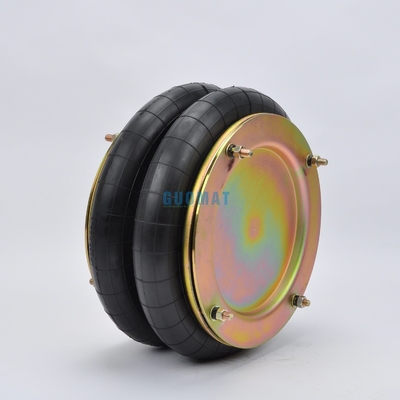

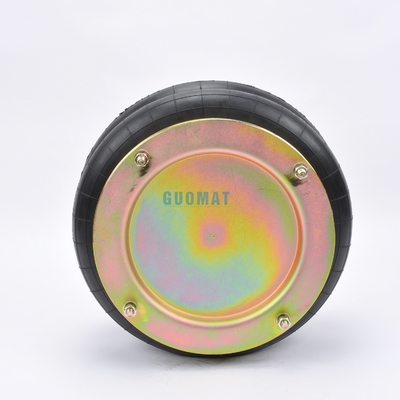

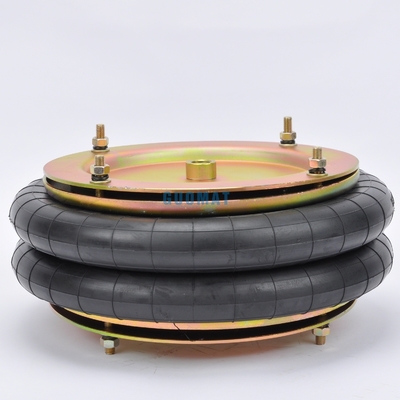

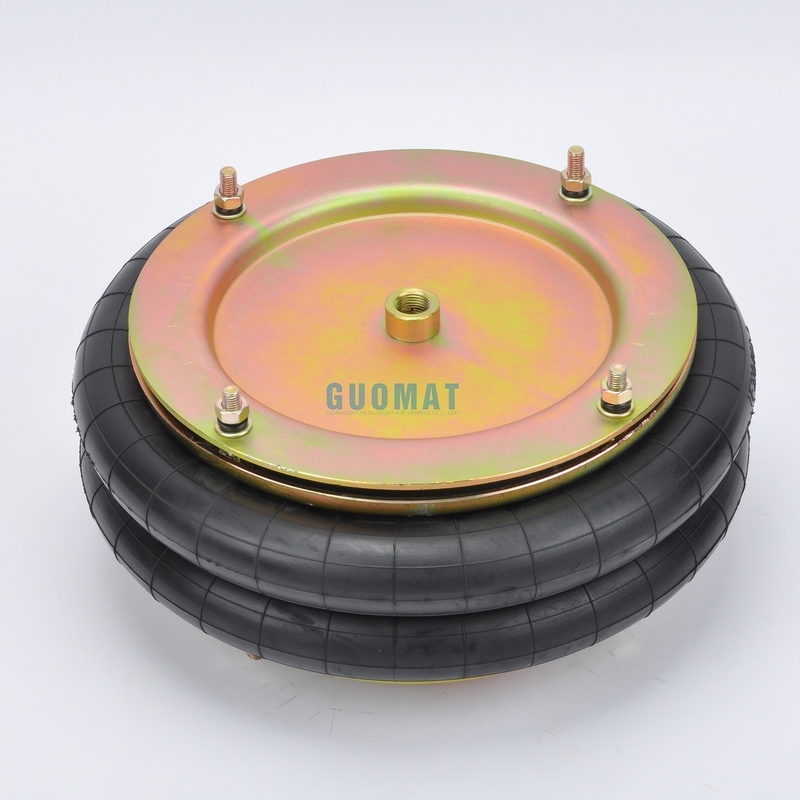

16"X2 Industrial Air Spring Shocks GUOMAT NO. FL320166-2 With MAX diameter 430 mm

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	FL320166-2

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD99.9-139.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

N.W.:	8.5 Kg	Warranty:	One Year
Pressure Ability:	0.2-0.8 M PA	Other OEM:	16"X2
Bottom Plate Dia:	310 Mm	Bumper:	Without
Usage:	Industrial	Load Type:	Compression
Production Process:	Vulcanization	Shape:	Convoluted
Highlight:	16”X2 Industrial Air Spring , 430 mm Industrial Air Spring , GUOMAT Industrial Air Spring

16"X2 Industrial Air Spring Shocks GUOMAT NO. FL320166-2 With MAX diameter 430 mm

16X2 Data:

16X2 AIRSPRING
LOBES: 2
ø MAX: 430
STATIC HEIGHT: 180 MM
TOTAL STROKE: 243 MM
MAX ANGLE: 15º
MAX AXIAL OFFSET: 10 mm
øC: 283
ø SPACE ENVELOPES: 445 MM
LOAD IN daN: 9
MAX WORK PRESSURE: 8 BAR
BURST PRESSURE: 25 BAR
WEIGHT: 6.12 LBS

DIMENSIONS: 16" X 16" X 4"

Nut/ Blind Nut

Top cover screw (nut) teeth: 4x M10
Top cover screw center distance: 282 mm
Bottom cover screw (nut) teeth: 4x M10
Bottom cover screw center distance: 282 mm

air hole / air inlet / air connector
Air vent / air inlet: G1 / 2

cover plate

Top cover diameter (width): 310MM
Bottom cover diameter (width): 310MM

Rubber bellows

Rubber bellows MAX diameter: 430 mm
Working stroke: 77 MM- 320 MM
Maximum height: 320 MM
Minimum height (compression height): 77 mm
Stroke height: 155 mm
bumper block / buffer block
No Bumper Block
Twisted waist/waist ring
Belt hoop: a band loop

FL320166-2 Air Spring Cross Reference Number

Firestone	W01R584067 , W01-R58-4067 , W01 R58 4067
Firestone	WO1R584067 , WO1-R58-4067 , WO1 R58 4067
Contitech	FD 816-30 DS , FD 816-30 , FD816-30 DS
Norgren	M/31162 , M31162 , M 31162
Dunlop	SP1557 , SP 1557 , 16X2 , 16''X2

FD816-30 DS Contitech Air Spring Shock

Type	Order No.
Rubber bellows only
With dismountable plates,G1/2 air inlet

Pneumatic Application – Static Characteristic Values

Force F [kN]

Pressure p	[bar]	3	4	5	6	7	8	Vol. V [l]
Height H [mm]	350	12.6	17	21.9	26.5	31.5		30
	300	17.6	23.9	29.9	36	42.4	48.7	27
	250	21.5	28.9	36.2	43.3	51	58.4	24
	200	25.5	34.4	43	51.4	60.5	69.3	19
	150	29.2	39.2	49	58.5	68.7	78.5	15
	100	31.2	41.8	52.3	62.2	73	83.3	11
