| Place of Origin: | Guangzhou,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 3B10X3 |
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | USD99.9-129.9/PC |
| Packaging Details: | Strong Carton Box or as Customers Requirement |
| Delivery Time: | 3-7 Working Days |
| Payment Terms: | L/C, T/T, Western Union Or Others |
| Supply Ability: | 1000PCS/Week |
| Pressure Ability: | 0.2-0.8 M PA | Air Inlet: | 1/4 NPT |
|---|---|---|---|
| Top Plate Hole/Stud: | 4 | Bellows Dia: | 330 Mm |
| HS Code: | 8708809000 | Material: | Rubber And Iron |
| N.W.: | 1.5 Kg | Warranty: | One Year |

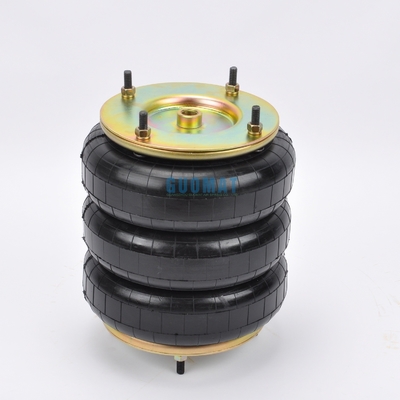

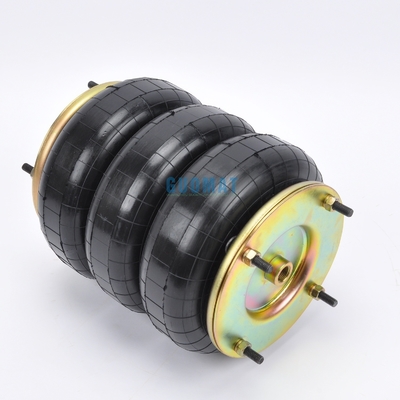

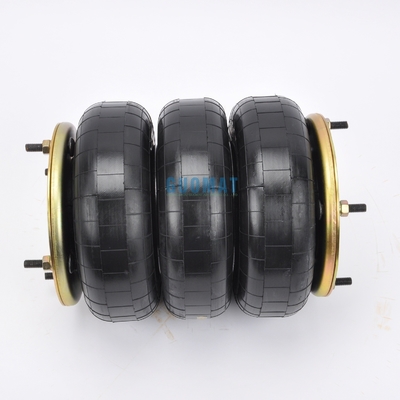

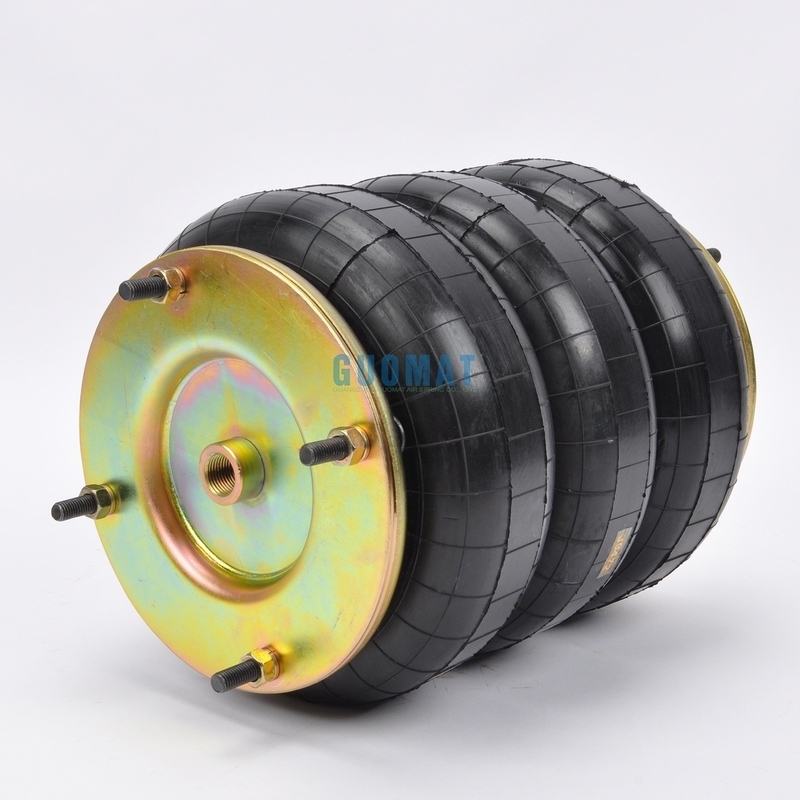

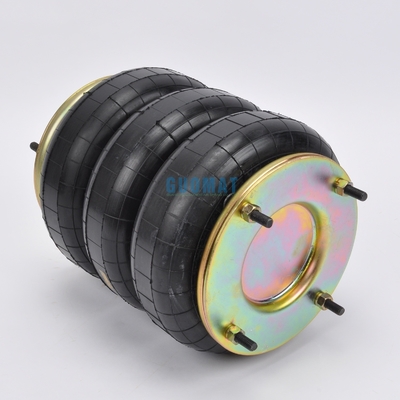

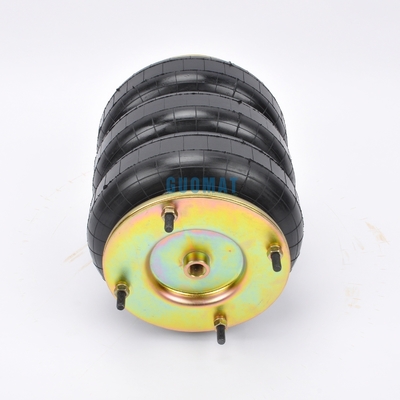

M/31103 Norgren Air Spring Stroke Length 330 mm Port G1/2 Nominal diameter 10" Triple convolutions Air Bellows
| Manufacturer: | Complete Numbers |
| GUOMAT NO. Norgren Norgren Airkraft: |
3B10X3 M/31103 10"X3 115056 |
| Contitech: | FT 210-32DS FT 210 32DS FT21032DS |
| Dunlop: | SP1539(10X3) SP1539 10X3 |
| Weforma: | WBD-G450 WBD G450 |
| Stroke: | 230mm |
| Condition: | New |
OEM Original Equipment Manufacturer:
Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4pcs X M10
Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M10
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/2
Cover Plate
Top Cover Plate Diameter (Width): 260 mm
Bottom Cover Plate Diameter (Width): 260 mm
Material top and bottom plate:Steel
Rubber Bellows
Stroke of Rubber Bellows:330 mm
Bumper block / Buffer block
Without Bumper Block
Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Rubber material Standard up to 70°C natural rubber
Pneumatic applications - static characteristics
Force F [kN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] | |
| Height H [mm] | 350 | 5,62 | 7,66 | 9,75 | 11,8 | 14 | 16,3 | 11 |
| 300 | 7,1 | 9,56 | 12 | 14,5 | 17,1 | 19,8 | 9,5 | |
| 250 | 8,62 | 11,6 | 14,6 | 17,6 | 20,7 | 24 | 8,2 | |
| 200 | 10,3 | 13,8 | 17,3 | 20,8 | 24,4 | 28,3 | 6,6 | |
| 150 | 12,1 | 16,1 | 20,1 | 24,2 | 28,3 | 32,6 | 4,7 |
Working principle of air spring:
Thus, in the effective stroke of the air spring, the height of the air spring, the volume of the inner cavity, and the load carrying capacity are smoothly controlled by the flexible transmission, the amplitude and the vibration load with the increase and decrease of the vibration load. It is also possible to adjust the stiffness and bearing capacity of the spring by increasing or decreasing the amount of inflation, and an auxiliary air chamber can be attached to achieve self-control adjustment.
| Flange connection type of air spring model comparison table | |||
| GUOMAT NO. | Contitech NO. | GUOMAT NO. | Contitech NO. |
| FS22-3DICR | FS 22-3 DI CR | FS960-12RS | FS 960-12 RS |
| FS44-5DICR | FS 44-5 DI CR | FS1330-11RS | FS 1330-11 RS |
| FS76-7DICR | FS 76-7 DI CR | FS1710-12RS | FS 1710-12 RS |
| FS76-7DSCR | FS 76-7 DS CR | FS2870-16RS | FS 2870-16 RS |
| FS138-8DS | FS 138-8 DS | FS5450-16RS | FS 5450-16 RS |
| FS210-10DS | FS 210-10 DS | FD960-22RS | FD 960-22 RS |
| FS412-10DS | FS 412-10 DS | FD1120-30RI | FD 1120-30 RI |
| FS614-13DS | FS 614-13 DS | FD1330-25RS | FD 1330-25 RS |
| FS816-15DS | FS 816-15 DS | FD1710-25RS | FD 1710-25 RS |
| FD22-4DICR | FD 22-4 DI CR | FD1730-40RI | FD 1730-40 RI |
| FD44-10DICR | FD 44-10 DI CR | FD2380-24RS | FD 2380-24 RS |
| FD76-14DICR | FD 76-14 DI CR | FD2470-40RI | FD 2470-40 RI |
| FD76-14DSCR | FD 76-14 DS CR | FD2870-30RS | FD 2870-30 RS |
| FD138-18DS | FD 138-18 DS | FD5450-28RS | FD 5450-28 RS |
| FD209-21DS | FD 209-21 DS | FT960-34RS | FT 960-34 RS |
| FD210-22DS | FD 210-22 DS | FT1330-35RS | FT 1330-35 RS |
| FD412-18DS | FD 412-18 DS | FT1710-38RS | FT 1710-38 RS |
| FD614-26DS | FD 614-26 DS | FT2870-45RS | FT 2870-45 RS |
| FD816-30DS | FD 816-30 DS | FT5450-44RS | FT 5450-44 RS |
| FT22-6DICR | FT 22-6 DI CR | ||
| FT44-15DICR | FT 44-15 DI CR | ||
| FT76-20DICR | FT 76-20 DI CR | ||
| FT76-20DSCR | FT 76-20 DS CR | ||
| FT138-26DS | FT 138-26 DS | ||
| FT210-32DS | FT 210-32 DS | ||
| FT412-32DS | FT 412-32 DS | ||
| FT614-36DS | FT 614-36 DS | ||
| FT816-40DS | FT 816-40 DS | ||
