Single Rubber Convoluted 280126H-1 Air Rubber Bellow for Controlling Vibration

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	280126H-1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	280126H-1	Fuction:	Reduce Shock
Specification:	Rubber	Trademark:	GUOMAT
Warranty:	1 Year	Customized:	Non-Customized
Type:	Industrial Air Spring	Quality:	100 % Tested
Highlight:	280126H-1 Air Rubber Bellow , Single Rubber Convoluted Air Rubber Bellow

Single Rubber Convoluted 280126H-1 Air Rubber Bellow for Controlling Vibration

280126H-1 Specification

Top Cover Plate Screw (Nut) Tooth : 10×M10

Bottom Cover Plate Screw (Nut) Tooth :10×M10

Gas Hole / Air inlet : G1/2

Top Cover Plate Diameter: 220mm

Bottom Cover Plate Diameter: 220mm

Rubber Bellows Natural Diameter : 285 mm

Rubber Bellows Natural Diameter: 132 mm

Without Bumper Block

Without Girdle Hoop

Product Technical Datas

Bearing load Power (kg)	Inflation pressure	0.2MPa	0.3MPa	0.4MPa	0.5MPa	0.6MPa	0.7MPa	0.8MPa	0.7MPa Volume(dm³)
	Installation height								0.7MPa Volume(dm³)
	58(mm)	1084	1616	2167	2699	3249	3799	4323	2.08
	76(mm)	998	1506	2023	2530	3054	3563	4070	3.01
	94(mm)	888	1332	1796	2242	2716	3164	3641	3.90
	112(mm)	724	1095	1501	1867	2274	2658	3081	4.71
	126(mm)	643	985	1333	1662	2017	2374	2748	5.28
	145(mm)	475	731	998	1270	1543	1829	2129	5.94
	166(mm)	266	433	616	799	1000	1200	1433	6.16
Stiffness and frequency at design height	Vertical stiffness(Kg/cm)	186	264	336	408	492	575	660
Stiffness and frequency at design height	Natural frequency Hz	2.69	2.59	2.51	2.48	2.47	2.46	2.45
Stiffness and frequency at design height	Natural frequency cpm	161	155	151	149	148	148	147

Product Applications

Centrifugal separators
Large drying machines
Vibratory conveyors
Electronic equipment
Compressors
Conveyor loading points
Textile looms
Rotary shaft actuators
Conveyor or transfer systems
Vertical lift force for platforms and rotating tables
Injection or ejection of parts in manufacturing equipment
Scissor lifts
Clutch and brake systems

Other Convoluted Air Shock Assembly

Model Size	Nominal diameter	The largest diameter(0.7MPA)	Bearing capacity at design height			Natural frequency(0.7MPA)	Stroke		Weight
Model Size	Nominal diameter	The largest diameter(0.7MPA)	0.2MPA	0.5MPA	0.7MPA	Natural frequency(0.7MPA)	Minimum compression height	Height of safe elongation	Weight
086060H-1	50	110	44	123	175	5.18	42	90	1
120060H-1	80	130	122	313	444	3.79	42	65	1.6
150076H-1	104	160	164	435	621	3.5	46	85	1.4
188102H-1A	120	210	208	587	862	3.05	52	115	2.25
215120H-1	125	233	294	768	1109	2.83	42	140	2.9
235118H-1	180	260	474	1185	1684	2.52	60	136	2.6
235150H-1	180	260	441	1205	1740	2.29	65	172	3.1
260135H-1	170	290	425	1150	1670	2.4	55	155	2.95
280126H-1	195	300	643	1662	2370	2.46	50	144	3.75
320124H-1	230	340	798	2071	2965	2.28	52	142	3.9
130142H-2	80	150	80	219	314	3.12	72	162	4.4
156130H-2	118	170					70	146	3.15
160166H-2	100	175	149	413	593	2.3	82	190	2.35
168132H-2	120	185	229	589	832	2.53	72	151	2.2
200142H-2	150	220	326	843	1195	2.02	78	162	3.05
220200H-2	148	250	354	920	1310	1.89	90	229	3.22
230214H-2	150	255	388	1023	1457	1.93	88	246	4.05
235152H-2	180	250	461	1180	1667	1.91	80	174	3.25
235210H-2	180	250					80	245
250180H-2	185	270	520	1345	1904	1.74	84	206	3.95
252163H-2	192	275	422	1142	1644	1.73	82	238	4.2
260230H-2	170	290	374	1036	1506	1.78	90	263	4.85
280214H-2	200	305	668	1741	2480	1.68	88	246	5.57
290265H-2	205	320	440	1250	1800	1.19	90	303	6.55
300170H-2	240	320	849	2156	3045	1.74	85	195	5.35
310214H-2	230	330	813	2078	2992	1.89	88	245	7
330214H-2	250	355	1064	2749	3897	1.65	88	246	7.75
330254H-2	230	355	861	2222	3166	1.75	88	290	7.24
350255H-2	250	380	1095	2851	4098	1.45	90	295	8.2
360214H-2	280	380	1250	3220	4570	1.36	88	246	7.9
380221H-2	300	405	1432	3765	5352	1.34	90	255	8.5
400217H-2	320	430	1753	4450	6300	1.66	90	249	11.1
400255H-2	300	430	1465	3752	5256	1.55	90	295	10.4
430255H-2	330	460	1760	4526	6427	1.43	90	295	10.2
480217H-2	400	510	2723	6850	9700	1.27	88	249	13.8
520217H-2	440	550	3070	7850	11094	1.41	90	249	14.5
580214H-2	500	600	3978	10137	14293	1.65	88	246	13.3
630262H-2	530	660	4371	10585	15801	1.48	90	300	19.9
680262H-2	580	710	5278	13596	19313	1.35	90	302	18.6
200206H-3	150	220	229	634	888	1.68	116	236	3.75
250260H-3	185	270	507	1344	1924	1.7	116	299	5.5
255230H-3	200	280	566	1460	2070	1.3	116	264	5.55
255322H-3	200	290					116	400	5.85
310306H-3	230	330	861	2239	3170	1.3	120	354	7.3
330306H-3	250	355	1035	2730	3892	1.4	120	354	8.69
360306H-3	280	380	1250	3220	4570	1.3	122	360	8.25
380316H-3	300	405	1401	3672	5235	1.32	122	370	10.95
400312H-3	320	430	1724	4436	6308	1.19	122	360	11.8
430370H-3	330	460	1716	4435	6333	1.20	122	430	13.8
480312H-3	400	510	2650	6883	9768	1.17	122	360	16.5
520312H-3	400	550	3046	7932	11262	1.32	122	360	20.1
580306H-3	500	600	3950	10181	14409	1.22	118	354	19.16
630376H-3	530	660	4243	11045	45612	0.94	122	436	24.1
680376H-3	580	710	5259	13620	19339	1.27	122	436	27.6

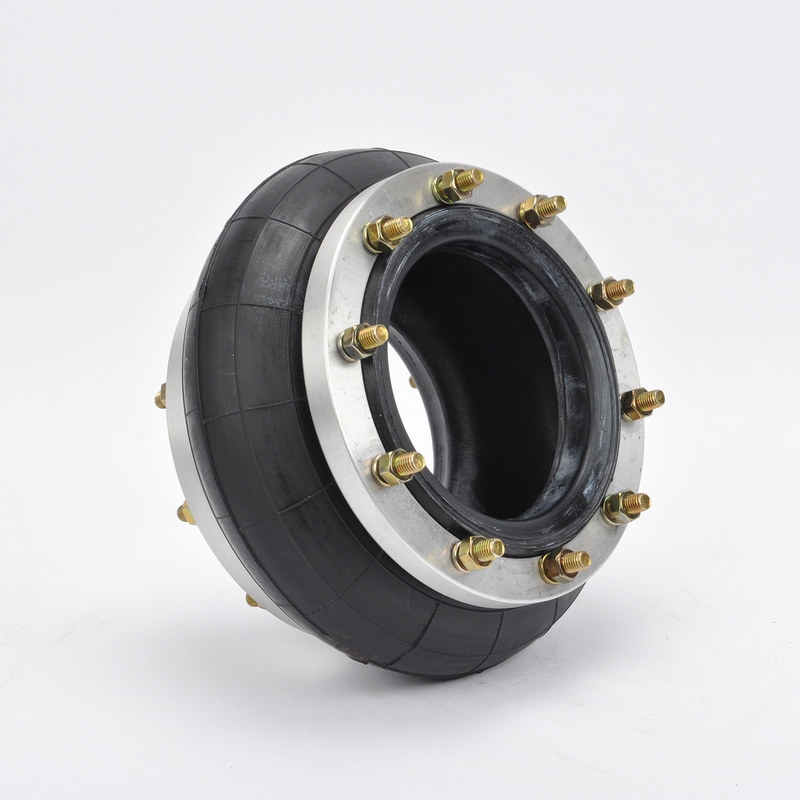

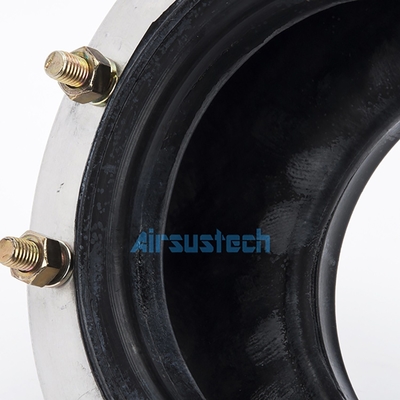

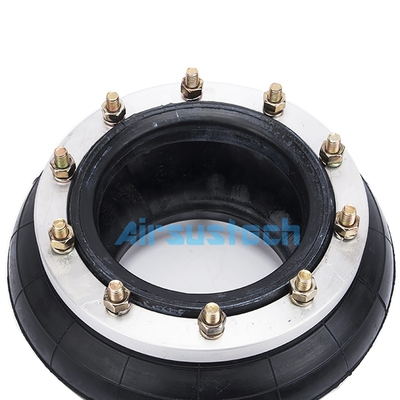

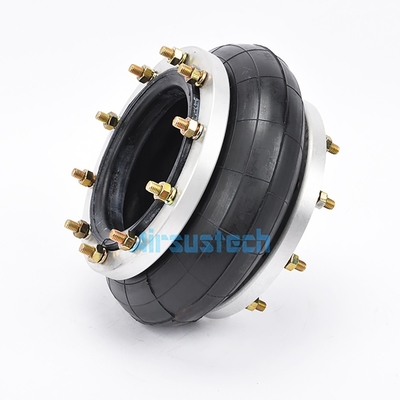

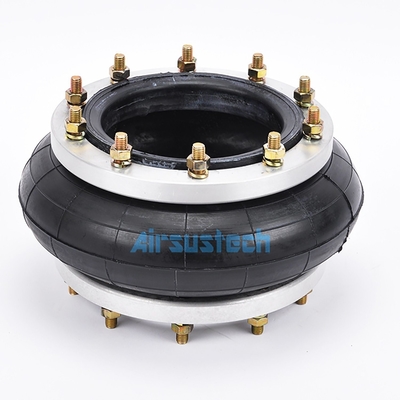

The related picture of 280126H-1

Single Rubber Convoluted 280126H-1 Air Rubber Bellow for Controlling Vibration 0

Company Profile

Guangzhou Guomat air spring Co., Ltd. was established in 2008 and is located in Guangzhou, the capital city of Guangdong Province. The company's production plant covers an area of 20,000 square meters and is located in Taihe Town, Baiyun District, Guangzhou City. With the continuous development of the company, it is gradually equipped with modern workshops and advanced rubber air spring equipment. It is one of the important air spring production bases in China. At the same time, Gomart used domestic advanced air spring processing equipment and introduced foreign air spring production technology, combined with the company's unique production process, and strictly implemented production in accordance with international standards to produce advanced products. All products comply with ISO9001, ISO/IS16949 standards.

The main products of Guangzhou Guomat air spring Co., Ltd. are: rubber air springs, air suspension springs, rubber air springs for automobiles, airbags for passenger cars and trucks, industrial air springs, etc. The products cover buses, luxury cars, trucks, Commercial vehicles, rail vehicles, industrial machinery, industrial equipment and other industries. The company has hundreds of models and styles of products. At the same time, it can also carry out directional transformation and design of products according to the special needs of users, providing users with one-stop service.

Single Rubber Convoluted 280126H-1 Air Rubber Bellow for Controlling Vibration 1

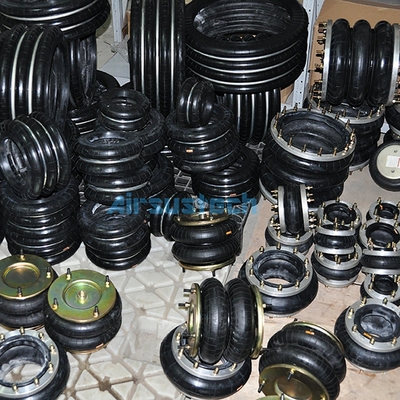

Factory workshop
