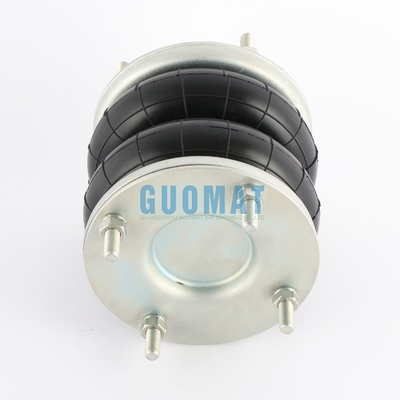

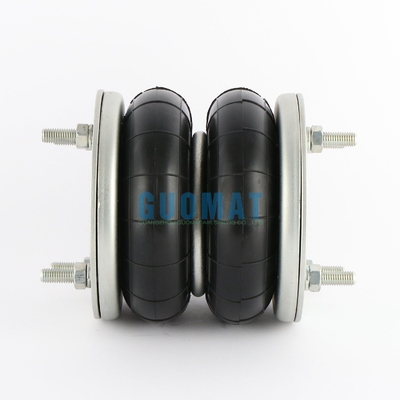

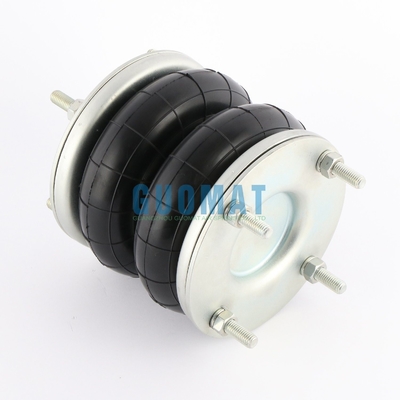

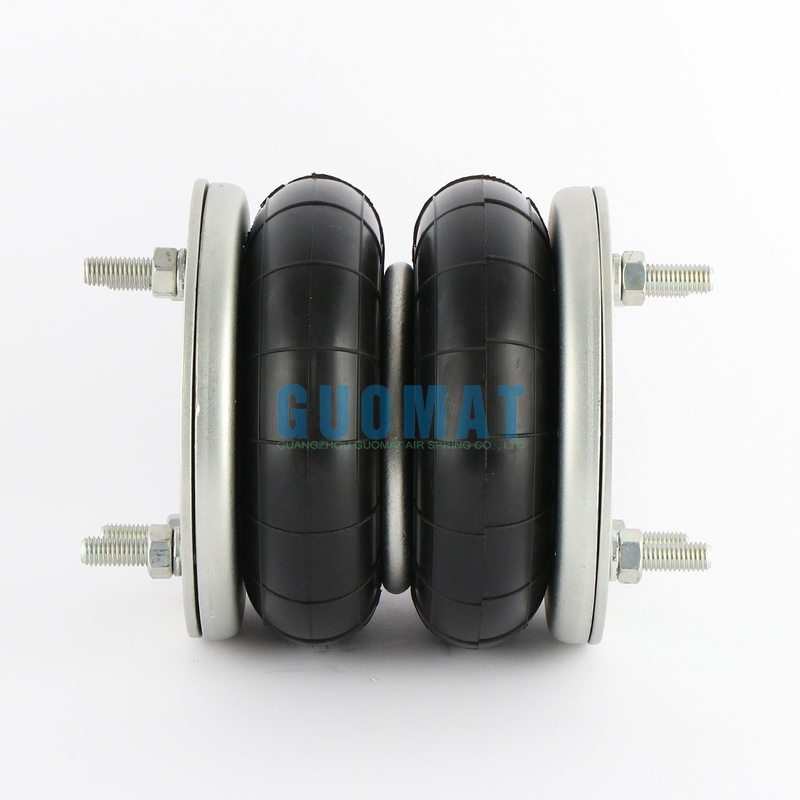

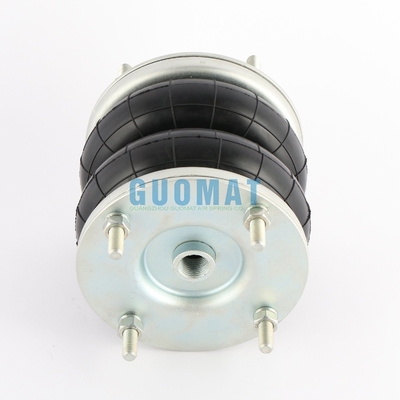

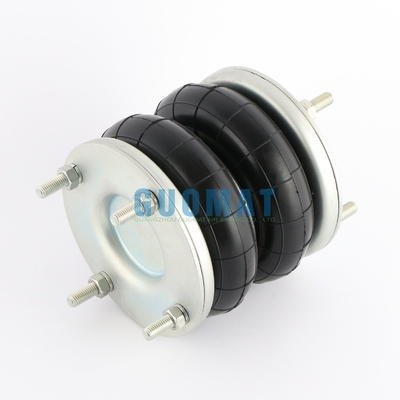

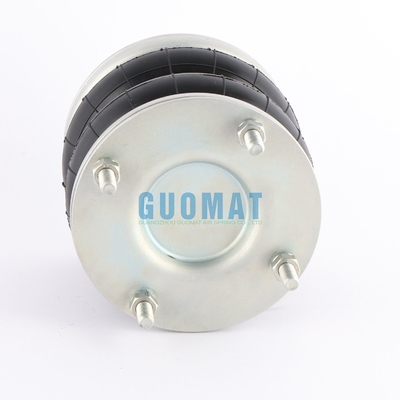

Total Stroke 97MM FireStone W01-R58-4053 Convoluted Pneumatic Air Rubber Bellow

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B6X2T

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2B6X2T	Structure:	Double Convoluted
OEM Number:	W01-R58-4053	Dunlop:	SP1482
Quality:	100% Tested	Trademark:	GUOMAT
After-sales Service:	12 Months	Air Hole:	G1/2
Highlight:	Pneumatic Air Rubber Bellow , W01-R58-4053 Pneumatic Air Rubber Bellow

Total Stroke 97MM FireStone W01-R58-4053 Convoluted Pneumatic Air Rubber Bellow

Product Details

Maximum Diameter: 168 mm

Space Required: 180 mm

Minimum Height: 73 mm

Maximum Height: 170 mm

Total Stroke: 97 mm

Design Height: 120 mm

Effective Area at Static Height: 140 cm²

Bellows Weight: 2.25 kg

OEM Number

Firestone NO.: W01-R58-4053

Firestone NO.: W01 R58 4053

Firestone NO.: W01R584053
Dunlop Pneuride NO.: 6" x 2 (Steel)

Dunlop Pneuride NO.: 6' x 2 (Steel)

Dunlop Pneuride NO.: 6 x 2 (Steel)
Dunlop Springride NO.: SP1482

Dunlop Springride NO.: SP 1482
Contitech NO.: FD76-14 DS

Contitech NO.: FD 76-14 DS

Contitech NO.: FD7614 DS
Norgren NO.: M/31062

Norgren NO.: M31062

Norgren NO.: M 31062
Parker NO.: 9109001

The Must be Enough Clearance Around The Air Bellow

The full surface of the metal parts is to be used to bear the forces.
Air bellows must be equipped with lateral guides.
Deflate the air bellows fully before removing.
Ensure that the bellows is not constantly in contact with hydraulic oil, lubricants, solvents, metal cuttings and weldin sparks.
Should the air bellow be subjected to special media in an application, ask Precision Engineering for further information, specifying the medium, temperature and concentration.

Other Type Flange Air Springs

GUOMAT NO.	Firestone	Dunlop Pneuride	Dunlop Springride	Contitech	Norgren	Parker
2 3/4''×2		2 3/4''×2	SP2904	FD 22-4 DI		9109009
2B4.5×2	W01R584051	4 1/2''×2	SP2441	FD 44-10 DI	PM/31042	9109401
2B4.5×2-E
2B6×2T(AI)	W01R584070	6''×(AI)	SP2917	FD 76-14 DI	PM/31062	9109001A
2B6×2T(Steel)	W01R584053	6''×2(Steel)	SP1482	FD 76-14 DS	M/31062	9109001
2B8×2T	W01R584055	8''×2	SP1490	FD 138-18 DS	M/31082	9109011
2B10×2T	W01R584058	10''×2	SP1538	FD 210-22 DS	M/31102	9109021
2B12×2T	W01R584061	12''×2	SP1541	FD 412-22 DS	M/31122	9109041
2B12''×2-E	W01R584039	12''×2 Extend	SP2782NB
2B14 1/2''×2T	W01R584064	14'' 1/2×2	SP1556	FD 614-26 DS	M/31142	9109061
2B16×2T	W01R584067	16''×2	SP1557	FD 816-30 DS	M/31162	9109171
2B21 1/2''×2T		21 1/2''×2	SP1408		M/31212	9109153
2B26''×2T		26''×2	SP2342		M/31262	9109159
