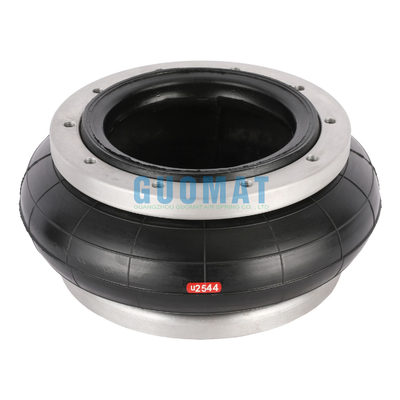

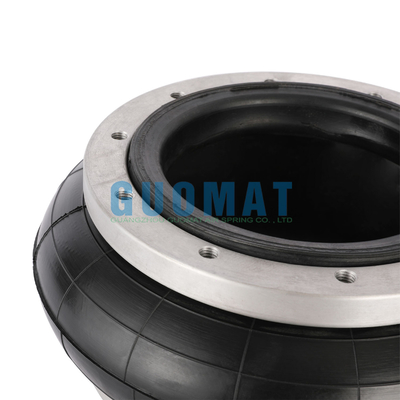

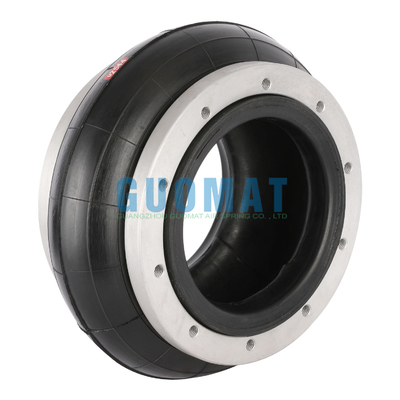

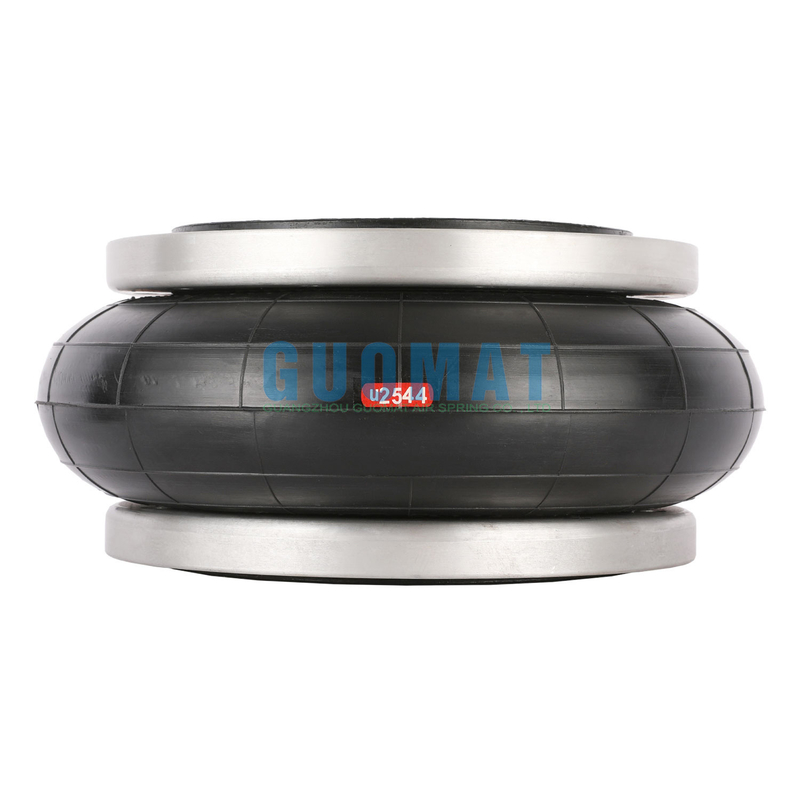

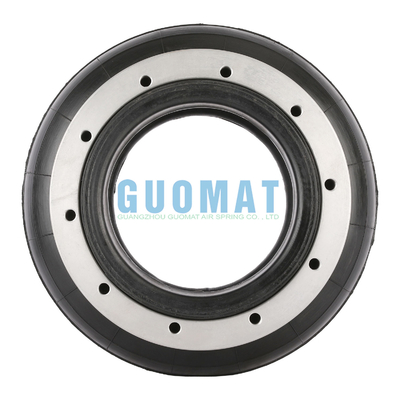

GUOMAT 1H320124 Flange Connection Air Suspension Spring For Industrial Machine

Product Details:

Place of Origin:	Guangzhou China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1H320124

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD99.9-129.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Structure:	Single Convoluted	Function:	Reduce Shock
Flange:	With	Transport Package:	Cartons
After-sales Service:	1 Year	Part:	Air Spring
Position:	Industrial Machine	Type:	Gas-Filled
Highlight:	Flange Connection Air Suspension Spring , 1H320124 Air Suspension Spring

GUOMAT 1H320124 Flange Connection Air Suspension Spring For Industrial Machine

Product Details

Type	Flange Air Spring	GUOMAT No.	1H320124
Material	Rubber and Steel	Warranty	12 Months
Rubber Type	Natural Rubber	MOQ	1 Piece

Technical Data
Diameter: 230mm
Minimum Compression: 52mm
Extend: 142mm
Full Stroke: 90mm
Rubber Bellows Max Diameter: 340mm (At 0.7Mpa)
Natural Height: 124mm
Cover Plate Diameter: 235mm

What is the Flange Air Spring

Flange-connected air springs are a device used to connect and support air springs. The flange is usually a flat disc with holes for bolt connection, which can provide stable connection and support. Air springs use air pressure to provide elasticity and shock absorption, and are widely used in automotive suspension systems and industrial equipment.
The advantages of this connection method are easy installation, good sealing, and the ability to withstand high pressure and load. The design of the flange connection allows the air spring to be easily replaced or maintained when necessary.
In short, flange-connected air springs combine the stability of the flange with the flexibility of the air spring, and are a common connection method in modern engineering.

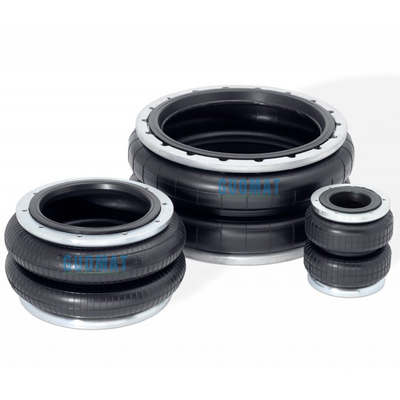

Other Contitech Rubber Air Spring With Flange

Contitech Part Number	Type	Gas Hole	Threaded Hole
FS 22-3 DI CR	69342	G1/4	M6
FS 44-5 DI CR	70205	G3/8	M6
FS 76-7 DI CR	70208	G1/2	M8
FS 138-8 DS	66507	G1/2	M10
FS 210-10 DS	67404	G1/2	M10
FS 412-10 DS	67962	G1/2	M10
FS 614-13 DS	68045	G1/2	M10
FS 816-15 DS	70043	G1/2	M10
FD 22-4 DI CR	69341	G1/4	M6
FD 44-10 DI CR	70206	G3/8	M6
FD 76-14 DI CR	69838	G1/2	M8
FD 76-14 DS CR	70215	G1/2	M10
FD 138-18 DS	66505	G1/2	M10
FD 209-21 DS	50774	G1/2	M10
FD 210-22 DS	67403	G1/2	M10
FD 412-18 DS	66334	G1/2	M10
FD 614-26 DS	68046	G1/2	M10
FD 816-30 DS	68052	G1/2	M10
FT 22-6 DI CR	69320	G1/4	M6
FT 44-15 DI CR	70207	G3/8	M6
FT 76-20 DI CR	70209	G1/2	M8
FT 76-20 DS CR	70217	G1/2	M10
FT 138-26 DS	66506	G1/2	M10
FT 210-32 DS	67402	G1/2	M10
FT 412-32 DS	66339	G1/2	M10
FT 614-36 DS	68047	G1/2	M10
FT 816-40 DS	68053	G1/2	M10
