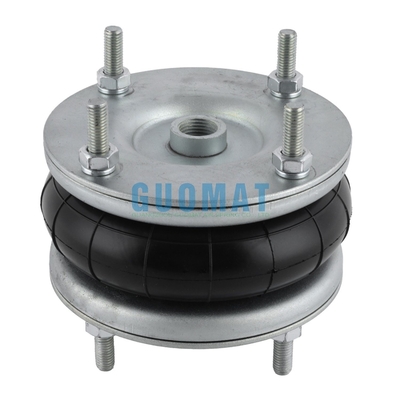

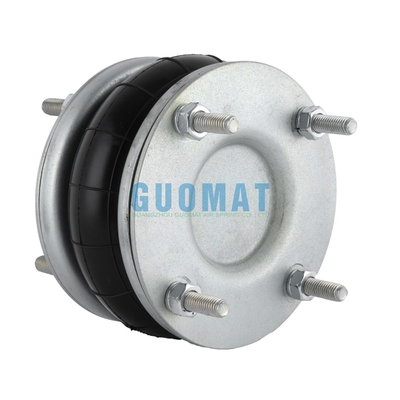

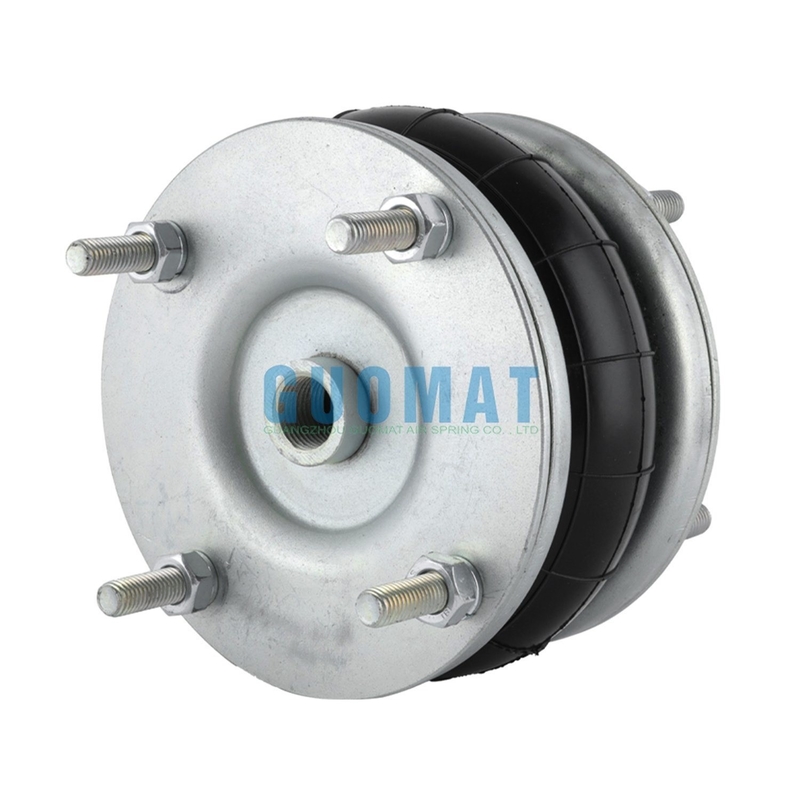

G1/2 Air Connection Dunlop SP1536 Industrial Air Spring for Machine Isolation

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B6×1T

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	1B6×1T	Supplier:	GUOMAT
Bellows Type:	Single Convoluted	Port Size:	G1/2
Design Height:	77.5 MM	Natural Diameter:	159 MM
Other OEM NO.:	M/31061	Warranty:	One Year
Highlight:	Dunlop SP1536 Industrial Air Spring , Industrial Air Spring for Machine Isolation

G1/2 Air Connection Dunlop SP1536 Industrial Air Spring for Machine Isolation

Product Details

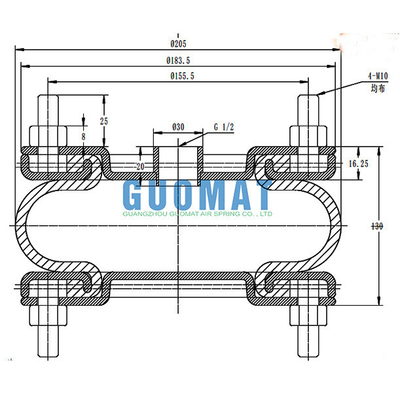

Nut length: 25 mm

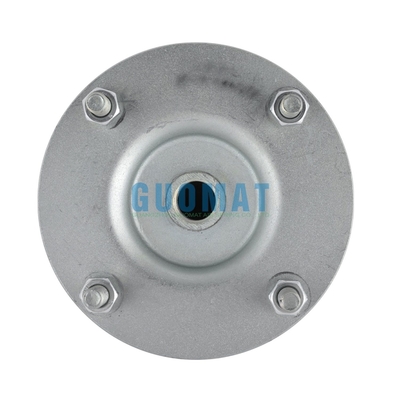

Number of screws on the top cover: 4

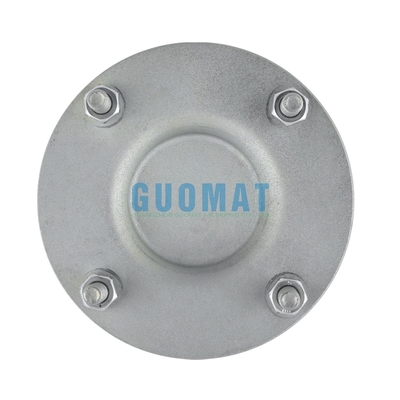

Number of bottom cover screws: 4

Top cover plate screw (nut) tooth: 4-M10

Top cover screw center distance: 127 mm

Screw (nut) teeth of the bottom cover plate: 4-M10

Center distance of bottom cover plate screw: 127 mm

Air hole/air inlet: G1/2

Top cover diameter: 153.5 mm

Diameter of bottom cover: 153.5 mm

Cross Reference Number

Continental ContiTech: FS 76-7 1/2 M10
Continental ContiTech: FS 76-7 DS CR / FS76- -7DSCR
Continental ContiTech: FS 76-07 DS G1/2 CR
Continental ContiTech iRiXË: FS-7 1 FS76-71 FS767
Fire-stone W01R584052/W01 R58 4052/W01-R58-4052
Fire-stone WO1R584052/WO1 R58 4052/WO1-R58-4052
Dunlop FR: SP153
Dunlop UK (Pneuride): P1305 01 13 1 PNP305510113
Norgren: M/31061 1 M 31061 1 M31061
Norgren bellows: 6" x1/ 6"x1 / 6x1

Do You Know What Role Air Springs Play In Industry?

Air springs are used in a variety of mechanical devices to dampen and absorb vibration, control motion or increase pressure. Compared with air cylinders or other elastic elements with the same function, the air spring has a simple structure, reliable operation, no complicated parameter calculation and structural design, no seal leakage, convenient use and maintenance, and long service life.
During the stamping process such as stamping, the car cover, door, etc., should use the necessary buffer devices. The buffer must withstand large periodic shock loads during handling. Its performance directly affects the machining accuracy of the product. Using air springs as buffers can reduce machining costs and ensure machining accuracy. In material conveying, the silo is driven by a vibrator to make the material evenly mixed or flow into the silo. Vibration can cause fatigue and even damage the bin supports, so vibration isolation devices must be used.
More flexibility is provided if air springs are used. Adjusting the amount of spring inflation can meet different working load and height requirements without affecting the vibration isolation effect.

GUOMAT Refer Other OEM Numbers

GUOMAT NO.	Firestone	Dunlop Pneuride	Dunlop Springride	Contitech	Norgren	Parker
2 3/4''×1		2 3/4''×1	SP2906	FS 22-3 DI		9109025
4 1/2''×1	W01R584050	4 1/2''×1	SP2334	FS 44-5 DI	PM/31041	9109400
1B6×1T(AI)	W01R584078	6''×1(Al)	SP2913	FS 76-7 DI	PM/31061	9109004A
1B6×1T(Steel)	W01R584052	6''×1(Steel)	SP1536	FS 76-7 DS	M/31061	9109004
1B8×1T	W01R584054	8''×1	SP1537	FS 138-8 DS	M/31081	9109014
1B10×1T	W01R584057	10''×1	SP2523	FS 210-10 DS	M/31101	9109024
1B12×1T	W01R584060	12''×1	SP1540	FS 412-10 DS	M/31121	9109044
1B14 1/2''×1T	W01R584063	14 1/2''×1	SP1543	FS 614-13 DS	M/31141	9109064
1B16×1T	W01R584066	16''×1		FS 816-15 DS	M/31161	9109126
