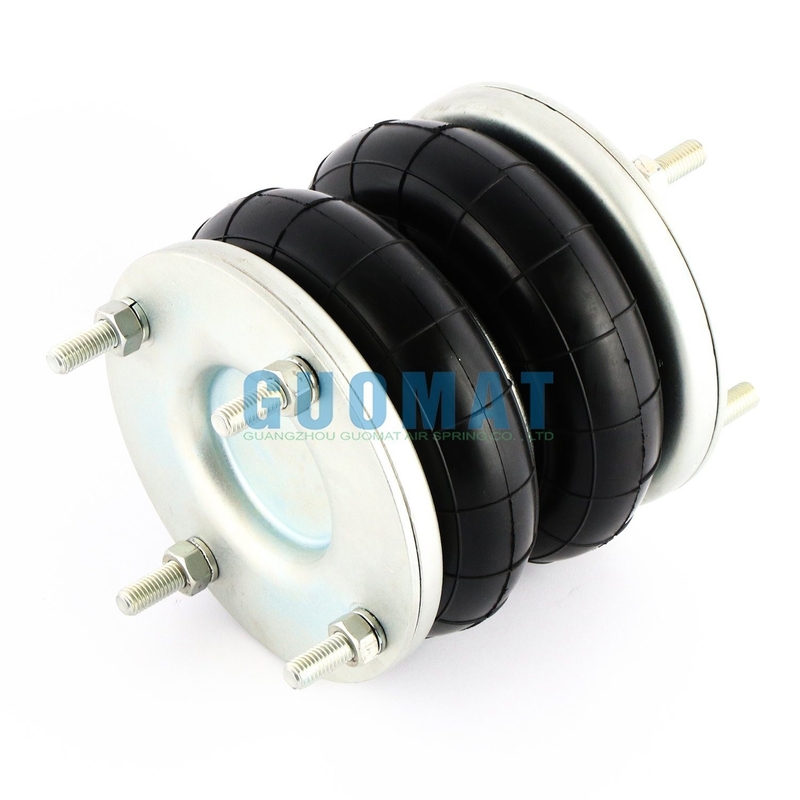

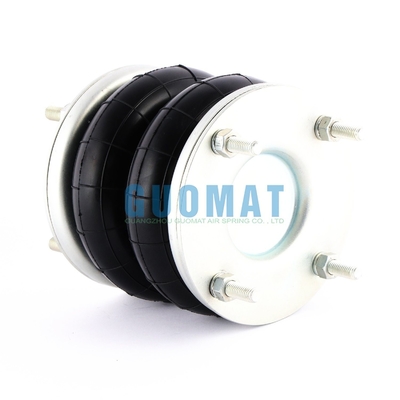

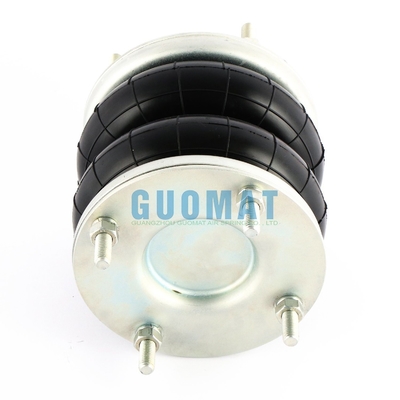

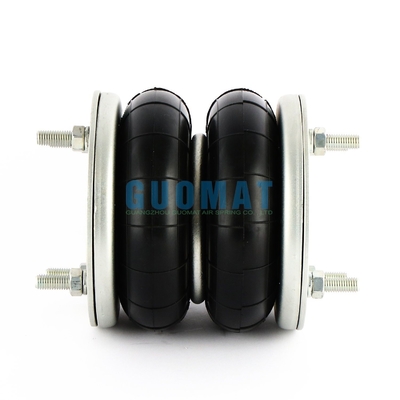

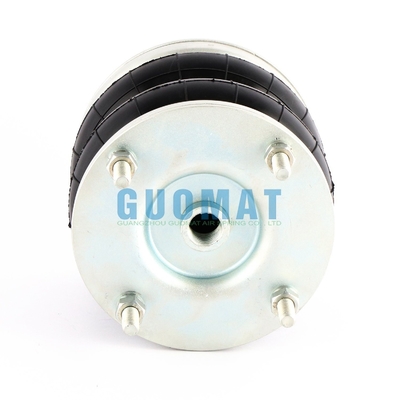

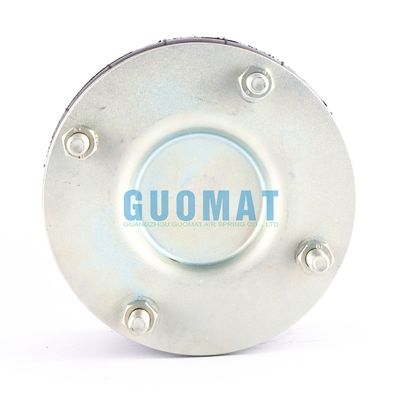

Dunlop 6" x 2 Industrial Air Spring M/31062 Flange Pneumatic Single Convoluted

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B6×2T

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2B6×2T	Structure:	Double Convoluted
Function:	Reduce Shock	Contitech:	FD 76-14
Warranty:	1 Year	Static Height:	135.5 MM
Compatibility:	Universal
Highlight:	Dunlop 6" x 2 Industrial Air Spring , Industrial Air Spring Single Convoluted

Dunlop 6" x 2 Industrial Air Spring M/31062 Flange Pneumatic Single Convoluted

Air Spring Introduction

Air springs have been a crucial component in heavy-duty vehicle suspension systems for nearly a century, effectively utilizing the compressed air required for braking systems to enhance performance. Compared to traditional mechanical leaf or coil springs, air springs offer distinct advantages. They provide superior comfort by allowing adjustments to the air pressure within the spring, which modifies the spring rate and optimizes ride quality. Additionally, their ability to precisely control air pressure enables adjustments to the deck or trailer height, making it easier to align with loading docks even when dock plates are unavailable, thereby improving operational efficiency and versatility.

Cross Reference

FIRE STONE NO. W01-R58-4053
FIRE STONE NO. W01R584053
FIRE STONE NO. W01 R58 4053
DUNLOP NO. 6''X2;6X2
DUNLOP NO. SP1482
DUNLOP NO. SP 1482
CONTITECH NO.FD76-14 ; FD 76-14
NORGREN NO. M/31062 ; M 31062 ; M31062

Air Spring Specification

Diameter of the Top Cover Plate: 153.5 mm
Center-to-Center Distance of Screws on the Top Cover Plate: 127 mm
Diameter of the Bottom Cover Plate: 153.5 mm
Center-to-Center Distance of Screws on the Bottom Cover Plate: 127 mm
Screw (Nut) Thread Count for the Top Cover Plate: 4-M10 mm
Screw (Nut) Thread Count for the Bottom Cover Plate: 4-M10 mm
Air Inlet: G1/2
Natural Diameter of the Rubber Bellow: 159 mm
Natural Height: 135.5 mm

Double Convoluted Pneumatic Air Bellows

GUOMAT NO.	Firestone	Dunlop Pneuride	Dunlop Springride	Contitech	Norgren	Parker
2 3/4''×2		2 3/4''×2	SP2904	FD 22-4 DI		9109009
2B4.5×2	W01R584051	4 1/2''×2	SP2441	FD 44-10 DI	PM/31042	9109401
2B4.5×2-E
2B6×2T(AI)	W01R584070	6''×(AI)	SP2917	FD 76-14 DI	PM/31062	9109001A
2B6×2T(Steel)	W01R584053	6''×2(Steel)	SP1482	FD 76-14 DS	M/31062	9109001
2B8×2T	W01R584055	8''×2	SP1490	FD 138-18 DS	M/31082	9109011
2B10×2T	W01R584058	10''×2	SP1538	FD 210-22 DS	M/31102	9109021
2B12×2T	W01R584061	12''×2	SP1541	FD 412-22 DS	M/31122	9109041
2B12''×2-E	W01R584039	12''×2 Extend	SP2782NB
2B14 1/2''×2T	W01R584064	14'' 1/2×2	SP1556	FD 614-26 DS	M/31142	9109061
2B16×2T	W01R584067	16''×2	SP1557	FD 816-30 DS	M/31162	9109171
2B21 1/2''×2T		21 1/2''×2	SP1408		M/31212	9109153
2B26''×2T		26''×2	SP2342		M/31262	9109159

About Us

We always focus on the development of automotive components, and provide you with quality products and competitive prices.
If you are interested in our products, we are pleased to offer you our best quotation. If you have any question, please do let me know
We are looking forward to establishing business with you.

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
