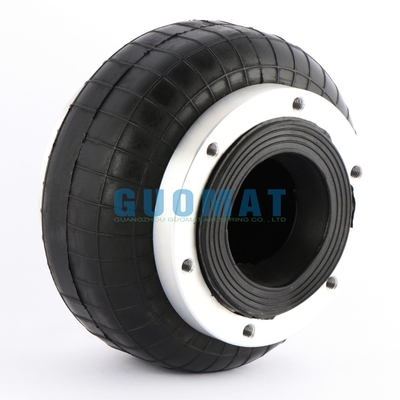

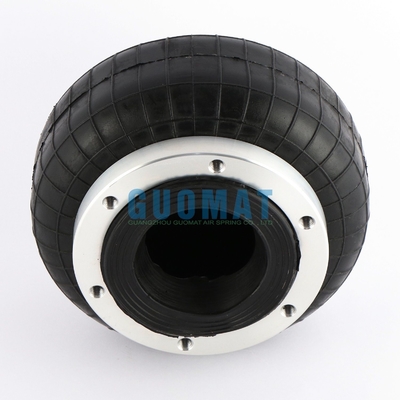

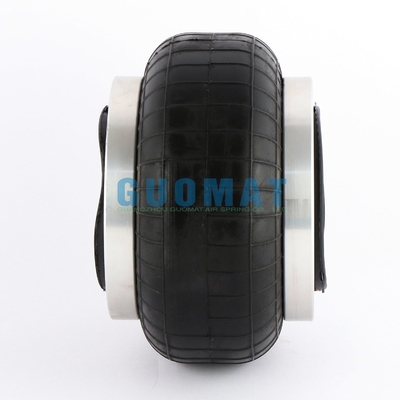

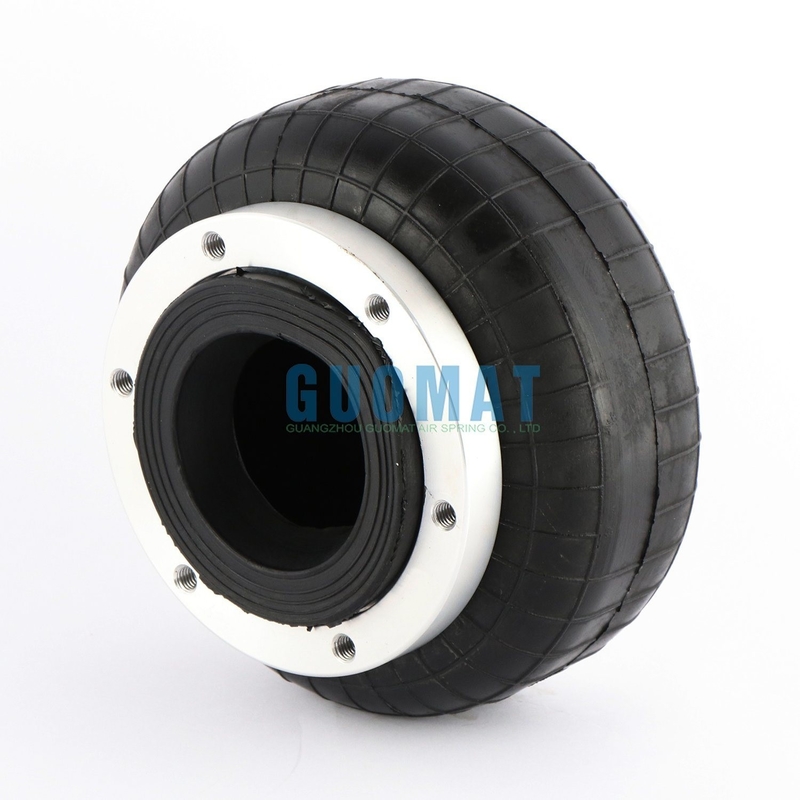

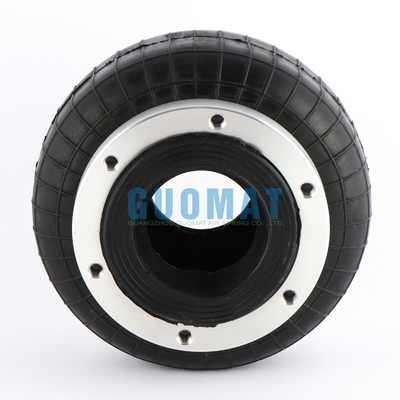

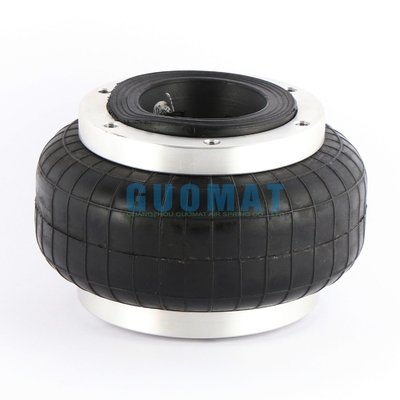

Air Spring Assembly Torpress 110 Rubber Bellow With Flange

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1H5081

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	TORPRESS 110	Structure:	Single Convoluted
Brand:	Guomat	Function:	Reduce Shock
OEM:	Torpress 110	After-sales Service:	1 Year
Position:	Industrial Machine	Type:	Gas-Filled
Highlight:	Air Spring Assembly With Flange , Rubber Bellow Air Spring Assembly

High Quality Air Spring Assembly Torpress 110 From China Rubber Bellow With Flange

Product Introduction

The flange air spring has high reliability and durability. It is made of high-strength rubber and metal materials, and has good wear resistance and corrosion resistance. This enables the flange air spring to withstand greater pressure and load and have a longer service life. In addition, the flange air spring can also be monitored and adjusted in real time through an automatic control system to ensure its normal operation and safety performance.

Product Technical Data

Model	Standard Code	Hightemp Code	Max OD (mm)	Min.Height (mm)	Max.Height (mm)	Static.Height (mm)
110	93113	93114	210	51	151	101
110	88540	93079	210	45	145	95
110	88820	89023	210	45	145	95

Cross OEM Number

Torpress 89023
GART ARI.275
Pirelli Torpress 88540
Pirelli Torpress 88820
Pirelli Torpress 93079
Pirelli Torpress 89023

Product Application

Gate Valve Operator
Glue Coating Machine
Web Tightening Tool
Stripper
Tool Spring Driver
Quenching Drain Driver
Paper Mill
Pickling Tank Driver

We Also Have Other 1B Type Air Rubber Bellows

GUOMAT NO.	Cross References
1B200-10	Contitech FS 200-10 Firestone W01-M58-6374 Phoenix SP 1B 12 Dunlop(FR) 9''1/4x1 S09101 Bosch 822419004 Festo EB-250-85 Norgren PM/31091(81/4x1)
1B1209	Firestone W01-M58-6165 Contitech FS 120-9 Dunlop 8''x1, S08101 Bosch 822419003 Festo EB-215-80 Norgren PM/31081(8x1) Weforma WBE 300-E1 Airtech 140293 Airtech 111003/1B-190FB Megatech 1S120-9 3/4 M8
1B 5330	Firestone W01-358-7008 Contitech FS 330-11 474 Goodyear 1B12-300/313 Triangle 6374/4474 Holland(Neway) 90557226
1B4.5×1P	Firestone W01-R58-4050 Dunlop Pneuride 4 1/2" x 1 Dunlop Springride SP2334 Contitech FS 44-5 DI Norgren PM/31041 Parker 9109400
1B6×1P	Firestone W01-R58-4078 Dunlop Pneuride 6''×1 Dunlop Springride SP2913 Contitech FS 76-7 DI Norgren PM/31061 Parker 9109004A
