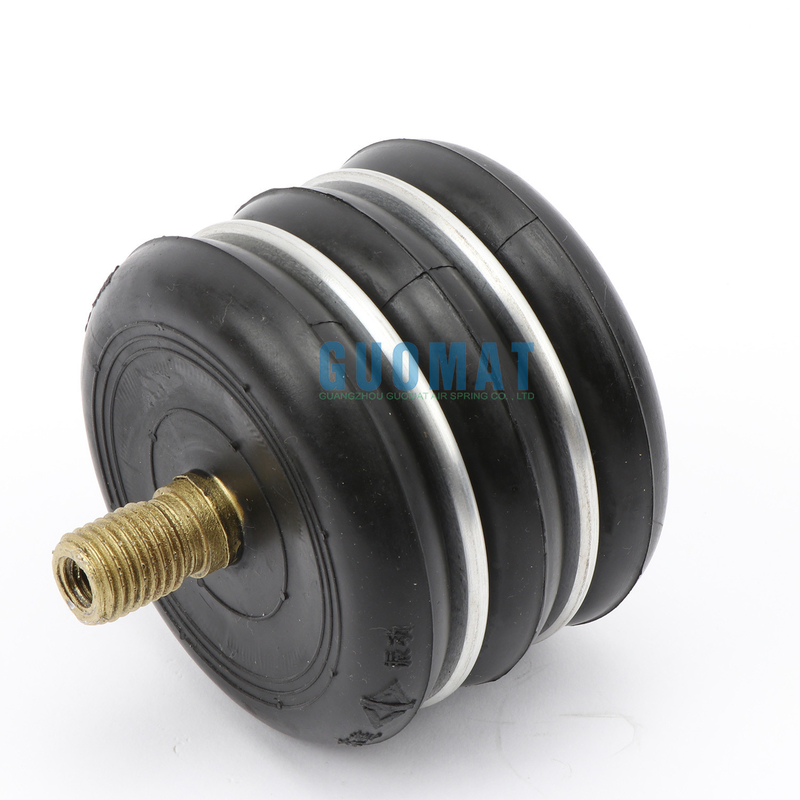

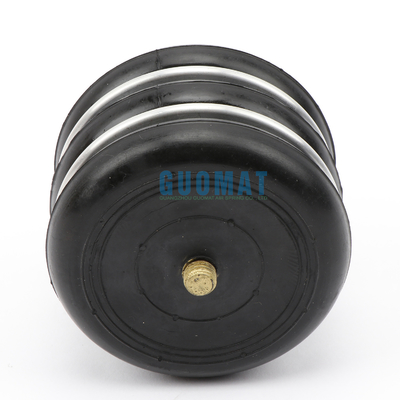

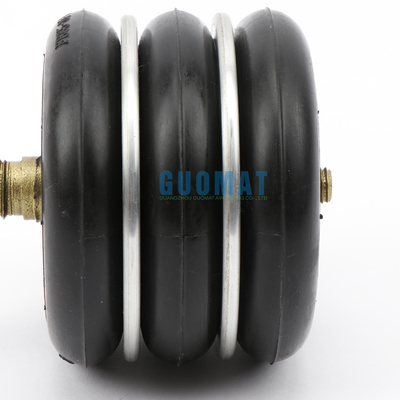

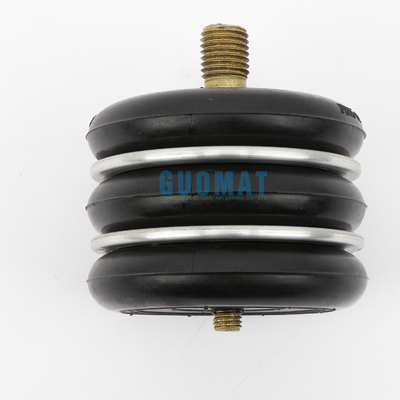

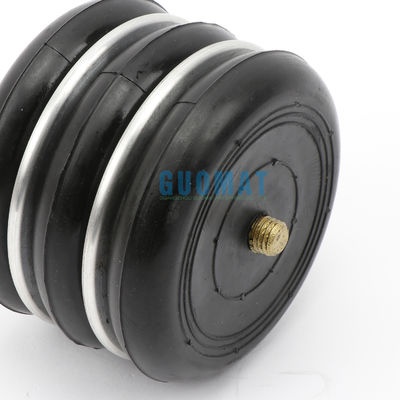

Compression Load Type Air Spring M-120-2 Yokohama Triple Convoluted Air Bag

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	MB-120-2

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	MB-120-2	Pressure Ability:	0.2-0.88 MPa
Design High:	152 Mm	Minimum Height:	82 Mm
Stroke:	106 Mm	Max Diameter:	180 Mm
Function:	Reduce Vibration	Sample:	Available
Highlight:	Compression Load Type Air Spring , M-120-2 Compression Load Type Air Spring , Yokohama Triple Convoluted Air Bag

Compression Load Type Air Spring M-120-2 Yokohama Triple Convoluted Air Bag

M-120 items Detailed Parameter Table

GUOMAT NO.	Reference No.	Hight H(mm)			Commonly Maximum Stroke(mm)	The Largest Diameter When Compressed(mm)
GUOMAT NO.	Reference No.	Design High(mm)	Maximum High(mm)	Minimum Height(mm)	Commonly Maximum Stroke(mm)	The Largest Diameter When Compressed(mm)
MB-120-4	M-120-4	206	306	111	±70	180
MB-120-3	M-120-3	152	227	82	±53	180
MB-120-2	M-120-2	98	148	53	±35	180

GUOMAT NO.	Reference No.	Standard Height,Internal Pressure 0.49 M pa When The General Value					Using Maximum Internal Pressure (M pa)	Internal Pressure (M pa)
GUOMAT NO.	Reference No.	Effective Area (Cm2)	Volume(L)	Load (K n)	Dynamic Spring Parameters (N/Min)	Vibration Frequency (Hz)	Using Maximum Internal Pressure (M pa)	Internal Pressure (M pa)
MB-120-4	M-120-4	113	3.4	5.2	69	1.8	0.88	2.9-3.9
MB-120-3	M-120-3	113	2.1	5.2	98	2.2	0.88	2.9-3.9
MB-120-2	M-120-2	113	1.25	5.2	157	2.7	0.88	2.9-3.9
MB-100-4	M-100-4	79	1.95	3.9	59	1.9	0.88	2.9-3.9
MB-90-3	M-90-3	79	1.4	3.9	78	2.2	0.88	2.9-3.9
MB-90-2	M-90-2	79	0.85	3.9	118	2.7	0.88	2.9-3.9
MB-90-1	M-90-1	63.5	0.5	3.1	103	2.9	0.88	3.9-4.9

M-120-2R air spring Fits Below Items

Papermaking equipment

Scissor lift

Mechanical Hopper vibration and damping handling stop

Direct force

Platform lift

Short stroke mechanical linkage

Hot foil stamping press

Impact absorbtion

Roller tensioning

Quick lock device

Reel tensioning

Machine isolation

Support and Services

The Suspension Air Springs product technical support and services include:
Expert troubleshooting assistance to diagnose and resolve technical issues
Guidance on proper installation and maintenance procedures
Product documentation, including user manuals and technical specifications
Product training and education for customers and service technicians
Warranty and repair services, including replacement parts and exchange programs
Customer support for urgent technical issues or service needs

GUOMAT Has Air Shock Absorber Part NO. Below

GUOMAT Part NO.	Japan YOKOHAMA Reference No.	Japan YOKOHAMA Reference No.	GUOMAT Part NO.	Japan YOKOHAMA Reference No.	Japan YOKOHAMA Reference No.
MB-600-1	MB-600-R1	600-1r	MB-240-4	MB-240-R4	240-4r
MB-600-2	MB-600-R2	600-2r	MB-240-3	MB-240-R3	240-3r
MB-600-3	MB-600-R3	600-3r	MB-240-2	MB-240-R2	240-2r
MB-600-4	MB-600-R4	600-4r	MB-240-1	MB-240-R1	240-1r
MB-600-5	MB-600-R5	600-5r	MB-220-4	MB-220-R4	220-4r
MB-550-2	MB-550-R2	550-2r	MB-220-3	MB-220-R3	220-3r
MB-550-3	MB-550-R3	550-3r	MB-220-2	MB-220-R2	220-2r
MB-500-2	MB-500-R2	500-2r	MB-200-2	MB-200-R2	200-2r
MB-500-3	MB-500-R3	500-3r	MB-200-3	MB-200-R3	200-3r
MB-500-4	MB-500-R4	500-4r	MB-200-4	MB-200-R4	200-4r
MB-500-5	MB-500-R5	500-5r	MB-160-1	MB-160-R1	160-1r
MB-450-1	MB-450-R1	450-1r	MB-160-2	MB-160-R2	160-2r
MB-450-2	MB-450-R2	450-2r	MB-160-3	MB-160-R3	160-3r
MB-450-3	MB-450-R3	450-3r	MB-160-4	MB-160-R4	160-4r
MB-450-4	MB-450-R4	450-4r	MB-120-4	MB-120-R4	120-4r
MB-450-5	MB-450-R5	450-5r	MB-120-3	MB-120-R3	120-3r
MB-400-2	MB-400-R2	400-2r	MB-120-2	MB-120-R2	120-2r
MB-400-3	MB-400-R3	400-3r	MB-100-4	MB-100-R4	100-4r
MB-400-4	MB-400-R4	400-4r	MB-90-3	MB-90-R3	90-3r
MB-400-5	MB-400-R5	400-5r	MB-90-2	MB-90-R2	90-2r
MB-350-1	MB-350-R1	350-1r	MB-90-1	MB-90-R1	90-1r
MB-350-2	MB-350-R2	350-2r	MB-300-1	MB-300-R1	300-1r
MB-350-3	MB-350-R3	350-3r	MB-300-2	MB-300-R2	300-2r
MB-350-4	MB-350-R4	350-4r	MB-300-3	MB-300-R3	300-3r
			MB-300-4	MB-300-R4	300-4r
