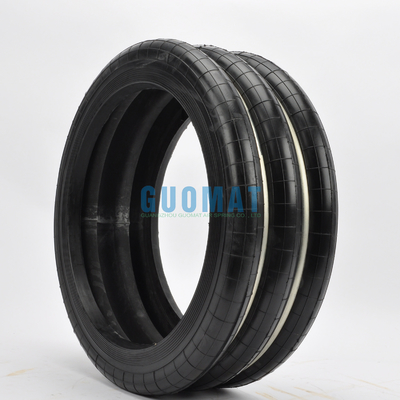

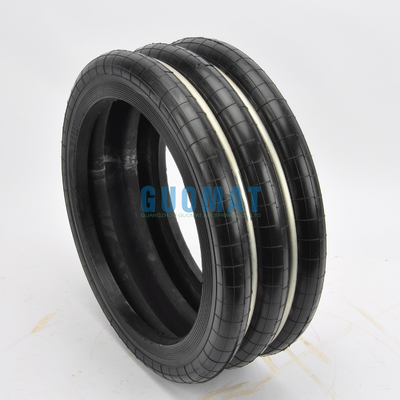

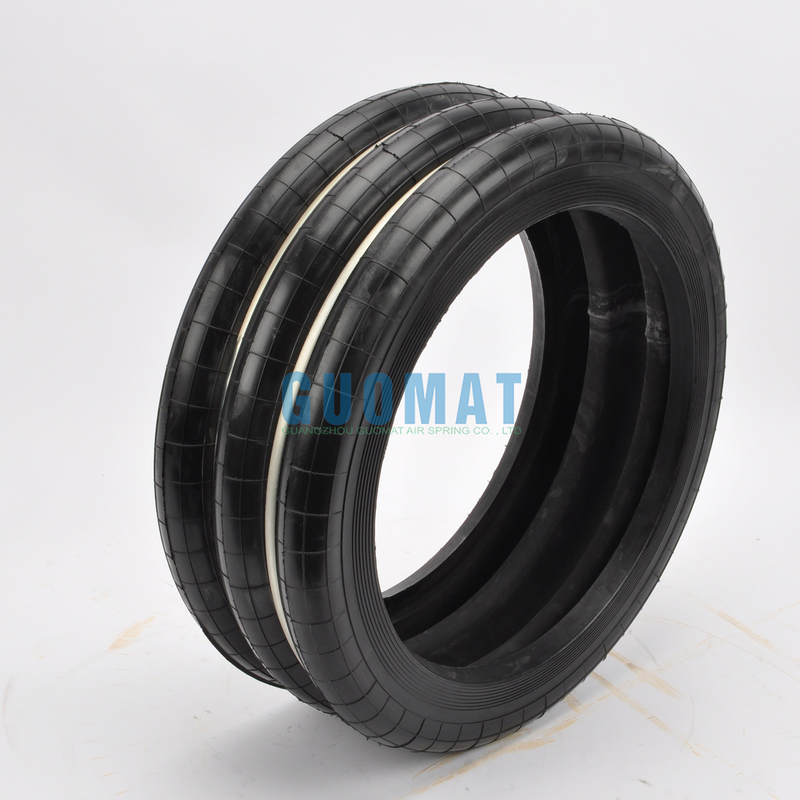

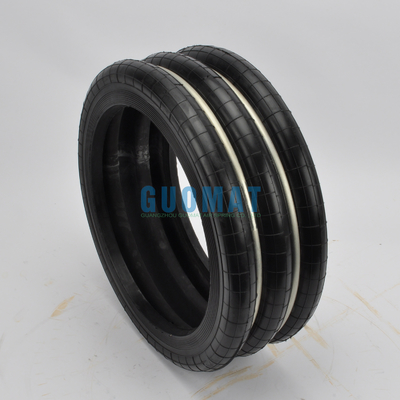

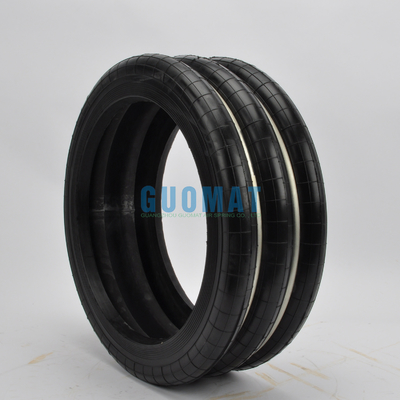

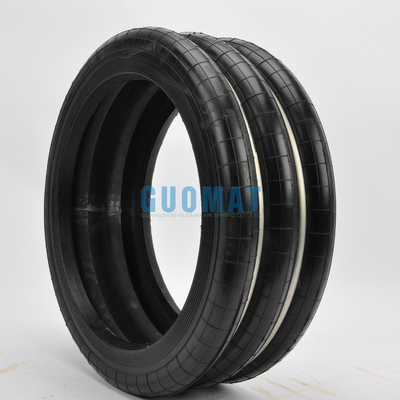

Punch Press Rubber Air Spring Yokohama S-400-3 Triple Type Air Rubber Bellow

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	F-400-3

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Warranty:	One Year	Design High:	160 Mm
Bumper Block:	Without	Minimum Height:	90 Mm
Stroke:	136 Mm	Max Diameter:	460 Mm
Transport Package:	Cartons	Brand Name:	GUOMAT
Highlight:	Punch Press Rubber Air Spring , Rubber Air Spring Yokohama S-400-3 , Triple Type Air Rubber Bellow

Punch Press Rubber Air Spring Yokohama S-400-3 Triple Type Air Rubber Bellow

F-400-3 Air Spring Description

This F-400-3 punch air spring is produced by the GUOMAT factory. The model of the YOKOHAMA punch air spring is S-400-3, the size is the same, they can be common. This GUOMAT NO.F-400-3 punch air spring warranty time for one year. Our product quality is guaranteed. We are exported to all over the world, the customer response is very good. Made in China air springs can be used with confidence, we are also very competitive in terms of price.

F-400-3 Air Bellow Specifications

GUOMAT NO.	Reference No.	Hight H(mm)			Commonly Maximum Stroke(mm)	The Largest Diameter When Compressed(mm)
		Design High(mm)	Maximum High(mm)	Minimum Height(mm)
F-400-3	S-400-3	160	260	90	±68	460

Standard Height,Internal Pressure 0.49 M pa When The General Value					Using Maximum Internal Pressure (M pa)	Internal Pressure (M pa)
Effective Area (Cm2)	Volume(L)	Load (K n)	Dynamic Spring Parameters (N/Min)	Vibration Frequency (Hz)	Using Maximum Internal Pressure (M pa)	Internal Pressure (M pa)
1260	19.5	61.6	834	1.8	0.69	3.9-4.9

Air Spring Applications

Expanded Metal Machine
Concrete Brick Machine
Rotating Table with the Air Spring
Crushing Machine
Concrete Screening Machine
Carpet Extraction Machine
Commercial Laundry Machines
Coordinate Measuring Tables and Machinery
Centrifugal Separators
Large Drying Machines
Vibratory Conveyors
Electronic Equipment
Compressors
Conveyor Loading Points
Textile Looms
Rotary Shaft Actuators

GUOMAT Has Punch Press Air Spring Cushion /Air Shock Absorber Part NO. Below

GUOMAT Part NO.	Japan YOKOHAMA Reference No.	Japan YOKOHAMA Reference No.	GUOMAT Part NO.	Japan YOKOHAMA Reference No.	Japan YOKOHAMA Reference No.
F-600-1	S-600-1R	S 600 1R	F-240-4	S-240-4R	S 240 4R
F-600-2	S-600-2R	S 600 2R	F-240-3	S-240-3R	S 240 3R
F-600-3	S-600-3R	S 600 3R	F-240-2	S-240-2R	S 240 2R
F-600-4	S-600-4R	S 600 4R	F-240-1	S-240-1R	S 240 1R
F-600-5	S-600-5R	S 600 5R	F-220-4	S-220-4R	S 220 4R
F-550-2	S-550-2R	S 550 2R	F-220-3	S-220-3R	S 220 3R
F-550-3	S-550-3R	S 550 3R	F-220-2	S-220-2R	S 220 2R
F-500-2	S-500-2R	S 500 2R	F-200-2	S-200-2R	S 200 2R
F-500-3	S-500-3R	S 500 3R	F-200-3	S-200-3R	S 200 3R
F-500-4	S-500-4R	S 500 4R	F-200-4	S-200-4R	S 200 4R
F-500-5	S-500-5R	S 500 5R	F-160-1	S-160-1R	S 160 1R
F-450-1	S-450-1R	S 450 1R	F-160-2	S-160-2R	S 160 2R
F-450-2	S-450-2R	S 450 2R	F-160-3	S-160-3R	S 160 3R
F-450-3	S-450-3R	S 450 3R	F-160-4	S-160-4R	S 160 4R
F-450-4	S-450-4R	S 450 4R	F-120-4	S-120-4R	S 120 4R
F-450-5	S-450-5R	S 450 5R	F-120-3	S-120-3R	S 120 3R
F-400-2	S-400-2R	S 400 2R	F-120-2	S-120-2R	S 120 2R
F-400-3	S-400-3R	S 400 3R	F-100-4	S-100-4R	S 100 4R
F-400-4	S-400-4R	S 400 4R	F-90-3	S-90-3R	S 90 3R
F-400-5	S-400-5R	S 400 5R	F-90-2	S-90-2R	S 90 2R
F-350-1	S-350-1R	S 350 1R	F-90-1	S-90-1R	S 90 1R
F-350-2	S-350-2R	S 350 2R	F-300-1	S-300-1R	S 300 1R
F-350-3	S-350-3R	S 350 3R	F-300-2	S-300-2R	S 300 2R
F-350-4	S-350-4R	S 350 4R	F-300-3	S-300-3R	S 300 3R
			F-300-4	S-300-4R	S 300 4R
