Brand New F-160-3 Pneumatic Parts Cross Yokohama S-160-3R Natural Rubber Bellow

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	F-160-3

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	F-160-3	Structure:	Triple Convoluted
Quality:	100 % Tested	Fuction:	Reduce Shock
Trademark:	GUOMAT	Origin:	Guangzhou, China
Warranty:	12 Months	Type:	Gas-Filled
Highlight:	Yokohama S-160-3R Natural Rubber Bellow , F-160-3 Pneumatic Parts Natural Rubber Bellow

Brand New F-160-3 Pneumatic Parts Cross Yokohama S-160-3R Natural Rubber Bellow

F-160-3 Air Bellow Technical Data

Design Height: 152mm

Max. Height: 227mm

Min Height: 82mm

Common Maximum Travel(mm): ±53mm

Compression Max. Outside Diameter (mm): 220mm

Standard height, approximate value at 0.49MPA internal pressure

Efective Area(cm2): 200

Volume(L): 3.4

Load (KN):9.8

Dynamic Spring Constant(n/mm): 157

Natural Vibration Frequence(Hz): 2.0

Maximum Internal Pressure (MPA): 0.88

Internal Pressure Failure(MPA): 2.9-3.9

Refer Numbers

AIRSUSTECH Part No.: F-160-3

YOKOHAMA S-160-3R

YOKOHAMA S 160 3R

YOKOHAMA S-160-3

YOKOHAMA S 160 3

YOKOHAMA S160-3R

YOKOHAMA S160-3

Product Applications

Applications
Scissor lift
Hopper vibration and damping
Mechanical handling stop
Quick lock device
Reel tensioning
Machine isolation
Direct force
Impact absorbtion
Roller tensioning
Platform lift
Short stroke mechanical linkage
Hot foll stamping press

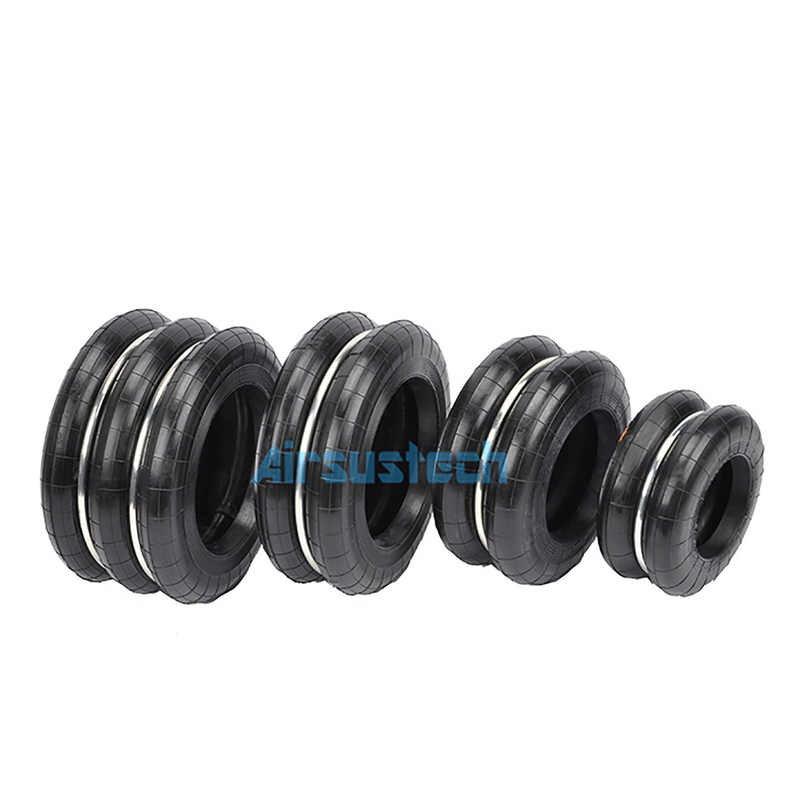

Other Types of Air Springs

GUOMAT NO.	Yokohama Reference No.	Hight H(mm)			Commonly Maximum Stroke(mm)	The Largest Diameter When Compressed(mm)
GUOMAT NO.	Yokohama Reference No.	Design High(mm)	Maximum High(mm)	Minimum Height(mm)	Commonly Maximum Stroke(mm)	The Largest Diameter When Compressed(mm)
F-600-1	S-600-1	72	122	40	±30	700
F-600-2	S-600-2	102	172	57	±45	660
F-600-3	S-600-3	160	270	90	±68	660
F-600-4	S-600-4	218	363	123	±90	660
F-600-5	S-600-5	276	456	156	±113	660
F-550-2	S-550-2	102	172	50	±45	610
F-550-3	S-550-3	160	270	90	±68	610
F-500-2	S-500-2	102	172	57	±45	560
F-500-3	S-500-3	160	270	90	±68	560
F-500-4	S-500-4	218	363	123	±90	560
F-500-5	S-500-5	276	456	156	±113	560
F-450-1	S-450-1	72	117	40	±30	510
F-450-2	S-450-2	102	172	57	±45	510
F-450-3	S-450-3	160	270	90	±68	510
F-450-4	S-450-4	218	363	123	±90	510
F-450-5	S-450-5	276	456	156	±113	510
F-400-2	S-400-2	102	167	57	±45	460
F-400-3	S-400-3	160	260	90	±68	460
F-400-4	S-400-4	218	348	123	±90	460
F-400-5	S-400-5	276	435	156	±113	460
F-350-1	S-350-1	72	117	40	±30	450
F-350-2	S-350-2	102	160	55	±42	410
F-350-3	S-350-3	160	250	85	±65	410
F-350-4	S-350-4	218	336	118	±85	410
F-300-1	S-300-1	72	117	40	±30	400
F-300-2	S-300-2	98	158	53	±40	360
F-300-3	S-300-3	152	242	82	±60	360
F-300-4	S-300-4	206	326	111	±80	360
F-240-4	S-240-4	206	316	111	±80	300
F-240-3	S-240-3	152	232	82	±60	300
F-240-2	S-240-2	98	148	53	±40	300
F-240-1	S-240-1	72	110	40	±30	340
F-220-4	S-220-4	206	311	111	±80	280
F-220-3	S-220-3	152	232	82	±60	280
F-220-2	S-220-2	98	148	53	±40	280
F-200-2	S-200-2	98	148	53	±35	260
F-200-3	S-200-3	152	232	82	±53	260
F-200-4	S-200-4	206	311	111	±70	260
F-160-1	S-160-1	72	102	40	±25	220
F-160-2	S-160-2	98	148	53	±35	220
F-160-4	S-160-4	206	306	111	±70	220
F-120-4	S-120-4	206	306	111	±70	180
F-120-3	S-120-3	152	227	82	±53	180
F-120-2	S-120-2	98	148	53	±35	180
F-100-4	S-100-4	206	296	121	±60	160
F-90-3	S-90-3	152	222	87	±45	160
F-90-2	S-90-2	98	143	58	±30	160
F-90-1	S-90-1	76	106	46	±30	125

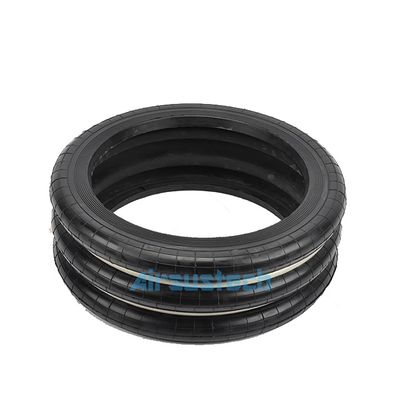

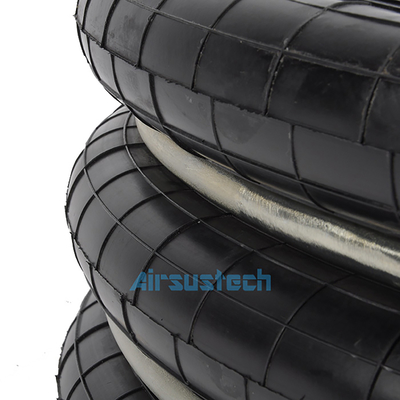

The Related Pictures of F-160-3
