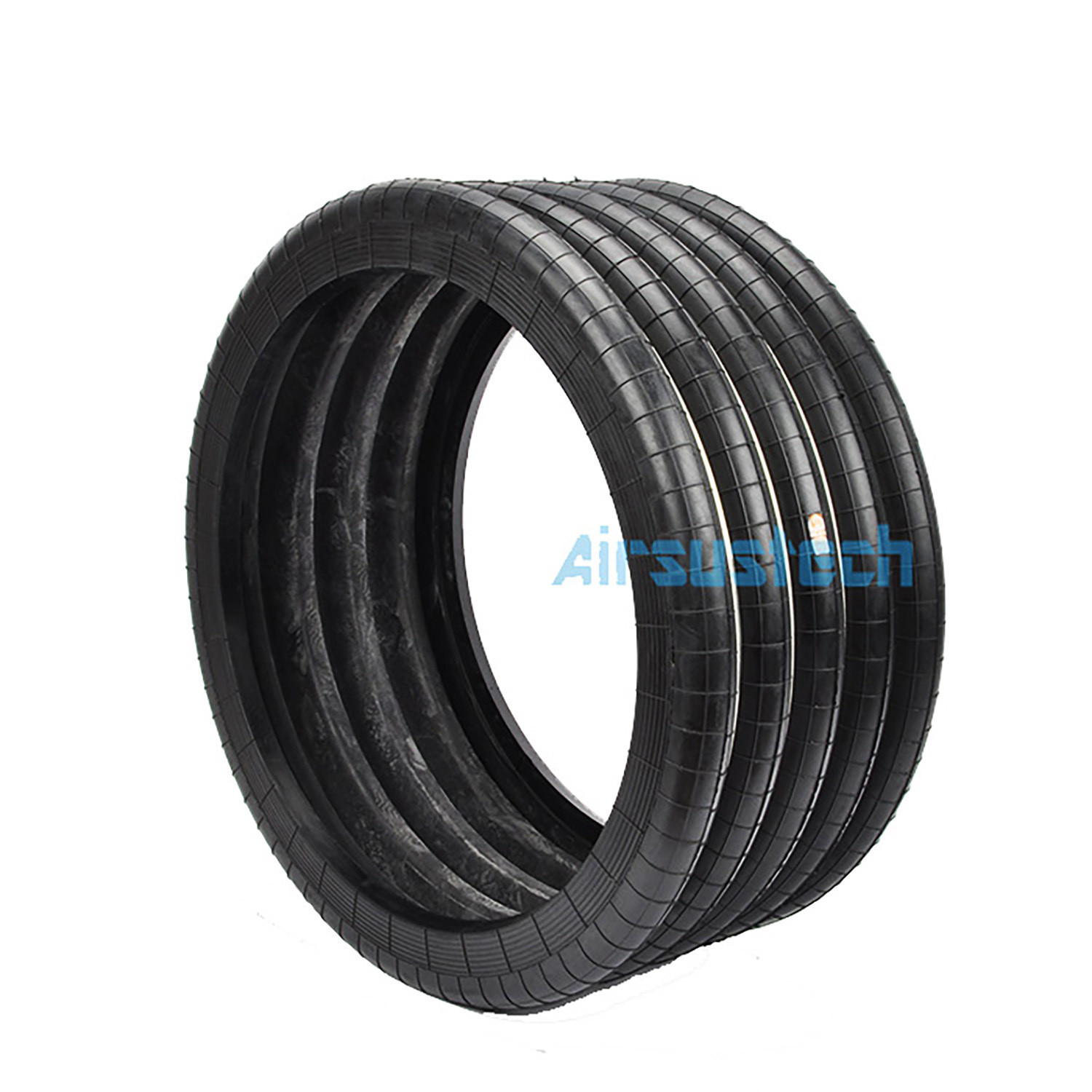

Yokohama S-600-5 Rubber Air Spring 276mm Design Height Air Bellows With Waist Ring

Product Details:

Place of Origin:	Guangzhou China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	F-600-5

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD99.9-129.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Material:	Rubber	Quality:	100 % Tested
Fuction:	Reduce Shock	Key:	Yokohama S-600-5
Type:	Gas-Filled	Design Height:	276mm
Convolutions:	5	Application:	For Punching Equipment
Highlight:	Yokohama S-600-5 Rubber Air Spring , 276mm Height Rubber Air Spring

Yokohama S-600-5 Rubber Air Spring 276mm Design Height Air Bellows With Waist Ring

OEM Cross Reference:

GUOMAT Part No.: F-600-5

YOKOHAMA S-600-5R

YOKOHAMA S 600 5R

YOKOHAMA S-600-5

YOKOHAMA S 600 5

YOKOHAMA S600-5R

YOKOHAMA S600-5

Specifications and Detailed Technical Parameters: F-600-5

Height H(mm)

Design Height: 276 mm

Max. Height: 456mm

Min Height: 156mm

Common Maximum Travel(mm): 113mm

Compression Max. Outside Diameter (mm): 660mm

Maximum Internal Pressure (MPA): 0.69

Internal Pressure Failure(MPA): 3.9-4.9

Model Size			Standard height, approximate value at 0.49MPA internal pressure
Model Size	Design Height	Max. Height	Effective Area(cm2)	Volume(L)	Load(KN)	Dynamic Spring Constant(n/mm)	Natural Vibration Frequency(Hz)
S-600-5	276	456	2830	76.6	138.3	1010	1.3
S-600-4	218	363	2830	59.9	138.3	1285	1.5
S-600-3	160	270	2830	43.2	138.3	1765	1.8
S-600-2	102	172	2830	26.3	138.3	2873	2.3
S-600-1	72	122	2830	19.0	138.3	4197	2.8

Air Springs For Punching Equipment

Air springs are a device that uses air as an elastic medium and are widely used in punching equipment. Their main function is to provide smooth support and shock absorption, thereby improving the working efficiency and safety of the equipment.
The advantages of air springs include:

Good Shock Absorption Performance: air springs can effectively absorb shock and vibration, protecting equipment and operators.

Flexible Adjustment: By adjusting the air pressure, the stiffness of the spring can be changed to adapt to different working conditions.

Strong Durability: air springs usually have a long service life and low maintenance costs.

When selecting air springs, factors such as their load-bearing capacity, working environment and installation space need to be considered to ensure their optimal performance in punching equipment.

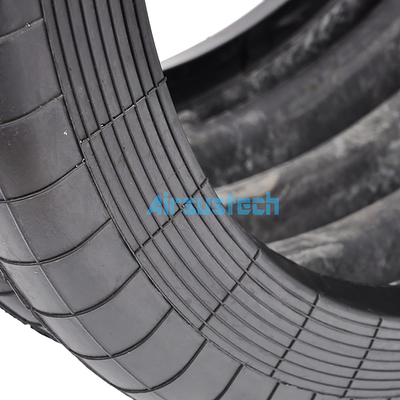

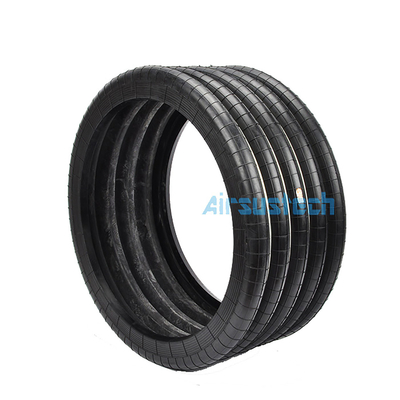

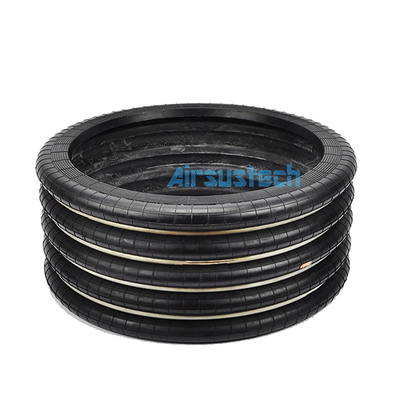

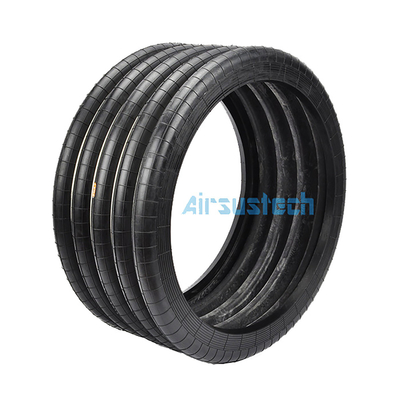

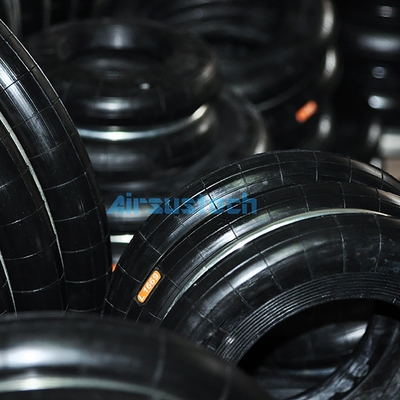

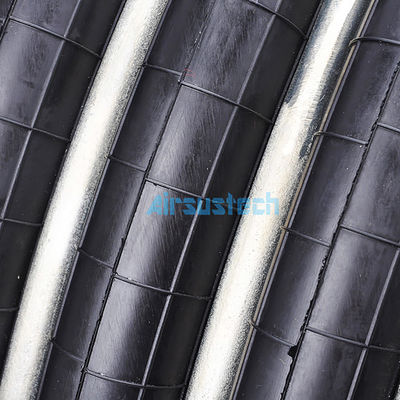

The related picture of F-600-5
