F-500-4 AIRSUSTECH Air Spring Cross Yokohama S-500-4 Rubber Quadruple Bag

Product Details:

Place of Origin:	Guangzhou China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	F-500-4

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD99.9-129.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Material:	Rubber	Quality:	100 % Tested
Fuction:	Reduce Shock	Transport Package:	Strong Cartons
Warranty:	12 Months	Part:	Air Spring
Type:	Gas-Filled	Cross Number:	S-500-4R
Highlight:	Air Spring Material Rubber , Air Spring Material Rubber F-500-4

F-500-4 AIRSUSTECH Air Spring Cross Yokohama S-500-4 Rubber Quadruple Bag

OEM Cross reference:

AIRSUSTECH Part No.: F-500-4

YOKOHAMA S-500-4R

YOKOHAMA S 500 4R

YOKOHAMA S-500-4

YOKOHAMA S 500 4

YOKOHAMA S500-4R

Specifications and Detailed Technical Parameters: F-500-4

Model Size	Height H(mm)			Common Maximum Travel(mm)	Compression Max. Outside Diameter (mm)	Standard height, approximate value at 0.49MPA internal pressure					Maximum Internal Pressure (MPA)	Internal Pressure Failure(MPA)
Model Size	Design Height	Max. Height	Min Height	Common Maximum Travel(mm)	Compression Max. Outside Diameter (mm)	Effective Area(cm2)	Volume(L)	Load(KN)	Dynamic Spring Constant(n/mm)	Natural Vibration Frequency(Hz)	Maximum Internal Pressure (MPA)	Internal Pressure Failure(MPA)
S-500-5R	276	456	156	±113	560	1965	54.0	96.3	706	1.4	0.69	3.9-4.9
S-500-4R	218	363	123	±90	560	1965	41.9	96.3	912	1.5	0.69	3.9-4.9
S-500-3R	160	270	90	±68	560	1965	30.3	96.3	1255	1.8	0.69	3.9-4.9
S-500-2R	102	172	57	±45	560	1965	18.5	96.3	2020	2.3	0.69	3.9-4.9

Other types

GUOMAT Part NO.	Japan YOKOHAMA Reference No.	Japan YOKOHAMA Reference No.	GUOMAT Part NO.	Japan YOKOHAMA Reference No.	Japan YOKOHAMA Reference No.
F-600-1	S-600-1R	S 600 1R	F-240-4	S-240-4R	S 240 4R
F-600-2	S-600-2R	S 600 2R	F-240-3	S-240-3R	S 240 3R
F-600-3	S-600-3R	S 600 3R	F-240-2	S-240-2R	S 240 2R
F-600-4	S-600-4R	S 600 4R	F-240-1	S-240-1R	S 240 1R
F-600-5	S-600-5R	S 600 5R	F-220-4	S-220-4R	S 220 4R
F-550-2	S-550-2R	S 550 2R	F-220-3	S-220-3R	S 220 3R
F-550-3	S-550-3R	S 550 3R	F-220-2	S-220-2R	S 220 2R
F-500-2	S-500-2R	S 500 2R	F-200-2	S-200-2R	S 200 2R
F-500-3	S-500-3R	S 500 3R	F-200-3	S-200-3R	S 200 3R
F-500-4	S-500-4R	S 500 4R	F-200-4	S-200-4R	S 200 4R
F-500-5	S-500-5R	S 500 5R	F-160-1	S-160-1R	S 160 1R
F-450-1	S-450-1R	S 450 1R	F-160-2	S-160-2R	S 160 2R
F-450-2	S-450-2R	S 450 2R	F-160-3	S-160-3R	S 160 3R
F-450-3	S-450-3R	S 450 3R	F-160-4	S-160-4R	S 160 4R
F-450-4	S-450-4R	S 450 4R	F-120-4	S-120-4R	S 120 4R
F-450-5	S-450-5R	S 450 5R	F-120-3	S-120-3R	S 120 3R
F-400-2	S-400-2R	S 400 2R	F-120-2	S-120-2R	S 120 2R
F-400-3	S-400-3R	S 400 3R	F-100-4	S-100-4R	S 100 4R
F-400-4	S-400-4R	S 400 4R	F-90-3	S-90-3R	S 90 3R
F-400-5	S-400-5R	S 400 5R	F-90-2	S-90-2R	S 90 2R
F-350-1	S-350-1R	S 350 1R	F-90-1	S-90-1R	S 90 1R
F-350-2	S-350-2R	S 350 2R	F-300-1	S-300-1R	S 300 1R
F-350-3	S-350-3R	S 350 3R	F-300-2	S-300-2R	S 300 2R
F-350-4	S-350-4R	S 350 4R	F-300-3	S-300-3R	S 300 3R
			F-300-4	S-300-4R	S 300 4R

Features

This air spring is a special air bag for punching equipment, and also a self-sealing air bag. Self-sealing is named for its self-sealing without external force. Its shock absorption principle is to use compressed air to reduce the impact, excellent performance, vibration reduction frequency can reach more than one Hertz. Air pressure inside the air spring can also be by adjusting the shock absorption measures to achieve higher precision, and because of its unique shock absorption principle, has great advantages in equipment maintenance, because the traditional steel spring in impact will produce certain damage to equipment, and the air spring can achieve full suspension, which greatly reduce the maintenance cost of punching equipment, Thus prolong the service life of punch equipment.

Low cost and wide range of specifications
Long service life, no maintenance and lubrication, no internal levers or pistons
No friction effect, soft medium
Bending capacity, side load capacity, compact original height

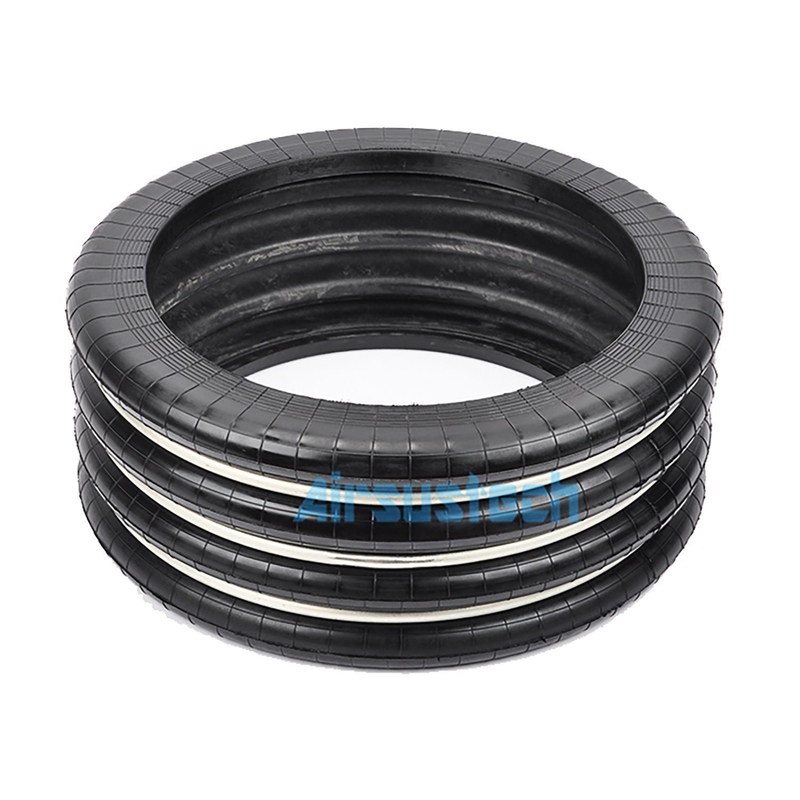

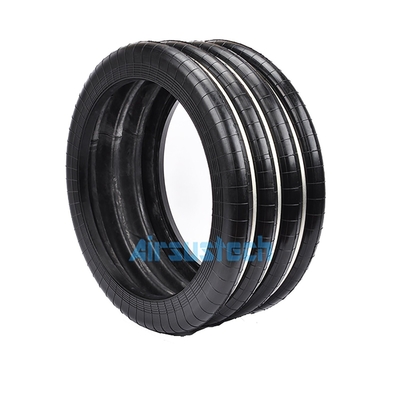

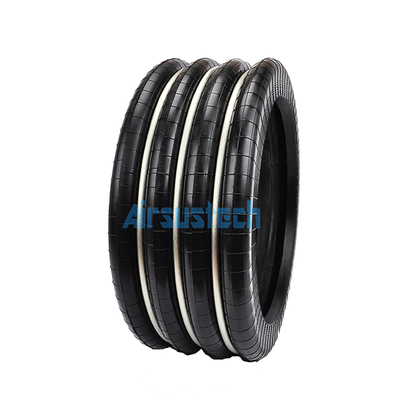

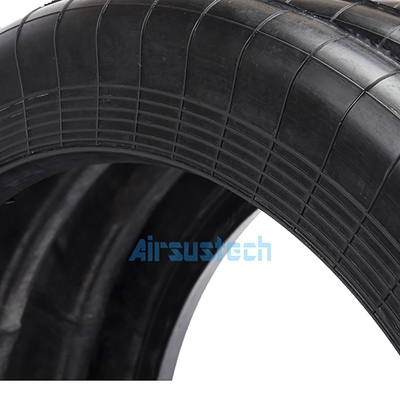

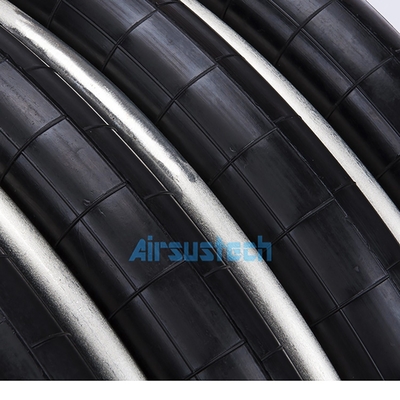

The related picture of F-500-4

F-500-4 Airsustech Air Spring Cross Yokohama S-500-4 Rubber Quadruple Bag
