Yokohama Punch Press S-450-3 Triple Convoluted Rubber Air Spring for Reduce Shock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	F-450-3

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	F-450-3	Quality:	100 % Tested
Yokohama:	S-450-3R	Transport Package:	Strong Cartons
Trademark:	GUOMAT	After-sales Service:	12 Months
Type:	Gas-Filled	Sample:	Available \| Customized Request
Highlight:	Yokohama Punch Press Air Spring , Reduce Shock Air Spring , Reduce Shock Rubber Air Spring

Yokohama Punch Press S-450-3 Triple Convoluted Rubber Air Spring for Reduce Shock

Product Introduction

GUOMAT rubber pneumatic tire is an indispensable accessory for self-powered type. Its main function is to reduce the working pressure of the pneumatic valve and stabilize it at a value, so that the door can obtain a stable pneumatic valve output power for adjustment and operation.

Other OEM Number

GUOMAT Part No.: F-450-3

YOKOHAMA S-450-3R

YOKOHAMA S 450 3R

YOKOHAMA S4503R

YOKOHAMA S-450-3

YOKOHAMA S 450 3

YOKOHAMA S450-3

F-450-3 Detailed Datas

Model Size	Height H(mm)			Common Maximum Travel(mm)	Compression Max. Outside Diameter (mm)	Standard height, approximate value at 0.49MPA internal pressure					Maximum Internal Pressure (MPA)	Internal Pressure Failure(MPA)
Model Size	Design Height	Max. Height	Min Height	Common Maximum Travel(mm)	Compression Max. Outside Diameter (mm)	Effective Area(cm2)	Volume(L)	Load(KN)	Dynamic Spring Constant(n/mm)	Natural Vibration Frequency(Hz)	Maximum Internal Pressure (MPA)	Internal Pressure Failure(MPA)
S-450-5R	276	456	156	±113	510	1590	43.6	80.0	588	1.4	0.69	3.9-4.9
S-450-4R	218	363	123	±90	510	1590	33.9	80.0	755	1.6	0.69	3.9-4.9
S-450-3R	160	270	90	±68	510	1590	24.3	80.0	1040	1.8	0.69	3.9-4.9
S-450-2R	102	172	57	±45	510	1590	14.7	80.0	1687	2.3	0.69	3.9-4.9
S-450-1R	72	117	40	±30	550	1590	11.9	80.0	2295	2.7	0.69	2.9-3.9

Other F Series Industrial Rubber Bellows

GUOMAT Part NO.	Japan YOKOHAMA Reference No.	Japan YOKOHAMA Reference No.	GUOMAT Part NO.	Japan YOKOHAMA Reference No.	Japan YOKOHAMA Reference No.
F-600-1	S-600-1R	S 600 1R	F-240-4	S-240-4R	S 240 4R
F-600-2	S-600-2R	S 600 2R	F-240-3	S-240-3R	S 240 3R
F-600-3	S-600-3R	S 600 3R	F-240-2	S-240-2R	S 240 2R
F-600-4	S-600-4R	S 600 4R	F-240-1	S-240-1R	S 240 1R
F-600-5	S-600-5R	S 600 5R	F-220-4	S-220-4R	S 220 4R
F-550-2	S-550-2R	S 550 2R	F-220-3	S-220-3R	S 220 3R
F-550-3	S-550-3R	S 550 3R	F-220-2	S-220-2R	S 220 2R
F-500-2	S-500-2R	S 500 2R	F-200-2	S-200-2R	S 200 2R
F-500-3	S-500-3R	S 500 3R	F-200-3	S-200-3R	S 200 3R
F-500-4	S-500-4R	S 500 4R	F-200-4	S-200-4R	S 200 4R
F-500-5	S-500-5R	S 500 5R	F-160-1	S-160-1R	S 160 1R
F-450-1	S-450-1R	S 450 1R	F-160-2	S-160-2R	S 160 2R
F-450-2	S-450-2R	S 450 2R	F-160-3	S-160-3R	S 160 3R
F-450-3	S-450-3R	S 450 3R	F-160-4	S-160-4R	S 160 4R
F-450-4	S-450-4R	S 450 4R	F-120-4	S-120-4R	S 120 4R
F-450-5	S-450-5R	S 450 5R	F-120-3	S-120-3R	S 120 3R
F-400-2	S-400-2R	S 400 2R	F-120-2	S-120-2R	S 120 2R
F-400-3	S-400-3R	S 400 3R	F-100-4	S-100-4R	S 100 4R
F-400-4	S-400-4R	S 400 4R	F-90-3	S-90-3R	S 90 3R
F-400-5	S-400-5R	S 400 5R	F-90-2	S-90-2R	S 90 2R
F-350-1	S-350-1R	S 350 1R	F-90-1	S-90-1R	S 90 1R
F-350-2	S-350-2R	S 350 2R	F-300-1	S-300-1R	S 300 1R
F-350-3	S-350-3R	S 350 3R	F-300-2	S-300-2R	S 300 2R
F-350-4	S-350-4R	S 350 4R	F-300-3	S-300-3R	S 300 3R
			F-300-4	S-300-4R	S 300 4R

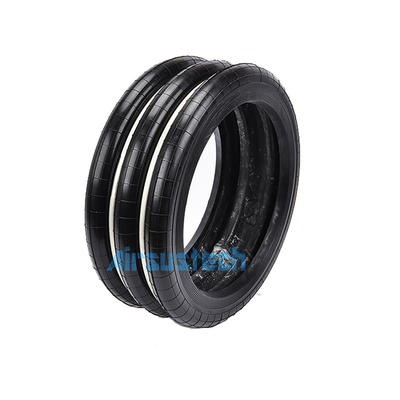

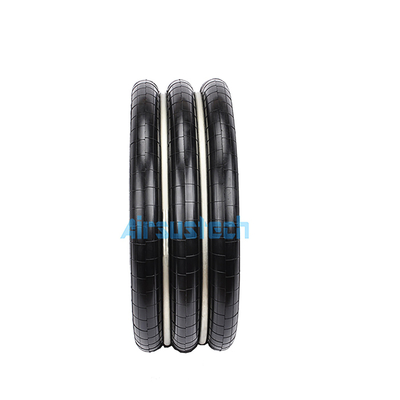

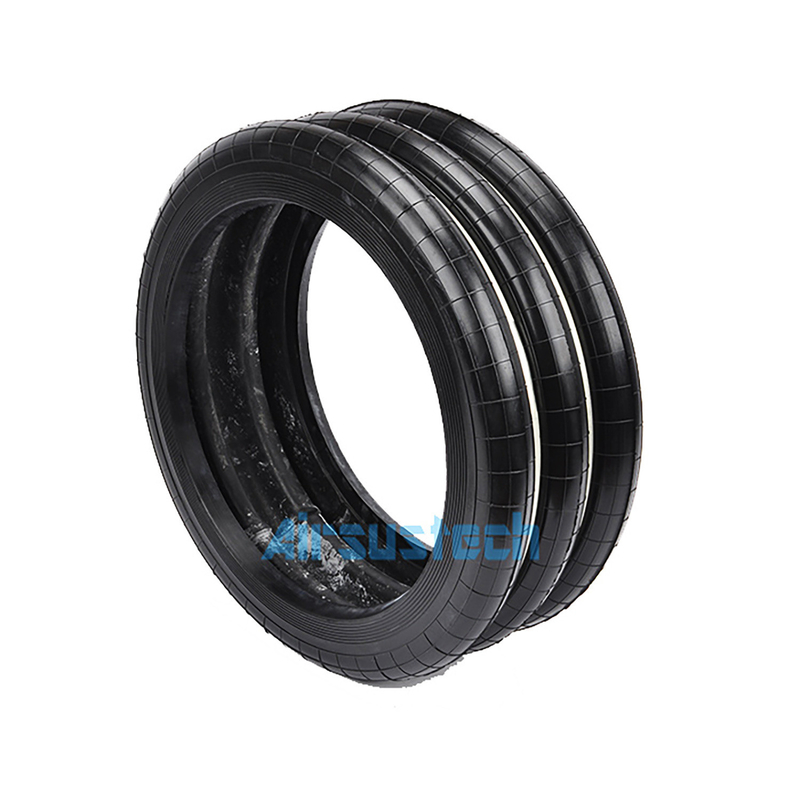

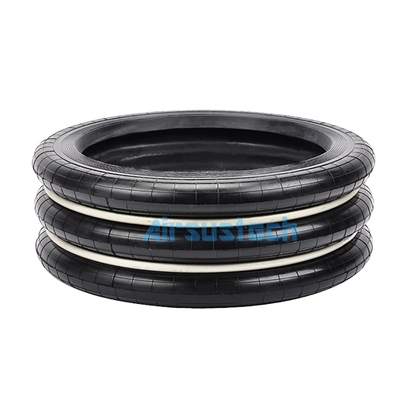

The Related Photos of F-450-3
