Guomat F-240-3 Cross Yokohama S-240-3 Convoluted Type Rubber Bellows

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	F-240-3

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Product Number:	F-240-3	Structure:	Triple Convoluted
Trademark:	GUOMAT	Part Number:	S-240-3R
Function:	Reduce Shock	Sample:	Available
Working Temperature:	-40℃+70℃	Production Process:	Vulcanization
Highlight:	Yokohama S-240-3 Convoluted Type Rubber Bellows , Guomat F-240-3 Convoluted Type Rubber Bellows

Hot Sale Guomat F-240-3 Cross Yokohama S-240-3 Convoluted Type Rubber Bellows

Yokohama Air Spring Technical Datas

Model Size	Height H(mm)			Common Maximum Travel(mm)	Compression Max. Outside Diameter (mm)	Standard height, approximate value at 0.49MPA internal pressure					Maximum Internal Pressure (MPA)	Internal Pressure Failure(MPA)
Model Size	Design Height	Max. Height	Min Height	Common Maximum Travel(mm)	Compression Max. Outside Diameter (mm)	Effective Area(cm2)	Volume(L)	Load(KN)	Dynamic Spring Constant(n/mm)	Natural Vibration Frequency(Hz)	Maximum Internal Pressure (MPA)	Internal Pressure Failure(MPA)
S-240-4R	206	316	111	±80	300	450	10.1	22.2	235	1.6	0.88	2.9-3.9
S-240-3R	152	232	82	±60	300	450	7.3	22.2	324	1.9	0.88	2.9-3.9
S-240-2R	98	148	53	±40	300	450	4.4	22.2	520	2.4	0.88	2.9-3.9
S-240-1R	72	110	40	±30	340	450	3.5	22.2	765	2.9	0.69	2.9-3.9

F-240-3 Replaces These Air Bellows

YOKOHAMA S-240-3R

YOKOHAMA S 240 3R

YOKOHAMA S2403R

YOKOHAMA S-240-3

YOKOHAMA S 240 3

YOKOHAMA S240-3

Application

Centrifugal Separators
Large Drying Machines
Vibratory Conveyors
Electronic Equipment
Compressors
Conveyor Loading Points
Textile Looms
Rotary Shaft Actuators
Conveyor or Transfer Systems
Vertical Lift Force for Platforms and Rotating Tables
Injection or Ejection of Parts in Manufacturing Equipment
Scissor Lifts

FAQ

Q: How long does it take to get product after placing the order?
A: The delivery time of your ordered product varies as per what you've ordered and the shipping method that you've chosen. The estimated delivery time is mentioned during the checkout process, so be carefree while shopping.

Q: How do you correctly identify the products you need?
A: Supply part number,we can check directly.
Engine and gearbox parts;if you don't know part code,try to found engine or gear model and number.

Q: Do you offer any warranty?
A: Yes, we offer ONE YEAR warranty on all of our products (new and used).

Q: How to guarantee your after sales service?
A: (1) Strict inspection during production.
(2) Recheck the products before shipment to ensure our packaging in good condition.
(3) Track and receive feedback from our customers.

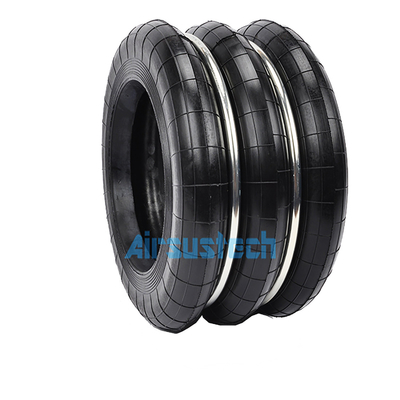

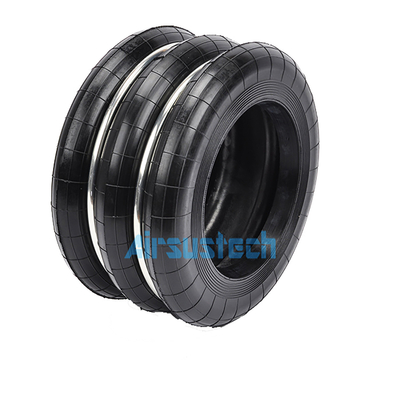

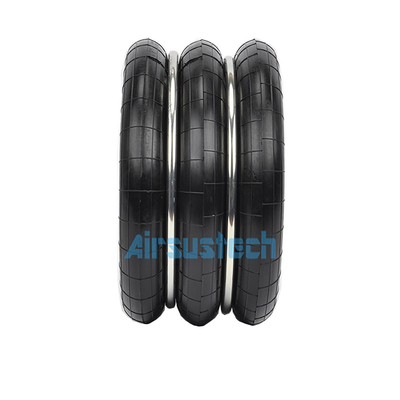

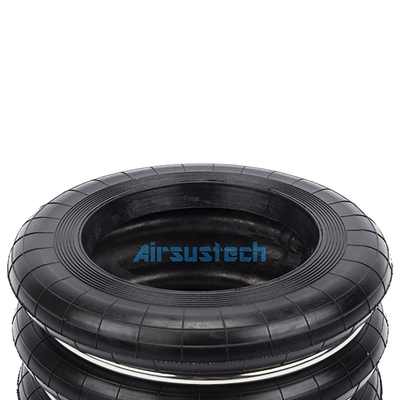

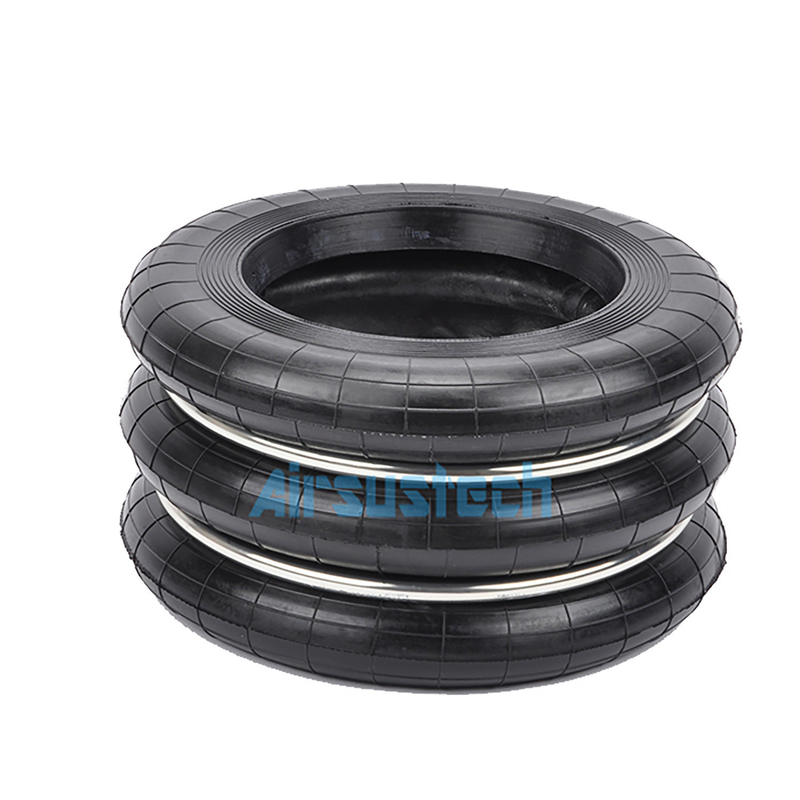

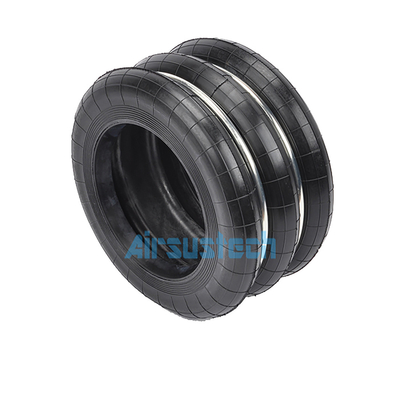

F-240-3 Related Pictures

Guomat F-240-3 Cross Yokohama S-240-3 Convoluted Type Rubber Bellows 0
