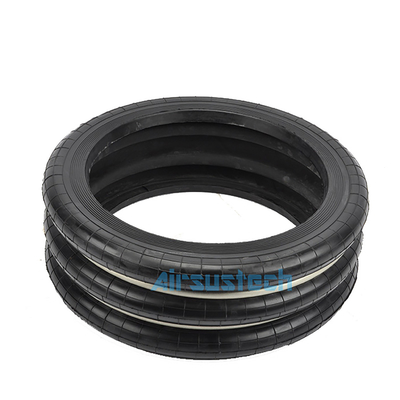

Guangzhou Guomat Air Spring F-200-3 Cross Yokohama S-200-3R Triple Type Bellows
Product Introduction
An air spring, also known as an airbag, air cylinder, or airbag cylinder, is a sealed container filled with compressed air, utilizing the gas's compressibility to provide elasticity. It typically features a double-convoluted design, comprising a rubber airbag reinforced with cords and compressed air inside. The inner layer is made from airtight rubber, while the outer layer is crafted from oil-resistant rubber. A steel waist ring located between the joints prevents radial expansion and avoids friction between them. Besides double-convoluted air springs, there are also single, triple, and quadruple-convoluted designs, with more convolutions offering greater elasticity.
OEM Cross References
AIRSUSTECH Part No.: F-200-3
YOKOHAMA S-200-3R
YOKOHAMA S 200 3R
YOKOHAMA S-200-3
YOKOHAMA S 200 3
YOKOHAMA S200-3R
YOKOHAMA S200-3

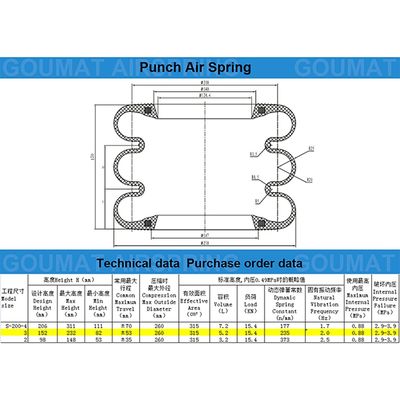

F-200-3 Detailed Technical Parameters
Height H(mm)
Design Height: 152mm
Max. Height: 232mm
Min Height: 82mm
Common Maximum Travel(mm): ±53mm
Compression Max. Outside Diameter (mm): 260mm
Standard height, approximate value at 0.49MPA internal pressure
Efective Area(cm2): 315
Volume(L): 5.2
Load (KN):15.4
Dynamic Spring Constant(n/mm): 235
Natural Vibration Frequence(Hz): 2.0
Maximum Internal Pressure (MPA): 0.88
Internal Pressure Failure(MPA): 2.9-3.9
Other Types of F Series Industrial Air Springs
|
GUOMAT NO.
|
Yokohama Reference No.
|
Hight H(mm)
|
Commonly Maximum Stroke(mm)
|
The Largest Diameter When Compressed(mm)
|
|
Design High(mm)
|
Maximum High(mm)
|
Minimum Height(mm)
|
|
F-600-1
|
S-600-1
|
72
|
122
|
40
|
±30
|
700
|
|
F-600-2
|
S-600-2
|
102
|
172
|
57
|
±45
|
660
|
|
F-600-3
|
S-600-3
|
160
|
270
|
90
|
±68
|
660
|
|
F-600-4
|
S-600-4
|
218
|
363
|
123
|
±90
|
660
|
|
F-600-5
|
S-600-5
|
276
|
456
|
156
|
±113
|
660
|
|
F-550-2
|
S-550-2
|
102
|
172
|
50
|
±45
|
610
|
|
F-550-3
|
S-550-3
|
160
|
270
|
90
|
±68
|
610
|
|
F-500-2
|
S-500-2
|
102
|
172
|
57
|
±45
|
560
|
|
F-500-3
|
S-500-3
|
160
|
270
|
90
|
±68
|
560
|
|
F-500-4
|
S-500-4
|
218
|
363
|
123
|
±90
|
560
|
|
F-500-5
|
S-500-5
|
276
|
456
|
156
|
±113
|
560
|
|
F-450-1
|
S-450-1
|
72
|
117
|
40
|
±30
|
510
|
|
F-450-2
|
S-450-2
|
102
|
172
|
57
|
±45
|
510
|
|
F-450-3
|
S-450-3
|
160
|
270
|
90
|
±68
|
510
|
|
F-450-4
|
S-450-4
|
218
|
363
|
123
|
±90
|
510
|
|
F-450-5
|
S-450-5
|
276
|
456
|
156
|
±113
|
510
|
|
F-400-2
|
S-400-2
|
102
|
167
|
57
|
±45
|
460
|
|
F-400-3
|
S-400-3
|
160
|
260
|
90
|
±68
|
460
|
|
F-400-4
|
S-400-4
|
218
|
348
|
123
|
±90
|
460
|
|
F-400-5
|
S-400-5
|
276
|
435
|
156
|
±113
|
460
|
|
F-350-1
|
S-350-1
|
72
|
117
|
40
|
±30
|
450
|
|
F-350-2
|
S-350-2
|
102
|
160
|
55
|
±42
|
410
|
|
F-350-3
|
S-350-3
|
160
|
250
|
85
|
±65
|
410
|
|
F-350-4
|
S-350-4
|
218
|
336
|
118
|
±85
|
410
|
|
F-300-1
|
S-300-1
|
72
|
117
|
40
|
±30
|
400
|
|
F-300-2
|
S-300-2
|
98
|
158
|
53
|
±40
|
360
|
|
F-300-3
|
S-300-3
|
152
|
242
|
82
|
±60
|
360
|
|
F-300-4
|
S-300-4
|
206
|
326
|
111
|
±80
|
360
|
|
F-240-4
|
S-240-4
|
206
|
316
|
111
|
±80
|
300
|
|
F-240-3
|
S-240-3
|
152
|
232
|
82
|
±60
|
300
|
|
F-240-2
|
S-240-2
|
98
|
148
|
53
|
±40
|
300
|
|
F-240-1
|
S-240-1
|
72
|
110
|
40
|
±30
|
340
|
|
F-220-4
|
S-220-4
|
206
|
311
|
111
|
±80
|
280
|
|
F-220-3
|
S-220-3
|
152
|
232
|
82
|
±60
|
280
|
|
F-220-2
|
S-220-2
|
98
|
148
|
53
|
±40
|
280
|
|
F-200-2
|
S-200-2
|
98
|
148
|
53
|
±35
|
260
|
|
F-200-4
|
S-200-4
|
206
|
311
|
111
|
±70
|
260
|
|
F-160-1
|
S-160-1
|
72
|
102
|
40
|
±25
|
220
|
|
F-160-2
|
S-160-2
|
98
|
148
|
53
|
±35
|
220
|
|
F-160-3
|
S-160-3
|
152
|
227
|
82
|
±53
|
220
|
|
F-160-4
|
S-160-4
|
206
|
306
|
111
|
±70
|
220
|
|
F-120-4
|
S-120-4
|
206
|
306
|
111
|
±70
|
180
|
|
F-120-3
|
S-120-3
|
152
|
227
|
82
|
±53
|
180
|
|
F-120-2
|
S-120-2
|
98
|
148
|
53
|
±35
|
180
|
|
F-100-4
|
S-100-4
|
206
|
296
|
121
|
±60
|
160
|
|
F-90-3
|
S-90-3
|
152
|
222
|
87
|
±45
|
160
|
|
F-90-2
|
S-90-2
|
98
|
143
|
58
|
±30
|
160
|
|
F-90-1
|
S-90-1
|
76
|
106
|
46
|
±30
|
125
|

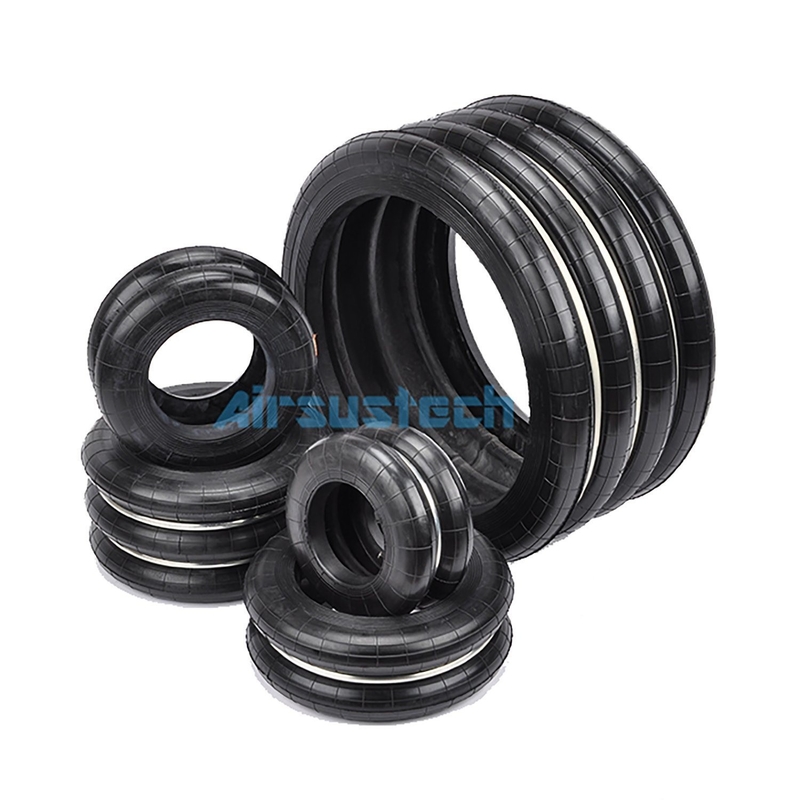

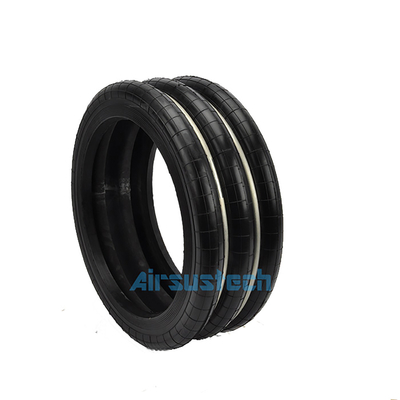

The Related Pictures of F-200-3
