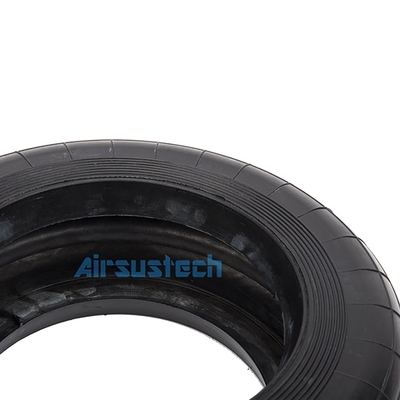

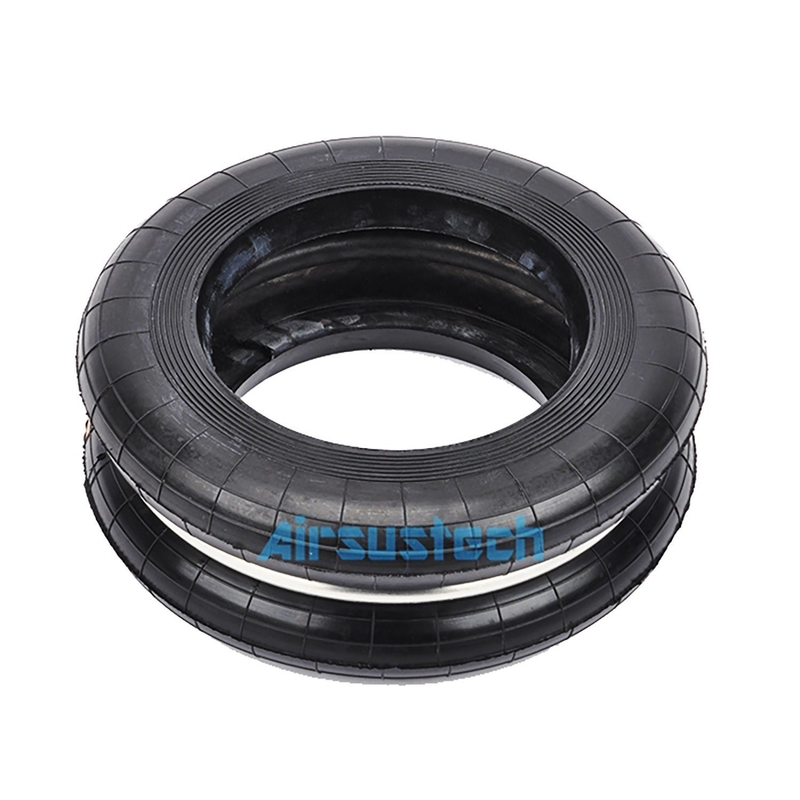

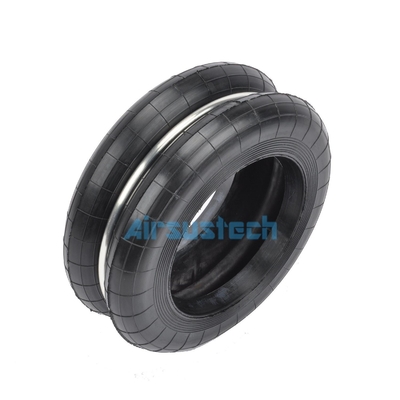

Yokohama S-400-2R S400-2R Guomat F-400-2 Rubber Punch Press Air Spring

Yokohama S-400-2R S400-2R Guomat F-400-2 Rubber Punch Press Air Spring

Information

OE NO.: Yokohama Shock Absorbers S-400-2
Spring Material: Rubber
Spring Type: Air Spring
Size: 400-2
Warranty:12 months
Place of Origin: China
Yokohama air spring
For Yokohama from Japan
Yokohama air suspension

OEM Cross reference

AIRSUSTECH Part No.: F-400-2

YOKOHAMA S-400-2R

YOKOHAMA S 400 2R

YOKOHAMA S-400-2

YOKOHAMA S 400 2

YOKOHAMA S400-2

YOKOHAMA S 400 2

YOKOHAMA S400-2R

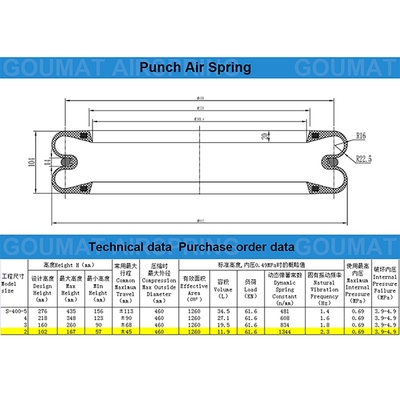

Specifications and Detailed Technical Parameters: F-400-2

Design Height: 102mm

Max. Height: 167mm

Min Height: 57mm

Maximum stroke(mm): ±45

Max diameter(mm) :460

Standard Height,Internal Pressure 0.49 M pa When The General Value

Effective Area (Cm2): 1260

Volume(L): 11.9

Load (KN):61.6

Dynamic Spring Parameters (N/mm): 1344

Natural Frequency (Hz): 2.3

Max inner preesure limited (Mpa): 0.69

Burst inner pressure (Mpa): 3.9-4.9

The self-sealing type has excellent durability due to less rubber deformation during expansion and contraction.

Operation Precautions

1. For the stroke of the air spring, please refer to the range of the common maximum stroke listed
2. If the air spring is used at a height higher than the maximum height, it may cause the upper and lower plates and the air spring to fall off, and the internal air will quickly leak out, causing danger. Therefore, appropriate control measures must be taken during use.
3. For the commonly used maximum internal pressure of air springs, please refer to the listed internal pressure range. In order to ensure durability, it is recommended to control the internal pressure within 0.5MPA, but in the self-sealing type, if the internal pressure is too low to ensure sealing, the internal pressure should be kept above 0.1MPA.
