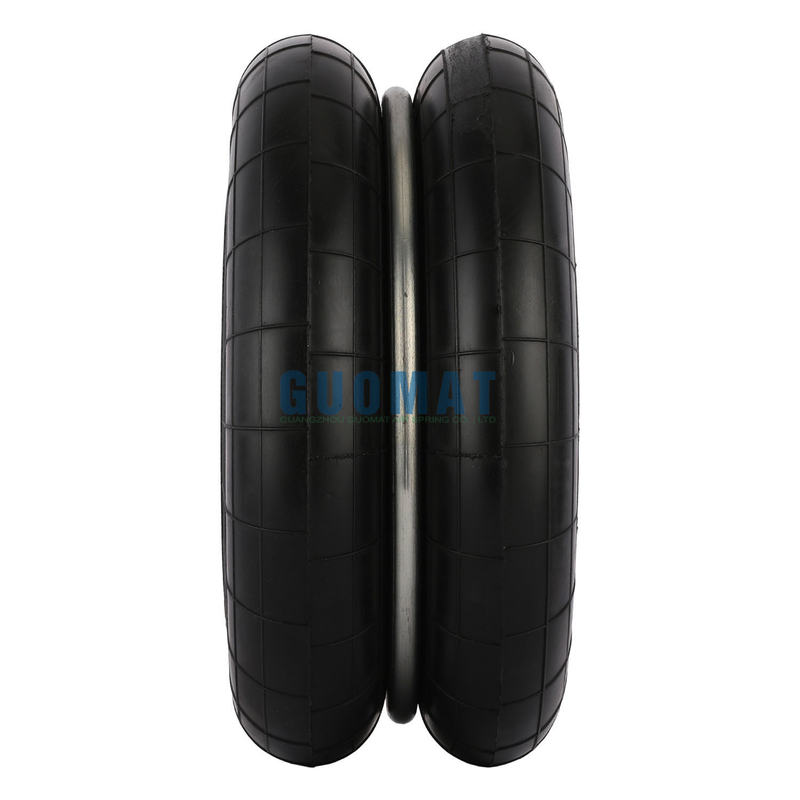

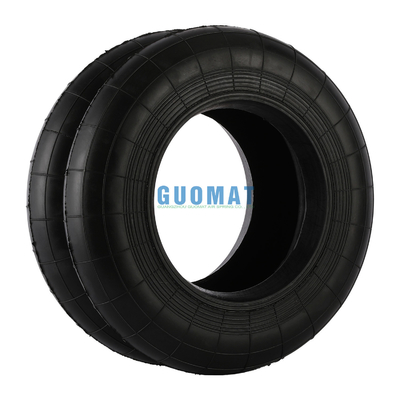

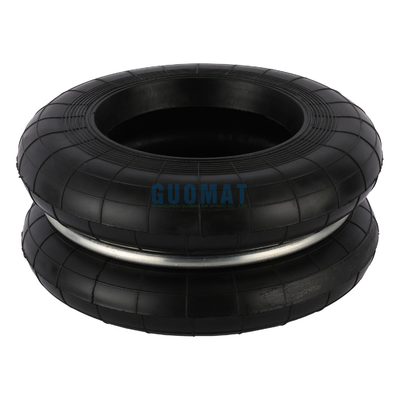

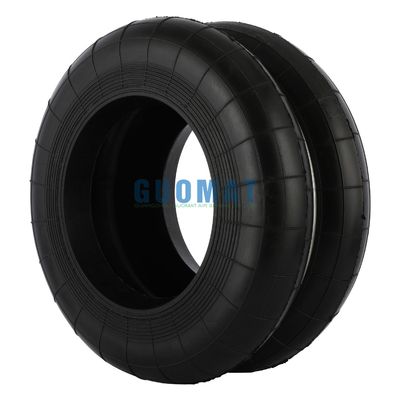

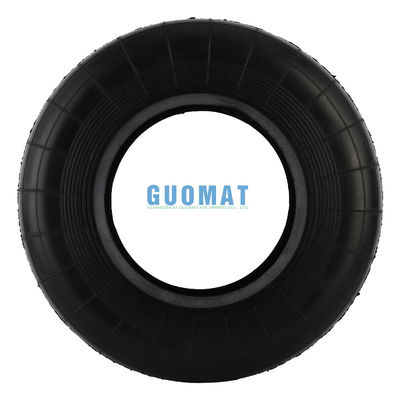

Guomat F-200-2 Rubber Air Bellow S-200-2r Yokohama Double Convoluted Air Spring

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	F-200-2

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	F-200-2	Structure:	Double Convoluted
Condition:	Brand New	Application:	Punch Equipment
Trademark:	GUOMAT	Warranty:	1 Year
YOKOHAMA:	S-200-2R	Material:	Natural Rubber
Highlight:	Yokohama Double Convoluted Air Spring , Guomat Double Convoluted Air Spring

Guomat F-200-2 Rubber Air Bellow S-200-2r Yokohama Double Convoluted Air Spring

The Detailed Datas of F-200-2

Design Height(mm): 98
Max Height(mm): 148
Min Height(mm): 53
Common Maximum Trace(mm): ±35
Compression Max Outside Diameter(mm): 260
Effective Area(cm2): 315
Volume(L): 3.2
Load(KN): 15.4
Dynamic Spring Constant(n/mm): 373
Natural Vibration Frequency(Hz): 2.5
Maximum Internal Pressure(Mpa): 0.88
Internal Pressure Failure(Mpa): 2.9-3.9

Working pressure: < 0.7Mpa
Burst pressure: > 1.6Mpa
Endurance cycle: > 10"
Temperature: -35ºC ~+60ºC

Product Advantages

Compared with spring, air spring shock absorbers have the following advantages

Excellent shock absorption
Stable shock absorption
Precise height control
Wide range of sizes
Extend equipment life
Effectively reduce noise
Air spring shock absorbers are widely used

Product Applications

Carton Making Machine
Mineral Sample Pulverizers
Spin Washing Machines
Expanded Metal Machine
Concrete Brick Machine
Rotating Table with the Air Spring
Crushing Machine
Concrete Screening Machine
Carpet Extraction Machine
Commercial Laundry Machines
Coordinate Measuring Tables and Machinery
Centrifugal Separators
Large Drying Machines
Vibratory Conveyors
Electronic Equipment
Compressors

Other Types of Air Suspensions/Air Springs

GUOMAT Part NO.	Japan YOKOHAMA Reference No.	Japan YOKOHAMA Reference No.	GUOMAT Part NO.	Japan YOKOHAMA Reference No.	Japan YOKOHAMA Reference No.
F-600-1	S-600-1R	S 600 1R	F-240-4	S-240-4R	S 240 4R
F-600-2	S-600-2R	S 600 2R	F-240-3	S-240-3R	S 240 3R
F-600-3	S-600-3R	S 600 3R	F-240-2	S-240-2R	S 240 2R
F-600-4	S-600-4R	S 600 4R	F-240-1	S-240-1R	S 240 1R
F-600-5	S-600-5R	S 600 5R	F-220-4	S-220-4R	S 220 4R
F-550-2	S-550-2R	S 550 2R	F-220-3	S-220-3R	S 220 3R
F-550-3	S-550-3R	S 550 3R	F-220-2	S-220-2R	S 220 2R
F-500-2	S-500-2R	S 500 2R	F-200-2	S-200-2R	S 200 2R
F-500-3	S-500-3R	S 500 3R	F-200-3	S-200-3R	S 200 3R
F-500-4	S-500-4R	S 500 4R	F-200-4	S-200-4R	S 200 4R
F-500-5	S-500-5R	S 500 5R	F-160-1	S-160-1R	S 160 1R
F-450-1	S-450-1R	S 450 1R	F-160-2	S-160-2R	S 160 2R
F-450-2	S-450-2R	S 450 2R	F-160-3	S-160-3R	S 160 3R
F-450-3	S-450-3R	S 450 3R	F-160-4	S-160-4R	S 160 4R
F-450-4	S-450-4R	S 450 4R	F-120-4	S-120-4R	S 120 4R
F-450-5	S-450-5R	S 450 5R	F-120-3	S-120-3R	S 120 3R
F-400-2	S-400-2R	S 400 2R	F-120-2	S-120-2R	S 120 2R
F-400-3	S-400-3R	S 400 3R	F-100-4	S-100-4R	S 100 4R
F-400-4	S-400-4R	S 400 4R	F-90-3	S-90-3R	S 90 3R
F-400-5	S-400-5R	S 400 5R	F-90-2	S-90-2R	S 90 2R
F-350-1	S-350-1R	S 350 1R	F-90-1	S-90-1R	S 90 1R
F-350-2	S-350-2R	S 350 2R	F-300-1	S-300-1R	S 300 1R
F-350-3	S-350-3R	S 350 3R	F-300-2	S-300-2R	S 300 2R
F-350-4	S-350-4R	S 350 4R	F-300-3	S-300-3R	S 300 3R
			F-300-4	S-300-4R	S 300 4R

Company Profile

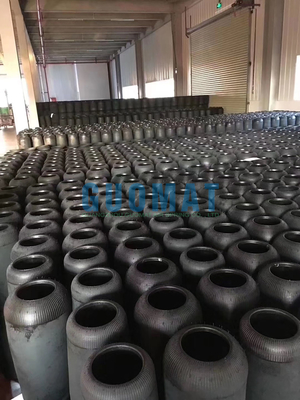

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
