Natural Rubber Bellow 578-91-3-201 by Goodyear Single Type Air Spring Assembly

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B9-202

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	1B9-202	Structure:	Single Convoluted
Quality:	100 % Tested	Transport Package:	Strong Cartons
Trademark:	GUOMAT	Warranty:	12 Months
Pressure Ability:	0 Bar To 8 Bar	Port Size:	1/4 NPT
Highlight:	578913201 Bellow Suspension , Goodyear 578913201 Bellow Suspension

Natural Rubber Bellow 578-91-3-201 by Goodyear Single Type Air Spring Assembly

Refer Number

Goodyear: 1B9-202

Goodyear: 1B9202

Goodyear: 578 91 3 201

Goodyear: 578-91-3-201

Goodyear: 578913201

1B 9×5 Technical Datas

Nut/blind nut Top plate screw (nut) teeth: 2 x 3 / 8-16UNC

Top plate screw center distance: 89 mm

Bottom cover plate screw (nut) teeth: 2 x 3 / 8-16UNC

Bottom plate screw center distance: 89 mm

Top plate diameter (width): 160 mm, bottom cover diameter (width): 160 mm

Bell-shaped rubber bellows rubber bellows diameter: 222 mm

Compression height: 100 mm / 4.1 inches

Maximum height: 160 mm working stroke: 60 mm

Bumper block/bumper block without bumper

Belt loop/belt loop with belt loop: without belt loop

Min. pressure: 0 bar

Return force to min.height: ≤200N

Overall weight with clamped plates: 2.3kg

Pneumatic application-static characteristic values

Force F[KN]

Pressure p [bar]		3	4	5	6	7	8	Vol. V [l]
Height H[mm]	120	4.5	6.2	8.2	10.4	12.1	13.8	2.8
	110	5.5	7.5	9.6	11.9	14.0	15.7	2.7
	100	6.3	8.6	11.0	13.4	15.5	17.5	2.3
	90	7.0	9.4	12.1	14.6	17.0	19.2	2.2
	80	7.6	10.2	13.0	15.7	18.2	20.6	1.8
	70	8.1	10.9	13.6	16.5	19.3	21.9	1.6
	60	8.5	11.3	14.2	17.1	20.1	23.0	1.3

Product Applications

vehicle applications
automation technology
conveyor systems
agricultural machinery
food industry
paper and textile equipment
pantograph drives
sawmill machinery
punch and forming presses

We Also Sell Other Goodyear Convoluted Air Springs

1B12-305	2B6-530	2B6-531	3B12-304
1B14-350	2B6-532	2B6-535	3B14-351
1B14-352	2B6-536	2B7-540	3B14-354
1B14-364	2B7-541	2B7-542	3B15-376
1B15-376	2B7-545	2B7-546	3B15-378
1B15-378	2B8-550	2B8-552	3B12-305
1B12-313	2B8-553	2B8-554	3B14-353
1B14-351	2B9-200	2B9-201	3B15-375
1B14-362	2B9-204	2B9-205	3B15-377
1B15-375	2B9-216	2B9-250
1B15-377	2B9-251	2B9-253
	2B12-309	2B12-218
	2B12-425	2B12-429
	2B12-437	2B12-416
	2B14-352	2B14-353
	2B14-354	2B14-355
	2B14-362	2B14-363
	2B14-452	2B15-375
	2B15-376	2B15-377
	2B15-378	2B19-8433
	2B22-8539

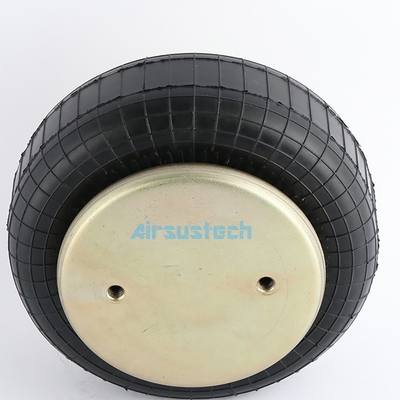

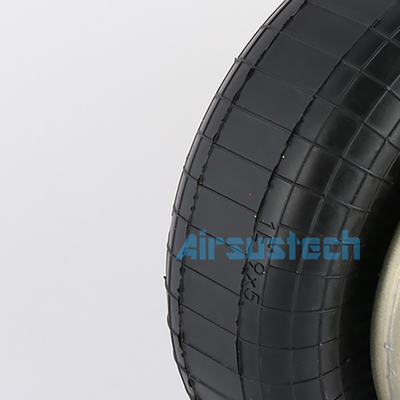

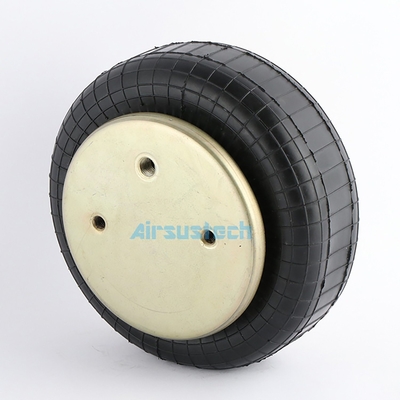

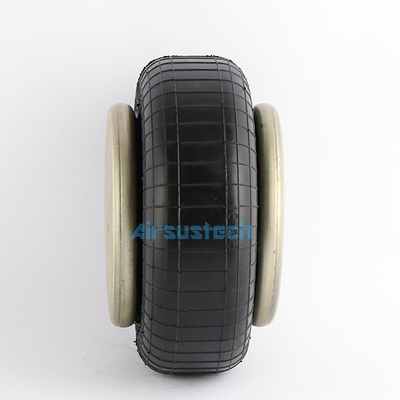

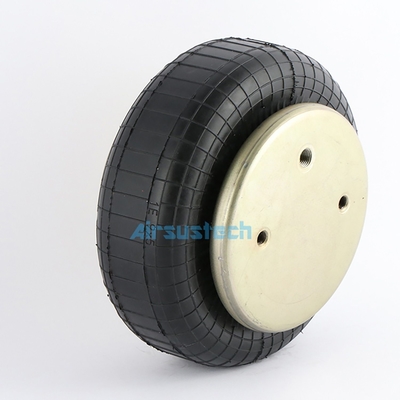

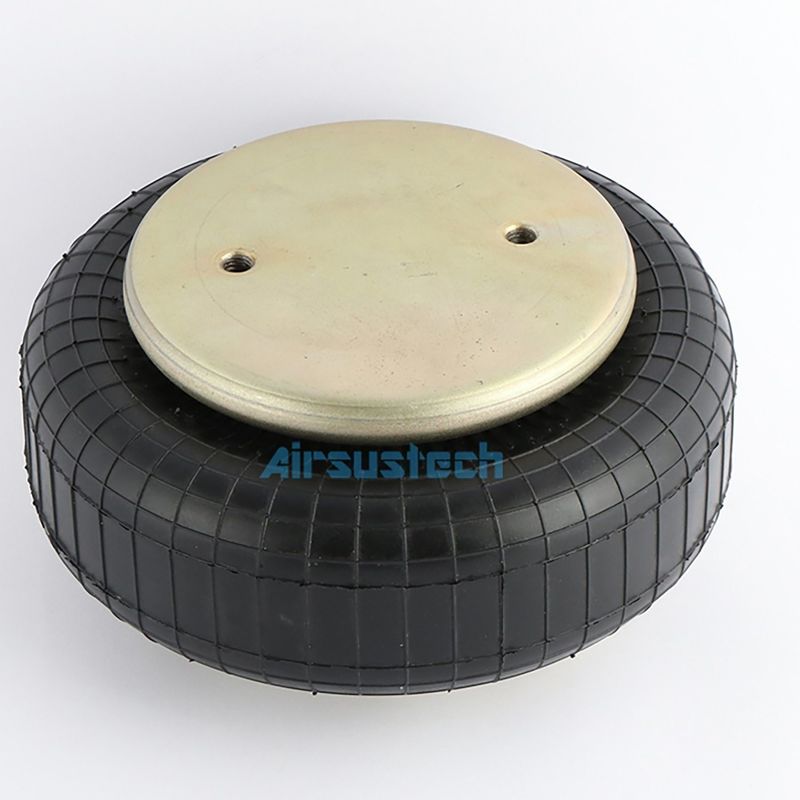

The Pictures of 1B9×5 Air Bellow

Natural Rubber Bellow 578-91-3-201 by Goodyear Single Type Air Spring Assembly 0
