Guomat 1B8×4 Replaces Contitech FS120-10 Single Type Air Spring

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B8×4

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	1B8×4	Structure:	Single Convoluted
Quality:	100 % Tested	Trademark:	GUOMAT
Firestone:	W01-358-7564	Goodyear:	1B8-550
Full Stroke:	90 MM	Air Connection:	1/4NPTF
Highlight:	FS120-10 Single Type Air Spring , Guomat 1B8×4 Single Type Air Spring

Guangzhou Guomat 1B8×4 Replaces Contitech FS120-10 Single Type Air Spring

Alternative Items

Firestone: W01-358-7564
Firestone: W01 358 7564
Firestone: W013587564
Goodyear: 1B8-550
Goodyear: 1B8 550
Contitech: FS120-10
Contitech: FS120 10
Contitech: FS12010

The Detailed Specifications of 1B8×4

The Max. Diameter	230mm
Air hole/air inlet	1/4 NPTF
Working stroke	maximum 140 mm to minimum 50 mm
Top plate screw (nut) teeth	2×3/8-16UNC
Bottom plate screw (nut) teeth	2×3/8-16UNC
Top cover diamete	135 mm
Bottom cover diameter	135mm
Screw center distance	70mm
The air hole distance between the nuts	35mm

Pneumatic application-static characteristic values
Force F[KN]

Pressure p [bar]		3	4	5	6	7	8	Vol. V [l]
Height H[mm]	120	3.1	4.3	5.6	6.9	8.0	9.2	1.9
	110	3.9	5.3	6.8	8.3	9.6	10.9	1.8
	100	4.5	6.1	7.9	9.7	11.0	12.4	1.7
	90	5.0	6.8	8.9	10.8	12.2	13.8	1.5
	80	5.5	7.4	9.7	11.6	13.3	15.0	1.3
	70	5.9	7.9	10.3	12.3	14.2	16.0	1.1
	60	6.3	8.2	10.7	13.0	15.0	17.0	0.9

GUOMAT Air Spring Key Advantages

Premium Material Construction: Featuring high-grade metal alloys and advanced composite materials, the 1B8×4 air springs are built to withstand extreme stress, corrosion, and environmental wear, guaranteeing maximum load-bearing capacity and sustainable performance even under rigorous conditions.
Certified Excellence: Rigorously tested and certified by global regulatory bodies, these air springs meet stringent safety and quality standards, ensuring 100% compliance with industry benchmarks for reliability and user safety.
Innovative Technology: Equipped with state-of-the-art damping mechanisms and precision-engineered components, they maintain consistent responsiveness across diverse terrains and operational cycles.

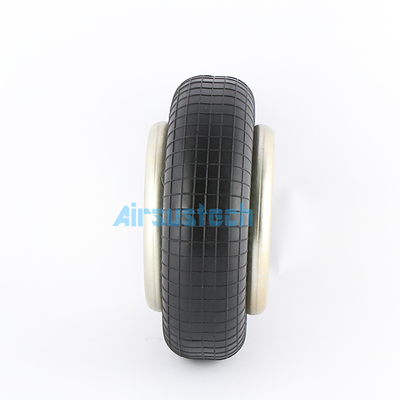

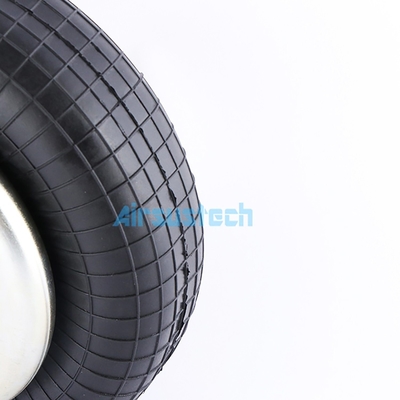

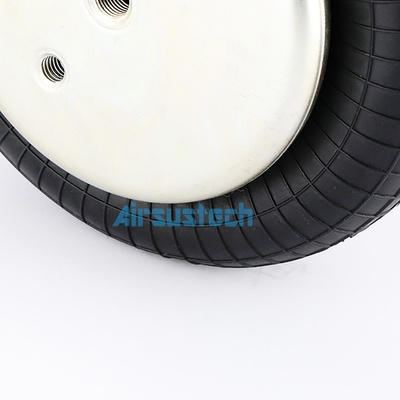

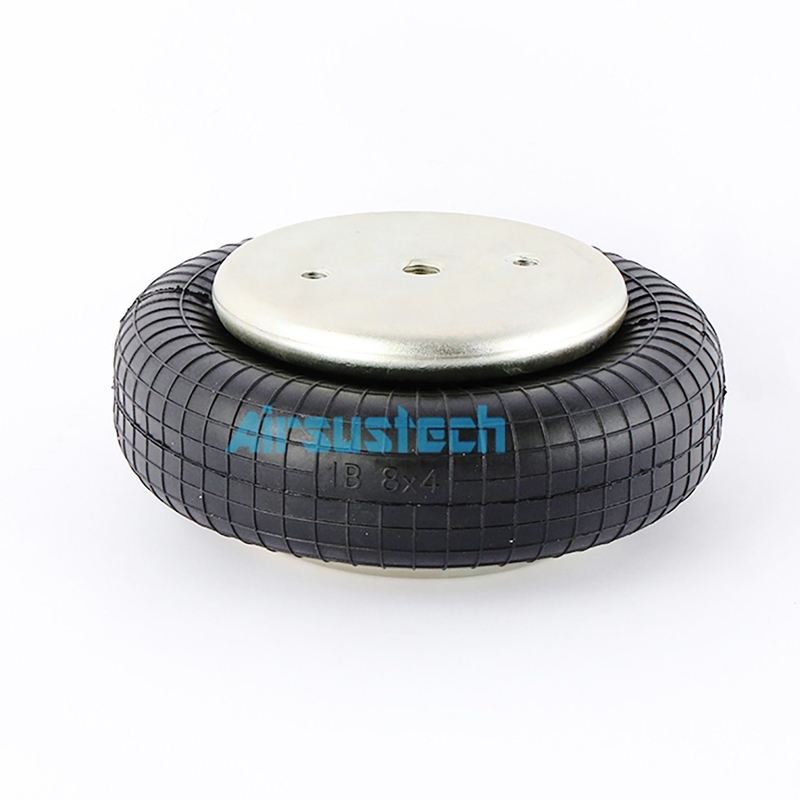

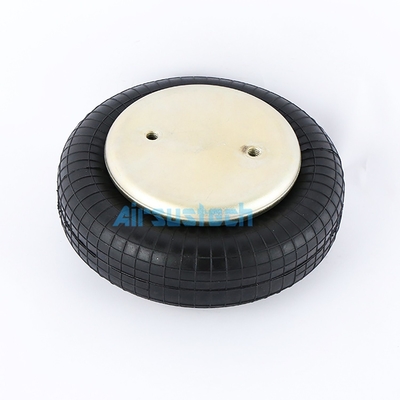

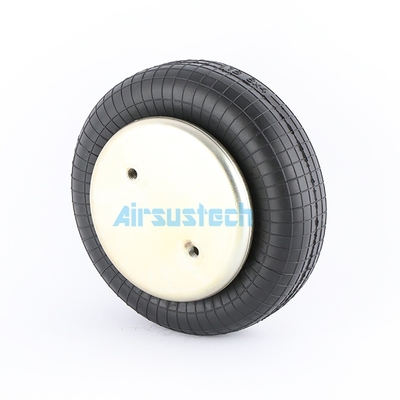

1B8×4 Air Bellow Real Pictures

Guomat 1B8×4 Replaces Contitech FS120-10 Single Type Air Spring 0

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
Guomat 1B8×4 Replaces Contitech FS120-10 Single Type Air Spring 1
