Goodyear 1B12-300 Helper Air Spring Contitech FS 330-11474 Convoluted Air Bellow

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B 5330

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	1B 5330	Structure:	Single Cylinder
Quality:	100 % Tested	Fuction:	Reduce Shock
Fire-Stone:	W01-358-7008	Transport Package:	Strong Cartons
Trademark:	GUOMAT	After-sales Service:	12 Months
Highlight:	Goodyear 1B12-300 Helper Air Spring , Contitech FS 330-11474 Helper Air Spring

Goodyear 1B12-300 Helper Air Spring Contitech FS 330-11474 Convoluted Air Bellow

Product Introduction

Air springs have been used in heavy duty vehicle suspension systems for nearly a century, where they have been able to provide usefulness by taking advantage of the compressed air required for vehicle braking systems. The air springs have provided a two-fold advantage over mechanical leaf- or coil-springs. One advantage with air suspension is the extra comfort provided by being able to vary the air pressure inside the spring, which changes the spring rate, and therefore, ride quality. Additionally, because variable control over air pressure adjusts the deck or trailer height, aligning loading docks to the level of the deck is possible when dock plates are unavailable.

OEM Cross References

Firestone:W01-358-7008
Firestone: W01 358 7008
Firestone: W013587008
Contitech: FS 330-11 474
Contitech: FS 330 11 474
Contitech: FD 33011474
Goodyear: 1B12-300
Goodyear: 1B12-313
Triangle: 6374/4474
Holland: 90557226

The Detailed Specifications

The Max. Diameter	325mm
Air hole/air inlet	1/4 N P.T.F.
Working stroke	maximum 160 mm to minimum 55 mm
Top plate screw (nut) teeth	2 x 3 / 8-16UNC
Bottom plate screw (nut) teeth	2 x 3 / 8-16UNC
Top cover diamete	9.00 inches / 231 mm
Bottom cover diameter	9.00 inches / 231 mm
Screw center distance	157.5 mm
The air hole distance between the nuts	73 mm

Pneumatic application-static characteristic values
Force F[KN]

Pressure p [bar]		3	4	5	6	7	8	Vol. V [l]
Height H[mm]	130	10.7	14.2	17.8	21.8	25.4	29.0	7.0
	120	11.9	15.7	19.6	23.8	27.8	31.8	6.3
	110	12.7	16.9	21.1	25.8	30.1	34.4	5.8
	100	13.6	18.1	22.7	27.6	32.1	36.7	5.6
	90	14.4	19.2	24.0	29.1	34.0	38.9	5.3
	80	15.0	20.2	25.2	30.5	35.5	40.6	4.9
	70	15.5	20.9	26.2	31.6	36.9	42.1	4.3
	60	16.0	21.6	27.1	32.6	38.0	43.3	3.9

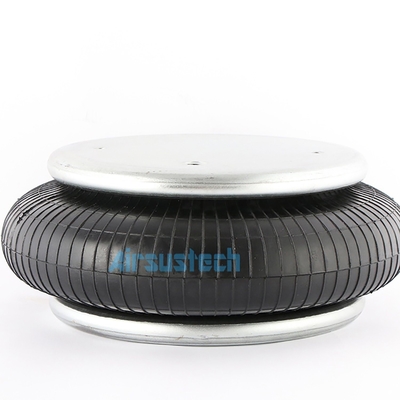

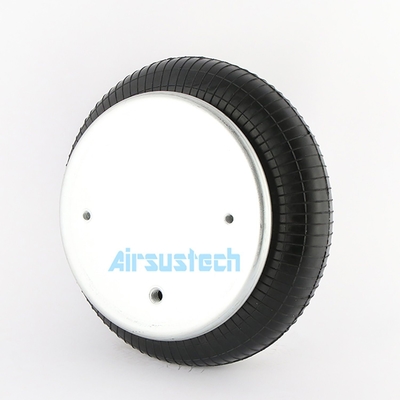

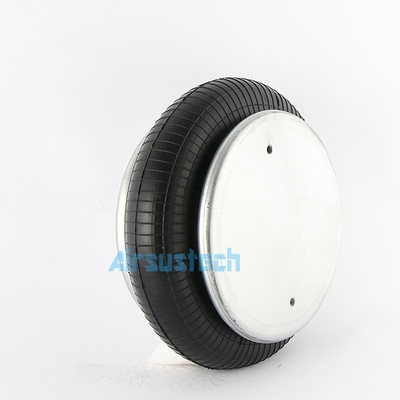

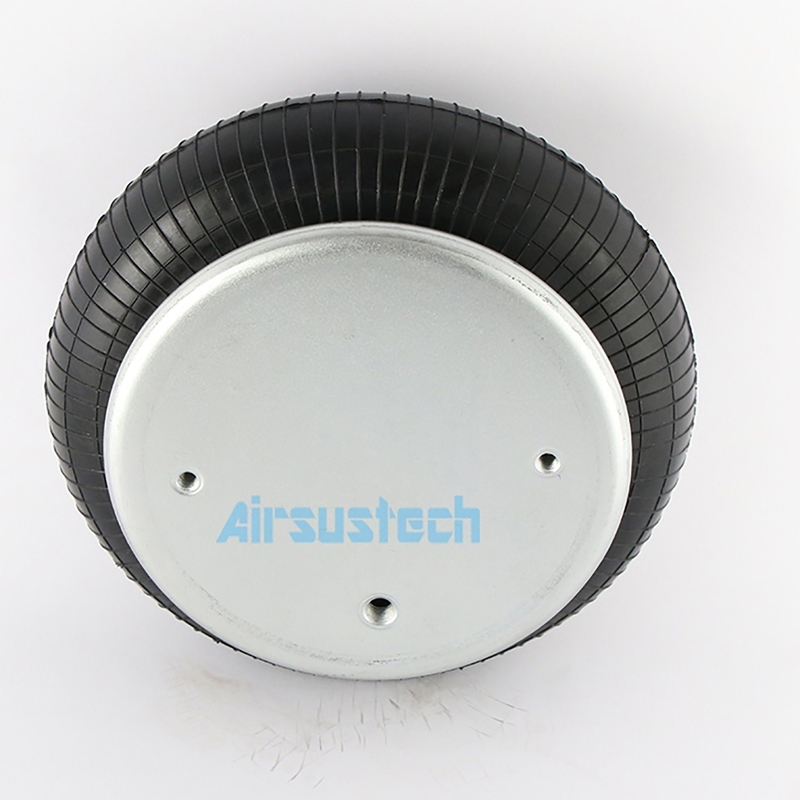

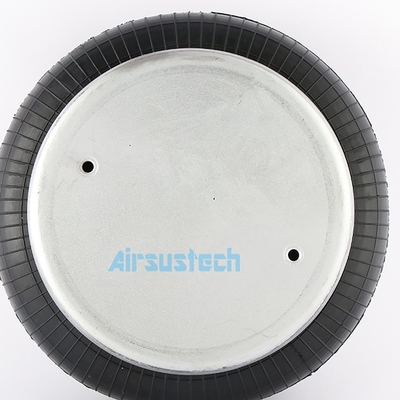

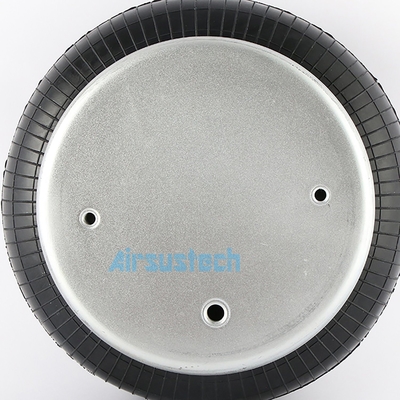

The Reated Pictures

Goodyear 1B12-300 Helper Air Spring Contitech FS 330-11474 Convoluted Air Bellow 0
