Industrial Air Rubber Bellow Phoenix SP1B04 Pneumatic Air Spring G1/8 Port Size

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B4060

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	1B4060	Structure:	Single Convoluted Air Spring
Purpose:	Reduce Shock	Transport Package:	Strong Cartons
Trademark:	GUOMAT	Operation:	Gas-filled
Ships From:	Any Port In China	Sample:	Available
Highlight:	Phoenix SP1B04 Pneumatic Air Spring , Industrial Pneumatic Air Spring

Industrial Air Rubber Bellow Phoenix SP1B04 Pneumatic Air Spring G1/8 Port Size

Refer Numbers

Contitech: FS 40-6 1/8 M8
Contitech: FS40-6 1/8 M8
Contitech: FS 40 6 1/8 M8
Contitech: FS40 6 1/8 M8
Phoenix: SP 1 B 04
Phoenix: SP1B 04
Phoenix: SP1B04
Weforma: WBE 100-E1
Weforma: WBE 100 E1
Weforma: WBE 100E1

The Detailed Specifications

The Max. Diameter	145mm
Air hole/air inlet	G1/8
Working stroke	maximum 110 mm to minimum 50 mm
Top plate screw (nut) teeth	M8×1.25
Bottom plate screw (nut) teeth	2 x M8×1.25
Top cover diamete	90 mm
Bottom cover diameter	90 mm
Screw center distance	20 mm
The air hole distance between the nuts	together

Pneumatic application-static characteristic values
Force F[KN]

Pressure p [bar]		3	4	5	6	7	8	Vol. V [l]
Height H[mm]	100	1.2	1.6	2.0	2.5	3.0	3.4	0.6
	90	1.7	2.2	2.8	3.4	3.9	4.4	0.5
	80	2.1	2.8	3.5	4.2	4.9	5.3	0.5
	70	2.3	3.2	3.9	4.7	5.4	6.2	0.4
	60	2.6	3.5	4.3	5.2	6.1	6.9	0.3

Product Advantages

1. Improve the ride comfort of the vehicle.

2. Improve the stability of vehicle driving control.

3. Enhance the vehicle driving power and braking force on bumpy road.

4. The body height remains the same, will not increase or decrease with the load, reduce or increase.

5. Prolong the service life of tires and brake discs.

6. Reduce electrical, air conditioning, exhaust system, bridge, body and chassis maintenance costs.

7. Prolong the service life of the vehicle and increase the depreciation value.

Single Convoluted Rubber Bellows Air Springs OEM Numbers

1B12-305	FS 40-6 CI	SP2906
1B14-350	FS 50-5 CI	SP2334
1B14-352	FS 70-7 CI	SP2913
1B14-364	FS 100-10 CI	SP1536
1B15-376	FS 120-10 CI	SP1537
1B15-378	FS 120-12 CI	SP2523
1B12-313	FS 200-10 CI	SP1540
1B14-351	FS 310-12 CI	SP1543
1B14-362	FS 330-11 CI
1B15-377	FS 330-14 CI
1B15-375	FS 530-11 CI
	FS 530-14 CI
	FS 960-12 CI
	FS 1330-11 CI

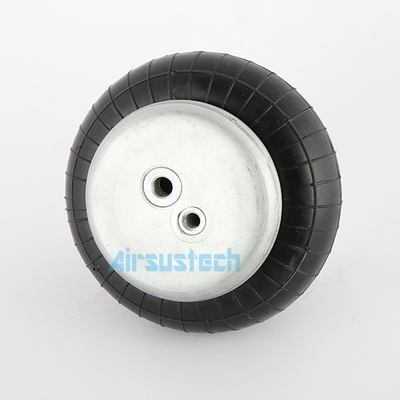

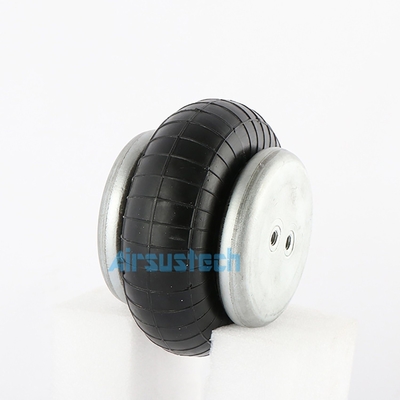

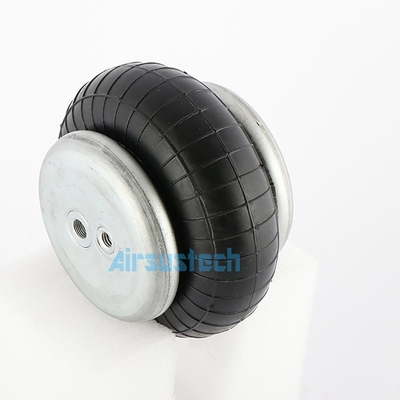

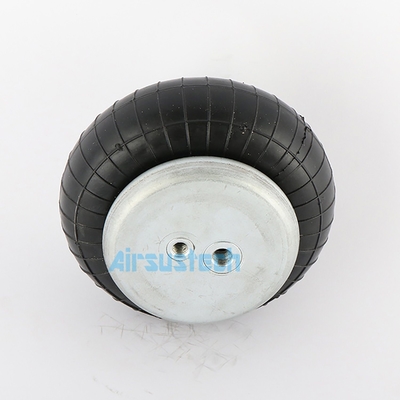

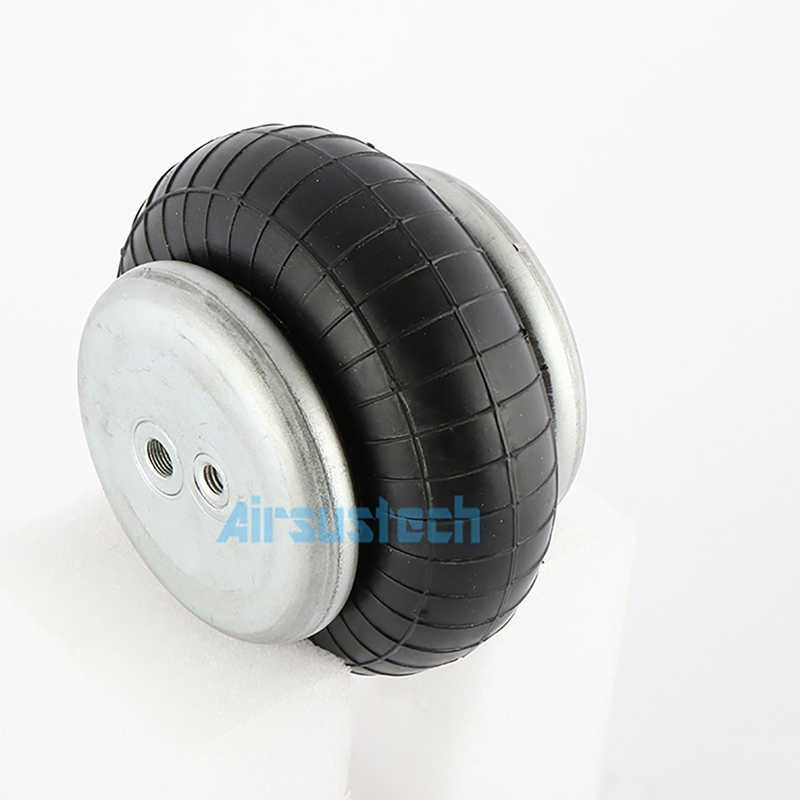

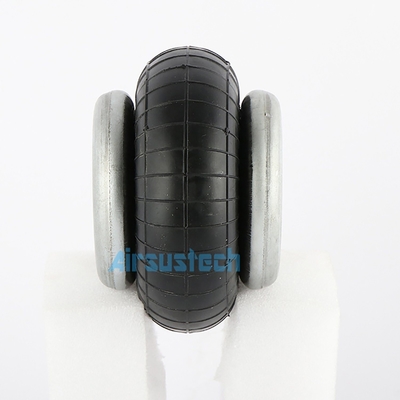

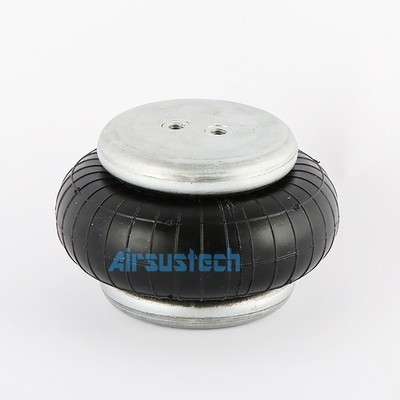

The Reated Pictures

Industrial Air Rubber Bellow Phoenix SP1B04 Pneumatic Air Spring G1/8 Port Size 0

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
