FD 120-17 Contitech Pneumatic Actuator 2B-181 Airkraft Double Convoluted Air Spring

FD 120-17 Contitech Pneumatic Actuator 2B-181 Airkraft Double Convoluted Air Spring


Refer No.

Contitech FD120-17
Contitech FD12017
Contitech FD120 17
Contitech FD 120-17
Contitech FD 120 17
Contitech FD 12017
Firestone: W01-M58-6353
Firestone: W01 M58 6353
Firestone: W01M586353
Firestone: WO1-M58-6353

• Nut/blind nut

• Air hole/air inlet/air fittings

• Cover plate

• Bell rubber bellows

• Bumper block/bumper block

• Belt loop/Belt loop/Girdle hoop

With one piece of  belt loop/girdle hoop

W01-M58-6353 Firestone Information
Style: 26
Max stroke: 183 mm
Max load at 7 bar: 15.94 kN
Max diameter at 7 bar: 218 mm
Max height: 270 mm
Min height: 71 mm
Recommended max working height: 220 mm
Plate diameter: 135 mm
Mounting thread: M8 x 1.25
Plate material: galvanized steel
Air connection: BSP 1/4"
Temperature range: -40 to + 70°C

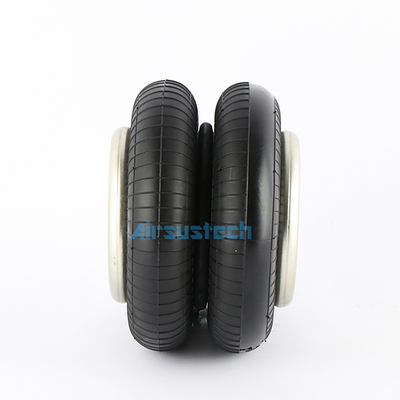

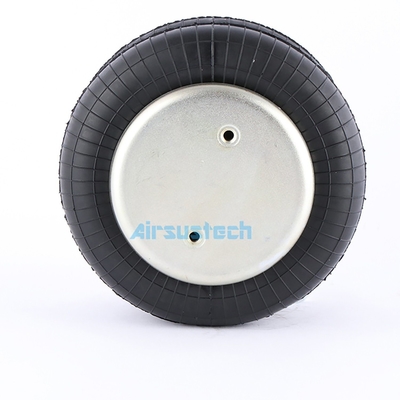

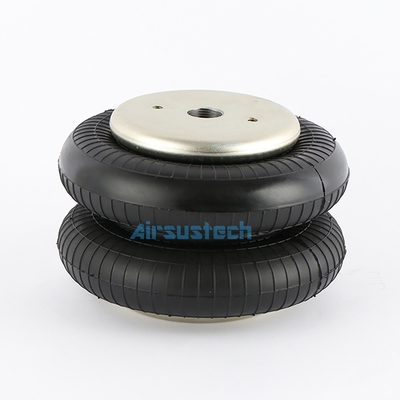

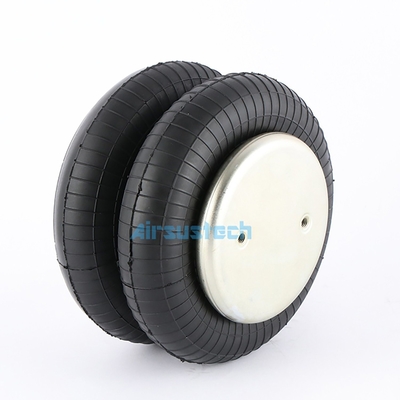

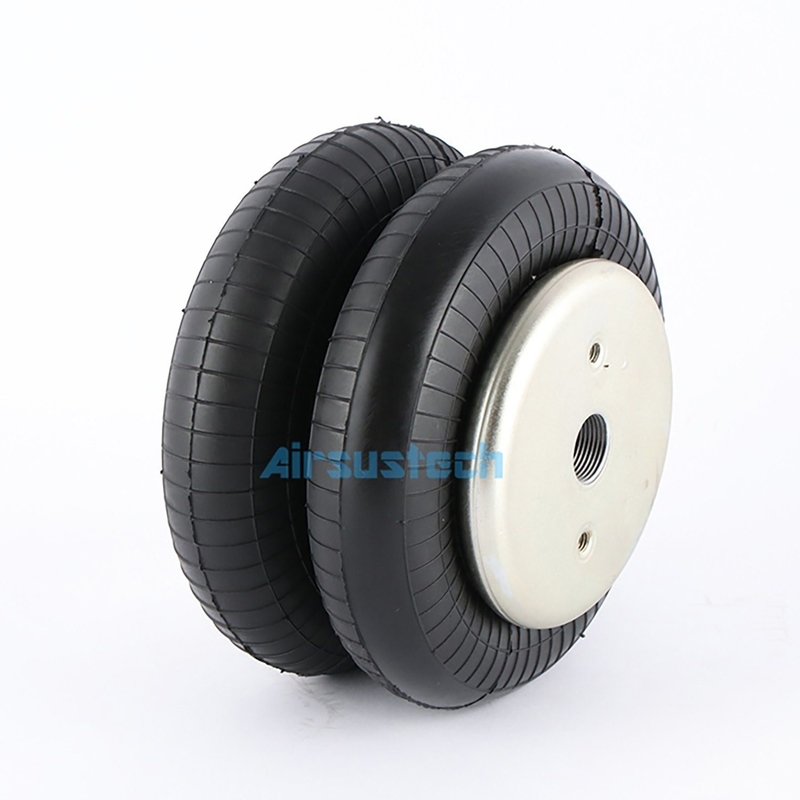

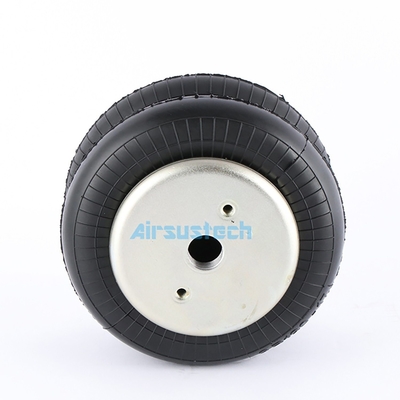

The related picture of 2B12017

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.


Factory workshop


FAQ
Q1:Can you produce the product according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q2: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q3: What certification does your product pass?
A: Our products are certified to ISO/TS16949:2009 international quality standards. Please rest assure that we have very strict Quality Control Systems.

Q4 : Can I use my own logo?
A:Sure. We can do as per the customer's requirements.
