Contitech FD 40-10 CI G1/8 Triple Convoluted Air Spring Bellows Type for Heavy Truck Part

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B4010

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2B4010	Warranty:	12 Months
Brand:	GUOMAT	Total Stroke:	100 MM
Type:	Double Convoluted	Sample:	Available
Space Required:	160 MM	Contitech:	FD 40-10
Highlight:	Triple Convoluted Air Spring Bellows Type , Truck Triple Convoluted Air Spring

Contitech FD 40-10 CI G1/8 Triple Convoluted Bellows Type for Heavy Truck Part

2B4010 Air Spring Introduction

GUOMAT has specialized in air spring more than 10 years. The brand named AIRSUSTECH air bags offer superior quality and performance.The AIRSUSTECH 2B 40-10 can replace the Contitech FD 40-10/Contitech FD 40 10/Contitech FD 4010/Contitech FD4010/Contitech FD40-10/ Contitech FD40 10. They have the same fuctions.

2B4010 Air Spring Details

Cover Plate
Top Cover Plate Diameter	90 mm
Screw Center Distance of Top Cover Plate	20 mm
Bottom Cover Plate Diameter	90 mm
Screw Center Distance of Bottom Cover Plate	20 mm
Nut/Blind Nuts
Top Cover Plate Screw(Nut) Tooth	2×M8×15 mm
Bottom Cover Plate Screw(Nut) Tooth	2×M8×15 mm
Gas Hole/Air Inlet/Air Fitting
Air Hole	G1/8
Rubber Bellow
Rubber Bellow Max. Diameter	145 mm
Minimum Height	70 mm
Maximum Height	170 mm

Vibration isolation - dynamic characteristic values

Design Height H: recommended 160mm, minimum 150mm

Pressure p[bar]	3	4	5	6	7	8	Vol. V[l]
Force(Load) [KN]	1.1	1.5	2.0	2.4	2.8	3.2	1.2
Spring rate [N/cm]	340	450	580	700	825	950
Natural frequency [Hz]	2.8	2.8	2.7	2.7	2.7	2.7

Pneumatic application-static characteristic values

Force F[KN]

Pressure p [bar]		3	4	5	6	7	8	Vol. V [l]
Height H[mm]	160	1.1	1.6	2.0	2.4	2.8	3.2	1.2
	140	1.6	2.2	2.8	3.3	3.9	4.5	1.1
	120	2.0	2.7	3.4	4.1	4.8	5.5	0.9
	100	2.3	3.1	4.0	4.8	5.6	6.4	0.7
	80	2.6	3.5	4.5	5.4	6.3	7.1	0.6

Product Advantages

Frictionless operation
No maintenance or lubrication
Ideal for short stroke, high-force applications
High vibration isolation level
Simple to install

2B Style Industrial Air Springs

GUOMAT Number	Part Number
2B6330	Firestone W01-358-7180/22 Contitech FD 330-22 363 Goodyear 2B12-425/311 Triangle 6316/4363 Airkraft 115061/3B-356 Vibracoustic VSP2B22R7180 EI Ride 8030190 Leland Sc2075 Navistar 1685179C1 Hendrickson 1VA1816 Ridewell 1003587180C SAF Holland 57007180 Watson & Chalinl AS0154 1G/01881F Peerless 0550 00001
2B6910	Firestone W01-358-6910 Contitech FD 200-19 320 Goodyear 2B9-200/202/216 578423202 Triangle 6325/4320 Taurus KF218-6910 Brake & Wheel M3501 Dina A812719/AZ812719 Dayton 3546910 Leland Sc2011 Navistar 554783C1 Hendrickson S8768/458433 Ridewell 1003586910C SAF Holland 57006910 Trailers De 133128 Tuthill 1371 Watson&Chalin AS-0001/AS-0156G
2B7070	Festo 36 491/ 36494 Festo EB-165-125
2B4.5×2P	Contitech FD 44-10 DI CR Firestone W01-R58-4051 Dunlop SP2441 Dunlop 4 1/2''×2 DUNLOP UK (PNEURIDE) PNP 305590107 YS-AIR YS-115-2V Norgren PM/31042

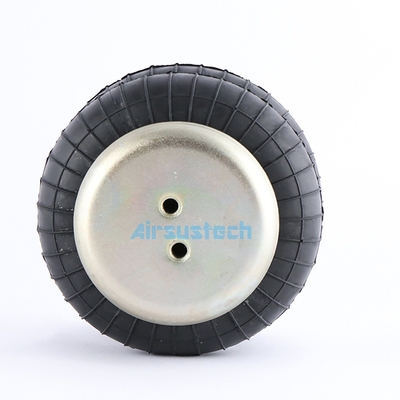

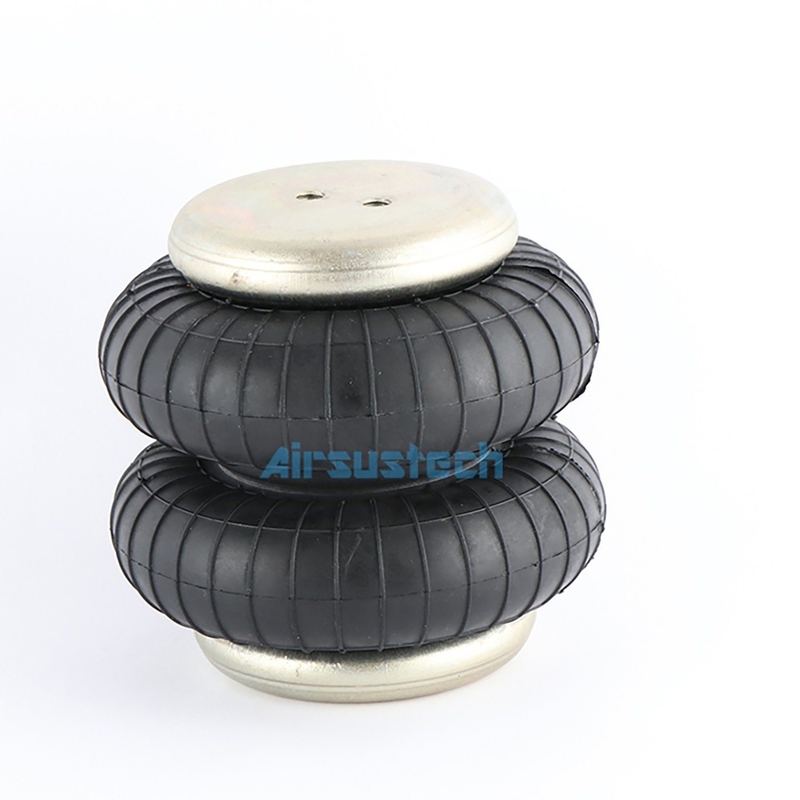

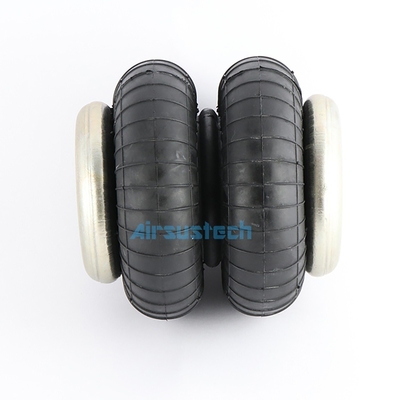

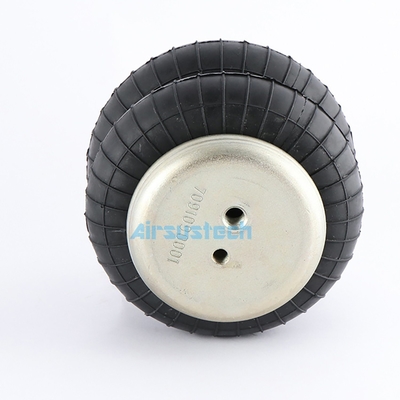

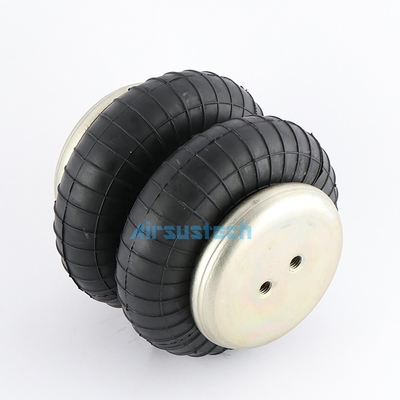

2B4010 Related Photos

Contitech FD 40-10 CI G1/8 Triple Convoluted Air Spring Bellows Type for Heavy Truck Part 0
