Natural Rubber Goodyear 1B5-500 Single Convoluted Air Spring G1/4 Air Connection

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1K130070

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	1K130070	Structure:	Single Cylinder
Quality:	100 % Tested	Fuction:	Reduce Shock
Goodyear:	1B5-500	Trademark:	GUOMAT
Design Height:	70 MM	Port Size:	G 1/4
Highlight:	Goodyear 1B5-500 Single Convoluted Air Spring , Natural Rubber Single Convoluted Air Spring

Natural Rubber Goodyear 1B5-500 Single Convoluted Air Spring G1/4 Air Connection

1K130070 Specifications

Top plate screw (nut) teeth: 2 pcs×M8

The Distance of Nut: 44.5 mm

Screw (nut) teeth of the bottom cover plate: 2 pcs×M8

Air hole/air inlet: G1/4

Top plate diameter (width): 85 mm

Diameter of bottom cover (width): 85 mm

Natural diameter of rubber bellows: 130 mm

Maximum diameter of rubber bellows: 150 mm

Design height: 70mm

OEM Manufacturer

GUOMAT	1K130070	Goodyear Flexmember	1B5 579-913-500
Goodyear Part Numbe	N1B5-500	Goodyear Flexmember	1B5 579 913 500
Goodyear Part Number	1B5 500	Goodyear Flexmember	1B5 579913500
Goodyear Part Number	1B5500	Goodyear Flexmember	579-913-500
Goodyear Bellows Number	1B5 579-913-500	Goodyear Flexmember	579 913 500
Goodyear Bellows Number	1B5 579 913 500	Goodyear Flexmember	579913500
Goodyear Bellows Number	1B5 579913500
Goodyear Bellows Number	579-913-500
Goodyear Bellows Number	579 913 500
Goodyear Bellows Number	579913500

Product Applications

Scissor lift
Hopper vibration and damping
Mechanical handling stop
Quick lock device
Reel tensioning
Machine isolation
Direct force
Impact absorbtion
Roller tensioning
Platform lift
Short stroke mechanical linkage
Hot foll stamping press

Supports And Services

From Original Equipment Manufacturers (OEM) to aftermarket applications, Enidine offers a unique combination of product selection, engineering excellence and technical support to meet even the toughest application needs.

Global Manufacturing and Sales Facilities offer our customers:
Highly Trained Distribution Network
State-of-the Art Engineering Capabilities
Custom Solution Development
Customer Service Specialists
Multiple Open Communication Channels

Through constant evaluation and testing, we bring our customers the most cost effective products with more features, greater performance and improved ease of use for every application requirement.

The Related Pictures

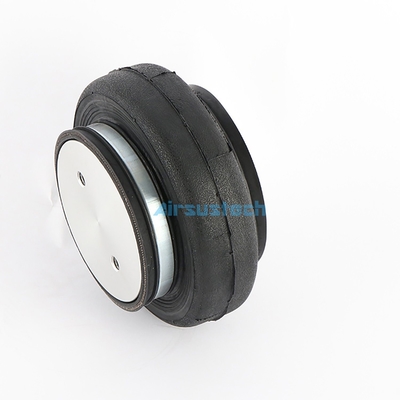

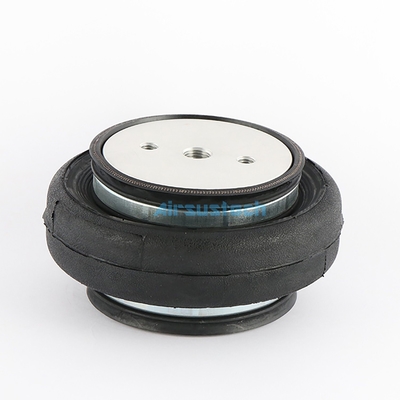

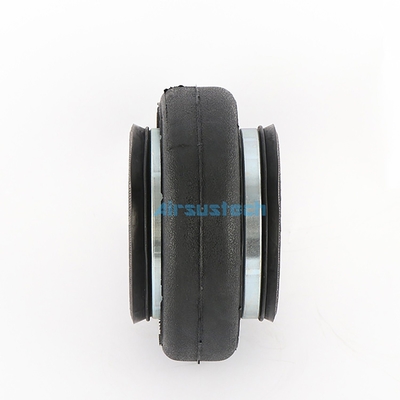

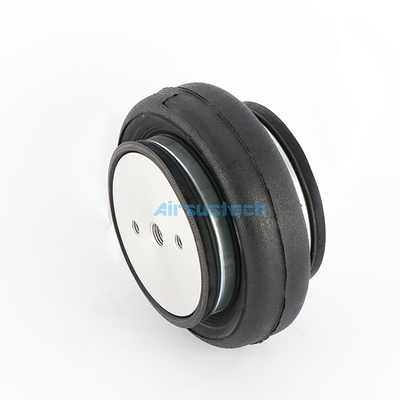

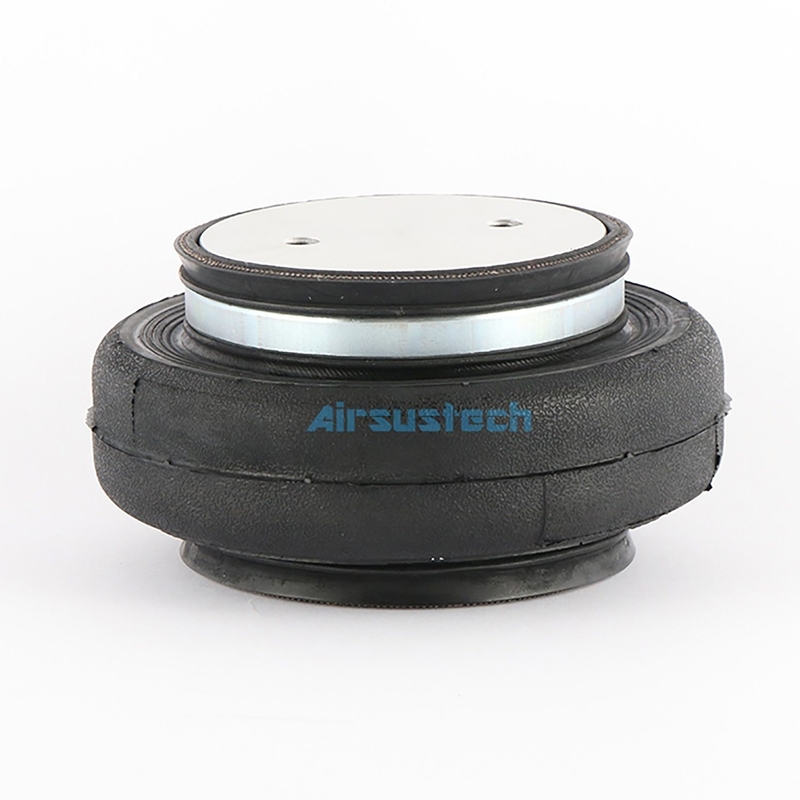

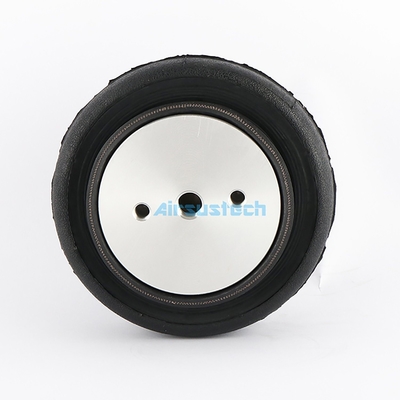

Natural Rubber Goodyear 1B5-500 Single Convoluted Air Spring G1/4 Air Connection 0
