Firestone Industrial Air Spring W01-358-7731 Single Convoluted Rubber Bellow
GUOMAT Air Spring Introduction
GUOMAT air springs are engineered elastic bellows with specially designed metal end caps. Our standard two-layer air spring bellows actually consist of four layers. Many of our air springs are also available in high-strength construction to accommodate higher pressures. In this case, there are either four layers of fabric-reinforced rubber or two layers of special high-strength cord with an inner liner and outer cover.
1B7731 Air Suspension Specifications and Technical Parameters
Bottom Plate Alignment: Parallel
Bottom Plate Center To Center Diameter: 1.75 inches
Bottom Plate Diameter: 4.50 inches
Bottom Plate Hole Quantity: 3/8-16 blind nuts
Bottom Plate Type: Steel
Top Plate Alignment: Parallel
Top Plate Center To Center Diameter: 1.75 inches
Top Plate Diameter: 4.50 inches
Top Plate Hole Quantity: 3/8-16 blind nuts
Top Plate Type: Steel
Expanded Height: 4.5 inches
Compressed Height: 2.0 inches
Spring Type: Single Convoluted
Nut/Blind Nuts Type: 3/8-16 blind nuts
Max Rubber Bellow Diameter: 6.5 inches
Air Connection: 1/4 NPT
Operation: Gas-filled
Vibration isolation - dynamic characteristic values
Design Height H: recommended 115mm, minimum 100mm
| Pressure p[bar] |
3 |
4 |
5 |
6 |
7 |
8 |
Vol. V[l] |
| Force(Load) [KN] |
2.9 |
3.8 |
4.8 |
5.8 |
6.8 |
7.7 |
1.5 |
| Spring rate [N/cm] |
855 |
1110 |
1340 |
1590 |
1840 |
2050 |
| Natural frequency [Hz] |
2.8 |
2.7 |
2.7 |
2.6 |
2.6 |
2.6 |
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] |
3 |
4 |
5 |
6 |
7 |
8 |
Vol. V [l] |
| Height H[mm] |
120 |
2.6 |
3.5 |
4.4 |
5.3 |
6.2 |
7.2 |
1.54 |
| 110 |
3.1 |
4.2 |
5.2 |
6.3 |
7.4 |
8.5 |
1.46 |
| 100 |
3.5 |
4.7 |
5.9 |
7.2 |
8.3 |
9.6 |
1.38 |
| 90 |
3.9 |
5.2 |
6.5 |
7.9 |
9.2 |
10.5 |
1.27 |
| 80 |
4.2 |
5.6 |
7.0 |
8.5 |
9.8 |
11.3 |
1.18 |
| 70 |
4.5 |
5.8 |
7.4 |
9.0 |
10.4 |
12.0 |
1.07 |
Firestone Style 131 Two Ply Bellows
W01-358-7731, W01 358 7731, W013587731
WO1-358-7731, WO1 358 7731, WO13587731
W01-358-7742, W01 358 7742, W013587742
WO1-358-7742, WO1 358 7742, WO13587742
- Socket head aluminum bead rings (bolts, nuts, wahsers not included-use 1/4 cap screws)
W01-358-0127, W01 358 0127, W013580127
WO1-358-0127, WO1 358 0127, WO13580127
- 3/4NPT (only) upper plate, blind nuts lower plate
W01-358-7729, W01 358 7729, W013587729
WO1-358-7729, WO1 358 7729, WO13587729
W01-358-0131, W01 358 0131, W013580131
WO1-358-0131, WO1 358 0131, WO13580131

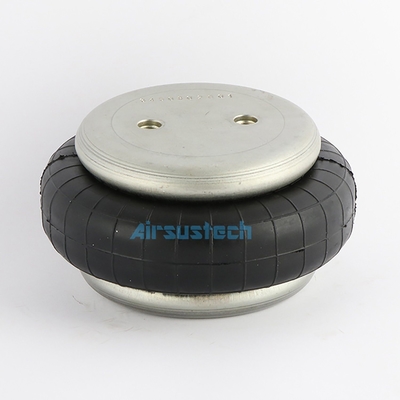

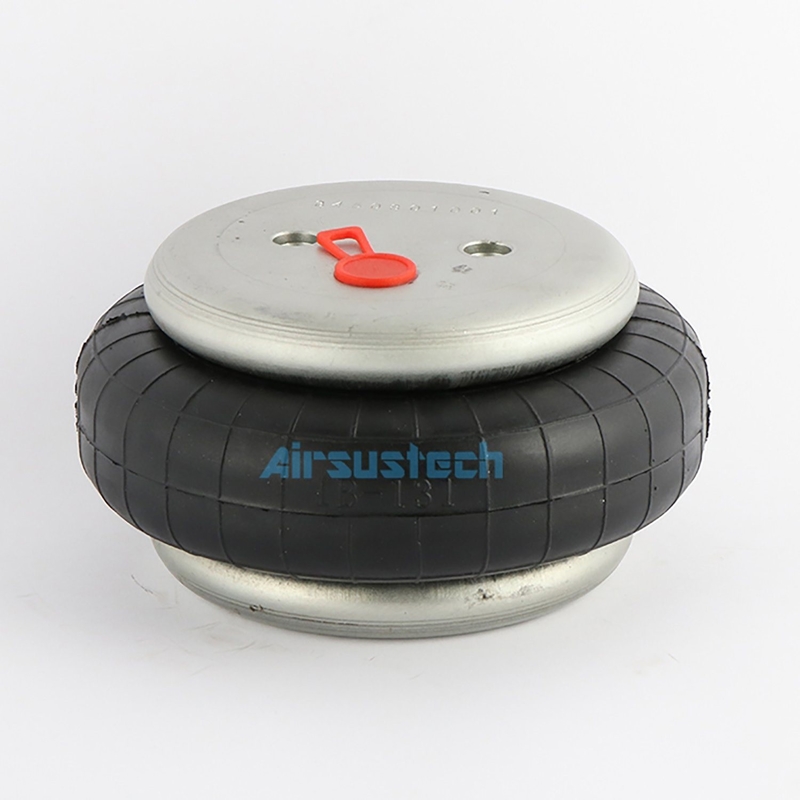

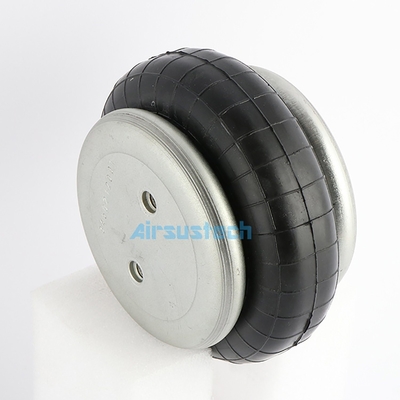

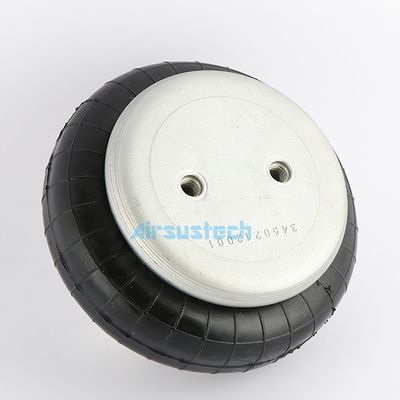

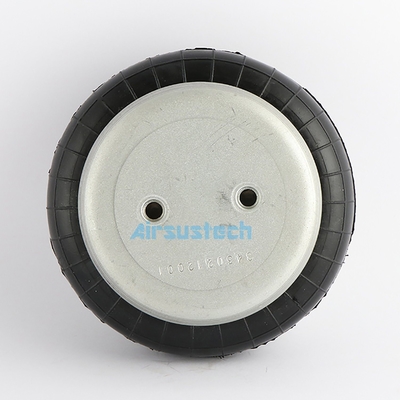

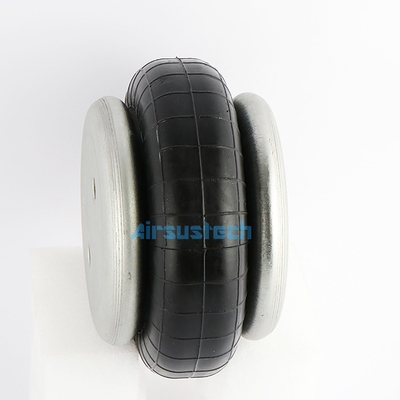

The Real Pictures
Company Profile
Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
