Single Natural Rubber Bellow W01R584050 Firestone Air Spring with Flange Ring
The Introduction of GUOMAT Air Springs
Air springs are extremely durable, precisely engineered, and cost-effective for a variety of actuation and vibration isolation applications. AIRSUSTECH air springs feature a proven design, natural rubber flex member construction, and corrosion-resistant end retainers to deliver superior quality and performance.
1B4.5×1P Air Bag Detailed Datas
Cover Plate Diameter: 110 mm
Center to Center Distance: 93 mm
Air Hole: G3/8
Natural Height: 78 mm
Max Rubber Bellows Width: 120 mm
Bellows Type: Single Convoluted
OEM Cross References
|
Firestone Part Number
W01-R58-4050, W01 R58 4050, W01R584050
WO1-R58-4050, WO1 R58 4050, WO1R584050
|
|
Dunlop Pneuride Part Number
4 1/2" x 1, 4 1/2' x 1, 4 1/2 x 1
|
|
Dunlop Springride Part Number
SP2334, SP 2334, SP 23 34
|
|
Contitech Part Number
FS 44-5 DI, FS44-5 DI, FS445 DI
|
|
Norgren Part Number
PM/31041, PM31041, PM 31041
|
|
Parker Part Number
9109400
|
Guide to Temperature Ranges for Air Spring Applications
1. Continuous service
The maximum operating temperature for all GUOAMT air springs must not exceed +70ºC. Continuous service is defined as 40 hours or more per week of operation at this temperature.
2. Intermittent service
The maximum permissible temperature should not exceed 70°C. Intermittent service is defined as less than 40 hours per week of operation at this temperature. For products made with natural rubber, the minimum permissible operating temperature is +70ºC. Please note that minor cracking may occur during prolonged operation at these minimum temperatures.
We Have Other Single Convoluted Air Suspensions
| GUOMAT NO. |
Firestone |
Dunlop Pneuride |
Dunlop Springride |
Contitech |
Norgren |
Parker |
| 2 3/4''×1 |
|
2 3/4''×1 |
SP2906 |
FS 22-3 DI |
|
9109025 |
| 4 1/2''×1 |
W01R584050 |
4 1/2''×1 |
SP2334 |
FS 44-5 DI |
PM/31041 |
9109400 |
| 1B6×1T(AI) |
W01R584078 |
6''×1(Al) |
SP2913 |
FS 76-7 DI |
PM/31061 |
9109004A |
| 1B6×1T(Steel) |
W01R584052 |
6''×1(Steel) |
SP1536 |
FS 76-7 DS |
M/31061 |
9109004 |
| 1B8×1T |
W01R584054 |
8''×1 |
SP1537 |
FS 138-8 DS |
M/31081 |
9109014 |
| 1B10×1T |
W01R584057 |
10''×1 |
SP2523 |
FS 210-10 DS |
M/31101 |
9109024 |
| 1B12×1T |
W01R584060 |
12''×1 |
SP1540 |
FS 412-10 DS |
M/31121 |
9109044 |
| 1B14 1/2''×1T |
W01R584063 |
14 1/2''×1 |
SP1543 |
FS 614-13 DS |
M/31141 |
9109064 |
| 1B16×1T |
W01R584066 |
16''×1 |
|
FS 816-15 DS |
M/31161 |
9109126 |

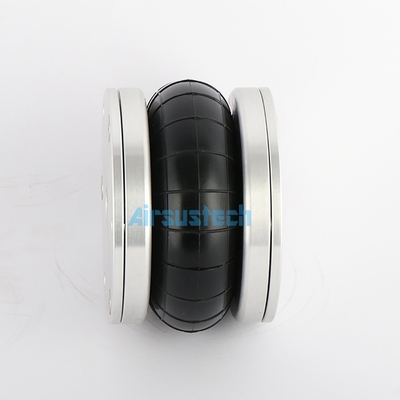

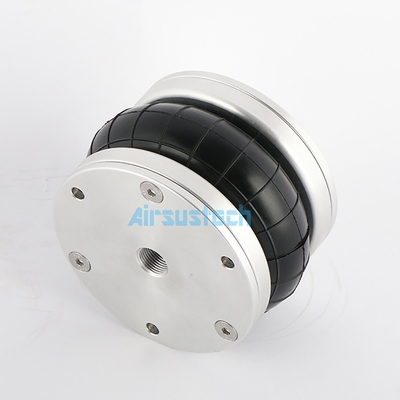

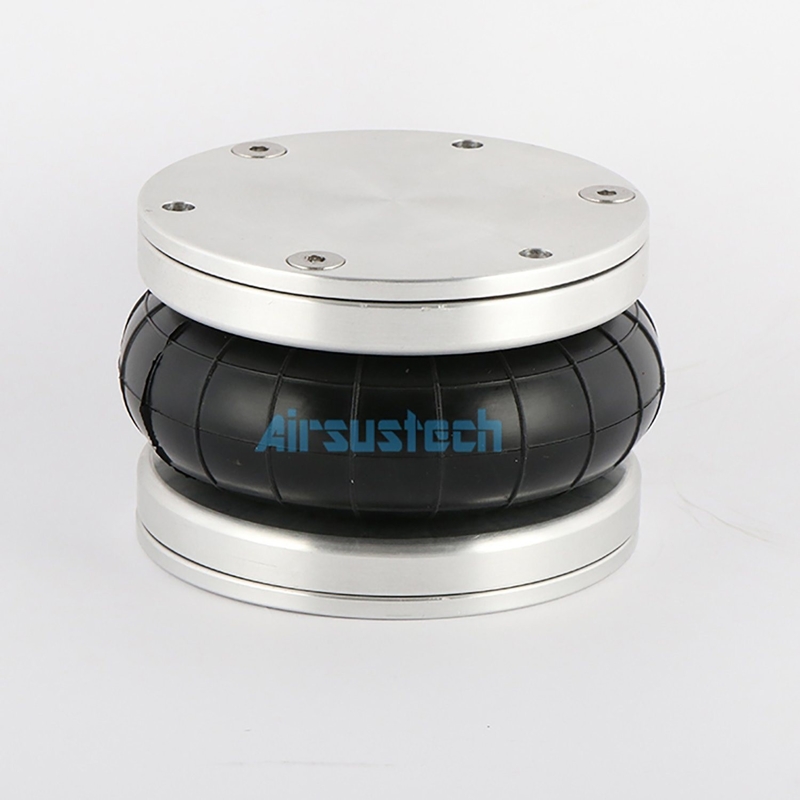

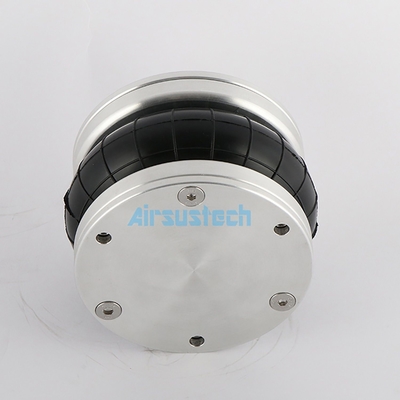

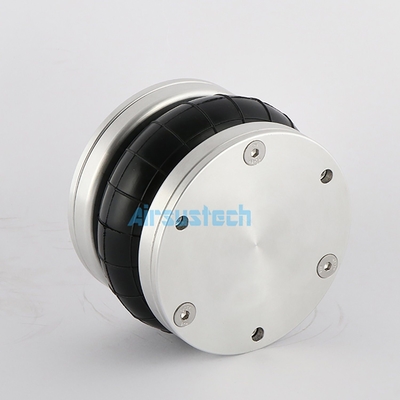

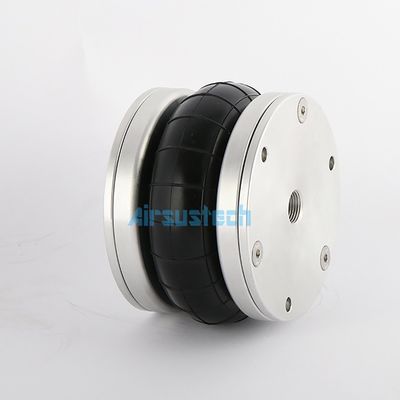

The Detailed Pictures of 1B4.5×1P
Company Profile
Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
