Triple Convoluted Air Spring Actuator 3B2300 Pneumatic Components for Honda Toyota

Air Spring Structure

The structure of the rubber air spring mainly consists of four layers. The first layer is lined with rubber. Because the main material is rubber, the interior is basically rubber; the second and third layers are all cords, which are used to strengthen the skeleton of the equipment, so as to make the equipment work more stably. The layer is a rubber cover.

3B2300 Specifications

Nut/blind nut
Top plate screw (nut) teeth	2 x 3 / 8-16UNC
The screw center distance of the top cover plate	44.5 mm
Screw (nut) teeth of the bottom cover plate	2 x 1 / 2-13UNC
Screw center distance of bottom cover plate	MIDDLE
Air hole/air inlet/air fitting
Air hole/air inlet	1/2-14NPT
Center distance between air inlet and nut	22 mm
Cover Plate
Top plate diameter (width)	113 mm
Diameter of bottom cover (width)	113 mm
Natural diameter of rubber bellows	125 mm
Maximum diameter of rubber bellows	145 mm
Design height	187mm
Bellows Number	2300
Others
Bumper block/bumper block	No bumper
Belt loop/Belt loop/Girdle hoop	two pieces

Air Spring Should Pay Attention To In The Application

1. It is forbidden to use the air spring beyond the recommended safe extension height.
2. In order to prolong the service life of the air spring, do not use the air spring below the minimum compression height.
3. Do not use the air spring under the pressure exceeding 0.7Mpa.
4. Do not use the air spring in a twisted state.

Triple Convoluted Rubber Bellows OEM Number

3B12-304	3B12-305	FT 330-29 CI	SP2910
3B14-351	3B14-353	FT 430-32 CI	SP2895
3B14-354	3B15-375	FT 530-32 CI	SP2923
3B15-376	3B15-377	FT 530-35 CI	SP2861
3B15-378		FT 960-34 CI	SP2863
		FT 1330-35 CI	SP1539
			SP1542
			SP1558
			SP2141

The Detailed Pictures

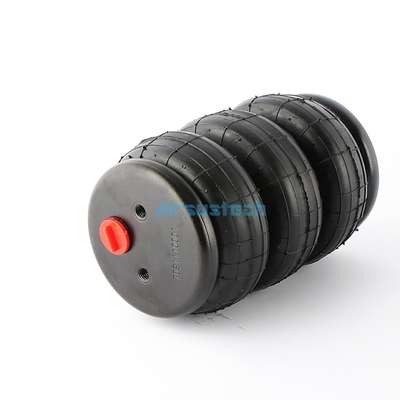

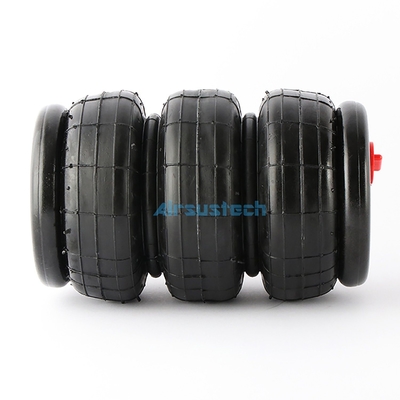

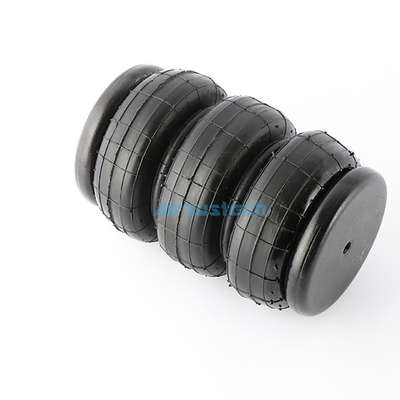

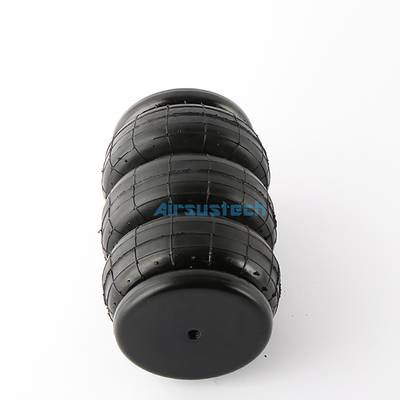

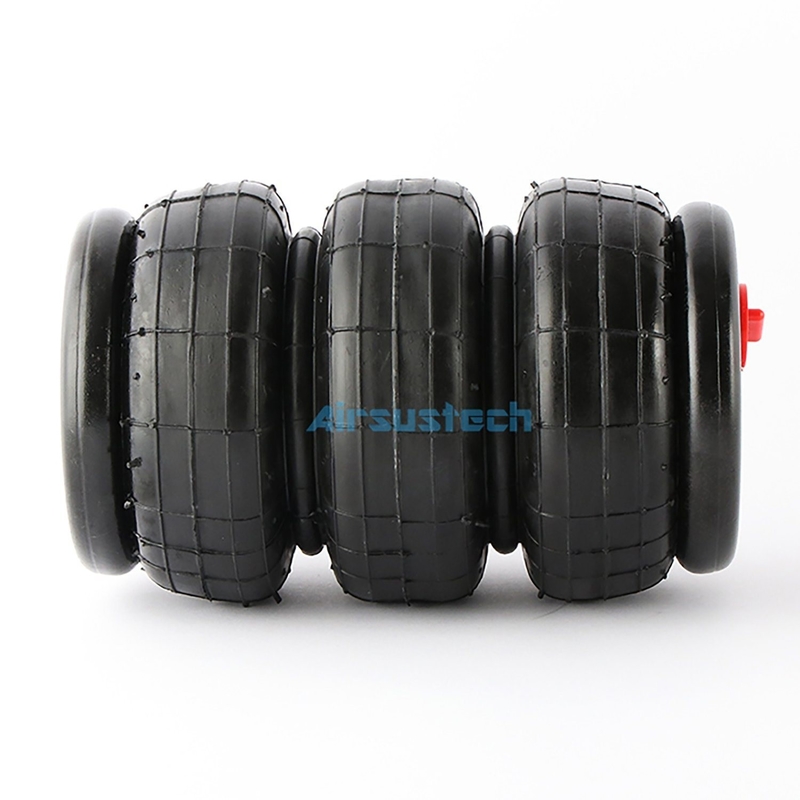

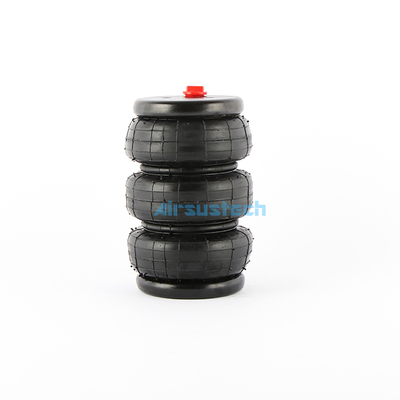

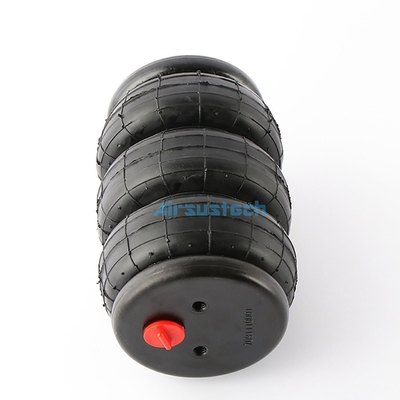

Triple Convoluted Air Spring Actuator 3B2300 Pneumatic Components for Honda Toyota 0
