Brand New Industrial Air Spring Goodyear 1B14-350 Single Convoluted Air Bellows

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B53014

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Number:	1B53014	Brand Name:	GUOMAT
Material:	Natural Rubber	OEM NO.:	Goodyear 578-91-3-351
Minimum Height:	2.3 Inches	Maximum Height:	7.2 Inches
Air Connection:	1/4 NPTF	Working Temperature:	-40℃+70℃
Highlight:	Goodyear Industrial Air Spring , 1B14-350 Industrial Air Spring

Brand New Industrial Air Spring Goodyear 1B14-350 Single Convoluted Air Bellows

Product Specifications

Bottom Plate Alignment: Parallel

Bottom Plate Center To Center Diameter: 6.25 inches

Bottom Plate Diameter: 11.30 inches

Bottom Plate Hole Quantity: 3/8-16 blind nuts

Bottom Plate Type: Steel

Top Plate Alignment: Parallel

Top Plate Center To Center Diameter: 6.25 inches

Top Plate Diameter: 11.30 inches

Top Plate Hole Quantity: 3/8-16 blind nuts

Top Plate Type: Steel

Expanded Height: 7.2 inches

Compressed Height: 2.3 inches

Spring Type: Single Convoluted

Nut/Blind Nuts Type: 2×3/8-16 blind nuts

Air Connection: 1/4NPT

OEM Cross References

Firestone Style 113

Firestone. W01-358-7103

Firestone. W01 358 7103

Firestone. W013587103

Firestone. WO1-358-7103

Firestone. WO1 358 7103

Firestone. WO13587103

FleetPride AS7103

Goodyear 1B14 350

Goodyear 1B14-350

Goodyear 1B14350

Goodyear Flex No. 578913351

Taurus 6326

Triangle AS-4442

Triangle AS 4442

Triangle AS4442

TRP AS71030

Peerless 0550 00015&

Peerless 0550-00015&

Peerless 055000015&

The Must be Enough Clearance Around The Air Bellow

The full surface of the metal parts is to be used to bear the forces.
Air bellows must be equipped with lateral guides.
Deflate the air bellows fully before removing.
Ensure that the bellows is not constantly in contact with hydraulic oil, lubricants, solvents, metal cuttings and weldin sparks.
Should the air bellow be subjected to special media in an application, ask Precision Engineering for further information, specifying the medium, temperature and concentration.

We Have Other Single Convoluted Air Rubber Bellows

Single Convoluted	Double Convoluted		Triple Convoluted
1B12-305	2B6-530	2B6-531	3B12-304
1B14-350	2B6-532	2B6-535	3B14-351
1B14-352	2B6-536	2B7-540	3B14-354
1B14-364	2B7-541	2B7-542	3B15-376
1B15-376	2B7-545	2B7-546	3B15-378
1B15-378	2B8-550	2B8-552	3B12-305
1B12-313	2B8-553	2B8-554	3B14-353
1B14-351	2B9-200	2B9-201	3B15-375
1B14-362	2B9-204	2B9-205	3B15-377
1B15-375	2B9-216	2B9-250
1B15-377	2B9-251	2B9-253
	2B12-309	2B12-218
	2B12-425	2B12-429
	2B12-437	2B12-416
	2B14-352	2B14-353
	2B14-354	2B14-355
	2B14-362	2B14-363
	2B14-452	2B15-375
	2B15-376	2B15-377
	2B15-378	2B19-8433
	2B22-8539

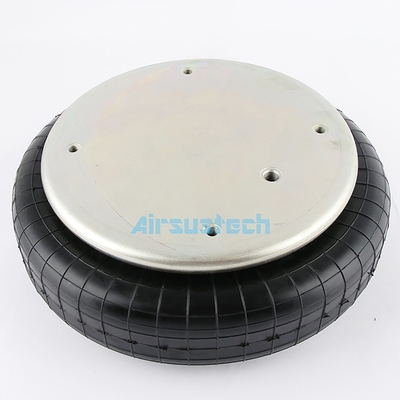

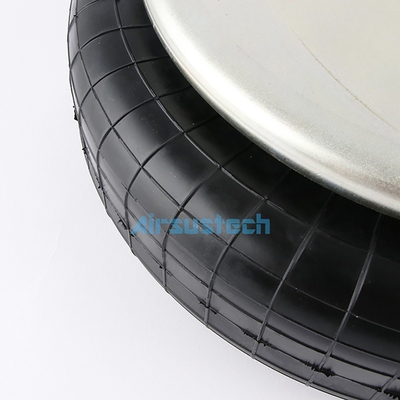

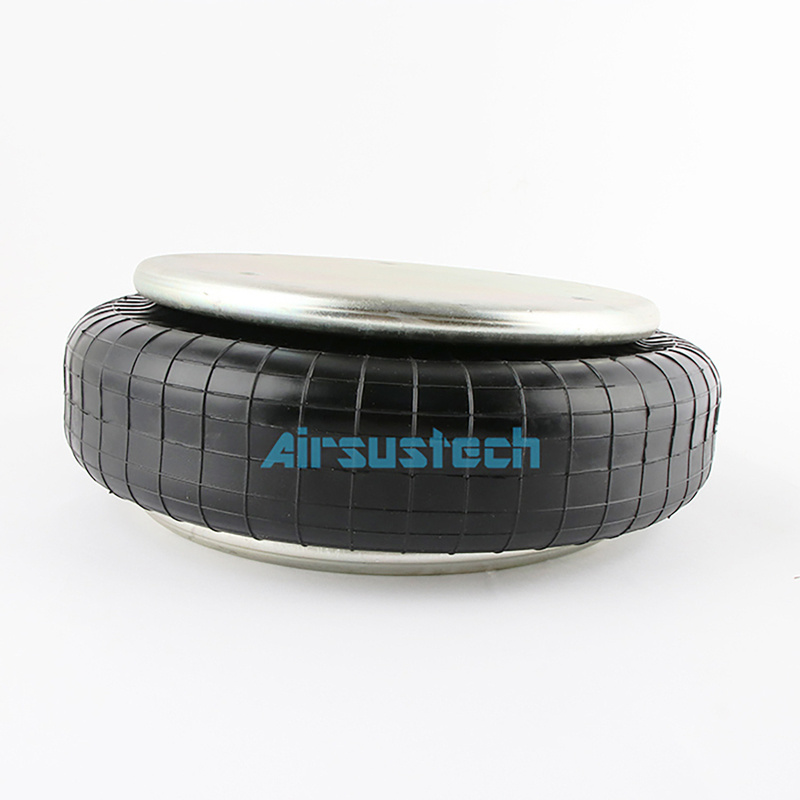

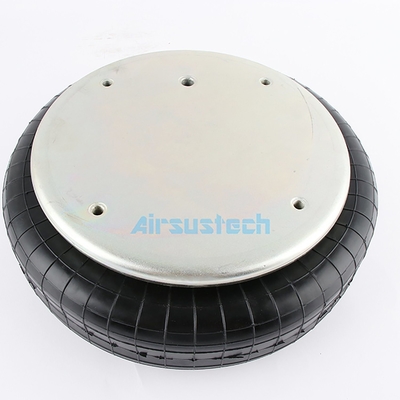

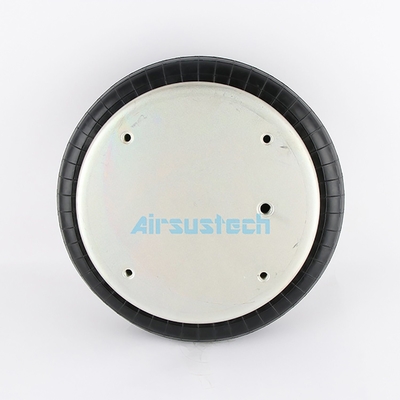

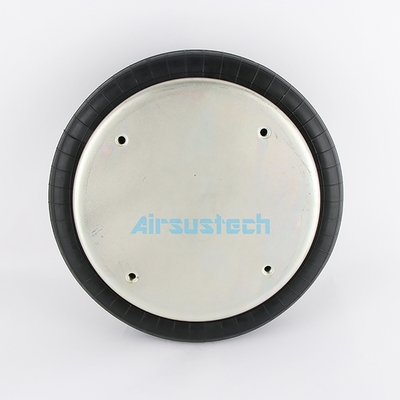

The Related Pictures of 1B53014

Brand New Industrial Air Spring Goodyear 1B14-350 Single Convoluted Air Bellows 0
