12 Months Quality Assurance Goodyear 1B8-580 Air Spring for Bronzing Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B7598

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	1B7598	Fuction:	Reduce Shock
Goodyear:	1B8-580	Trademark:	GUOMAT
Warranty:	12 Months	Firestone:	W01-358-7598
Air Connection:	1/4NPT	Type:	Single Convoluted
Highlight:	12 Months Quality Assurance Air Spring , Goodyear 1B8-580 Air Spring , Bronzing Machine Air Spring

12 Months Quality Assurance Goodyear 1B8-580 Air Spring for Bronzing Machine

OEM Numbers

Goodyear 1B8-580

Goodyear 1B8 580

Goodyear 1B8580

Fire-stone W01-358-7598

Fire-stone W013587598

Fire-stone W01 358 7598

Fire-stone WO13587598

Fire-stone WO1-358-7598

Fire-stone WO13587598

Product Specifications

Bottom Plate Alignment: Parallel
Bottom Plate Center To Center Diameter: 2.75 inches
Bottom Plate Diameter: 5.31 inches
Bottom Plate Hole Quantity: 3/8-16 blind nuts
Bottom Plate Type: Steel

Top Plate Alignment: Parallel
Top Plate Center To Center Diameter: 2.75 inches
Top Plate Diameter: 5.31 inches
Top Plate Hole Quantity: 3/8-16 blind nuts
Top Plate Type: Steel

Expanded Height: 7 inches
Compressed Height: 2 inches
Spring Type: Single Convoluted
Nut/Blind Nuts Type: 2×3/8-16 blind nuts
Max Rubber Bellow Diameter: 9.6 inches

Air Connection: 1/4NPT
Operation: Gas-filled

GUOMAT Air Spring Structure

1. It is a rubber element, a flexible body formed by vulcanizing a cord layer, an inner and outer rubber layer, or a wire ring. It achieves its elastic function through the compressibility of the filled air. Commonly known as air spring, rubber airbag, airbag, etc.
2. The rubber air spring, base, socket (piston), and seal are integrated into the overall shape of the sealed cavity.
3. Depending on the shape, it can be divided into three categories: capsule, film, and shell. There are four types of sealing structures: pressure self-sealing, flange clamping, ring seal, and mixed type.
4. The load of the air spring shock absorber is mainly borne by the cord. The cord layer mainly consists of two layers, while products with special requirements consist of four layers of cord. The inner rubber primarily serves a sealing function and, in addition to the sealing function of the outer rubber, also fulfills a protective function.

We Have Other Type Goodyear Air Suspensions

1B12-305	2B6-530	2B6-531	3B12-304
1B14-350	2B6-532	2B6-535	3B14-351
1B14-352	2B6-536	2B7-540	3B14-354
1B14-364	2B7-541	2B7-542	3B15-376
1B15-376	2B7-545	2B7-546	3B15-378
1B15-378	2B8-550	2B8-552	3B12-305
1B12-313	2B8-553	2B8-554	3B14-353
1B14-351	2B9-200	2B9-201	3B15-375
1B14-362	2B9-204	2B9-205	3B15-377
1B15-375	2B9-216	2B9-250
1B15-377	2B9-251	2B9-253
	2B12-309	2B12-218
	2B12-425	2B12-429
	2B12-437	2B12-416
	2B14-352	2B14-353
	2B14-354	2B14-355
	2B14-362	2B14-363
	2B14-452	2B15-375
	2B15-376	2B15-377
	2B15-378	2B19-8433
	2B22-8539

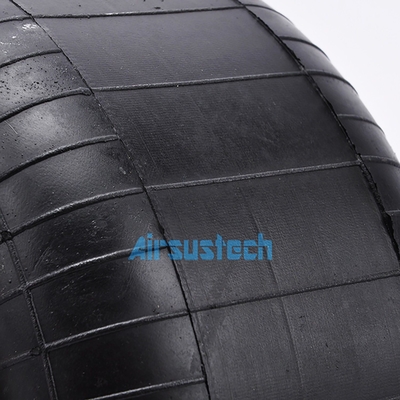

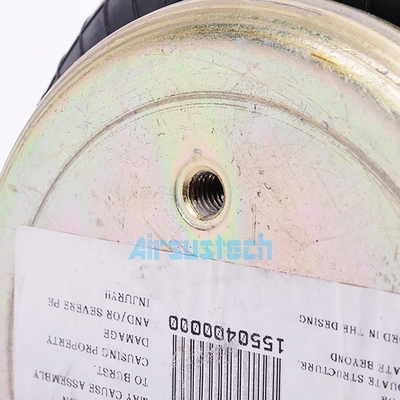

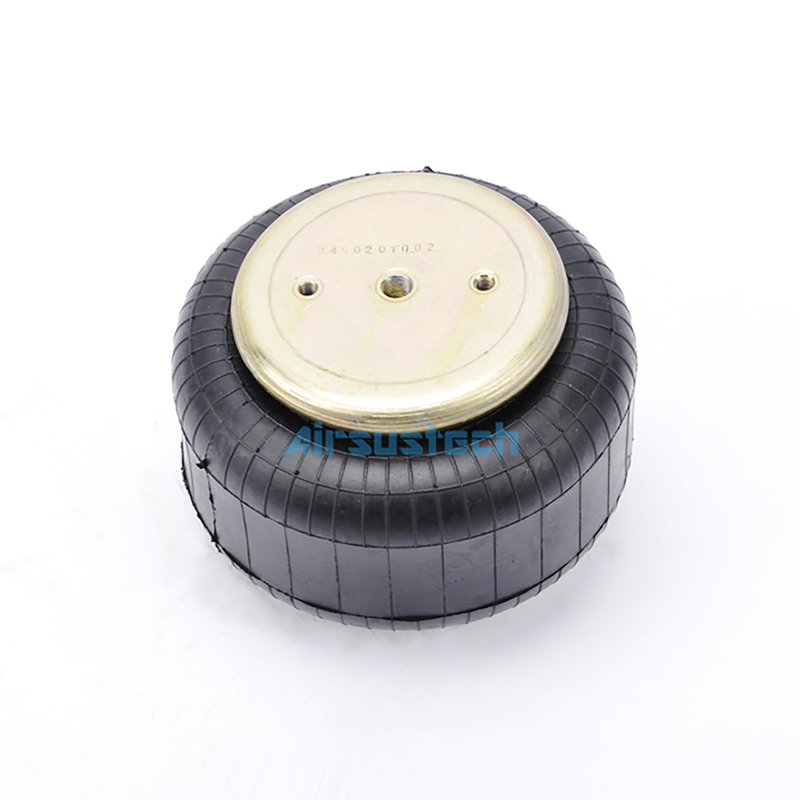

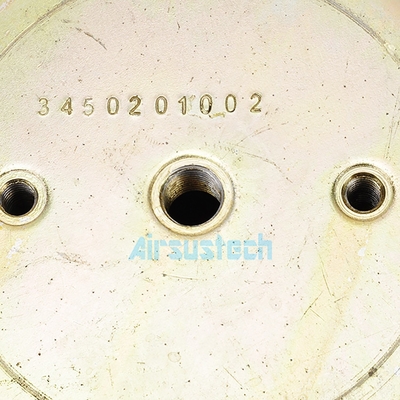

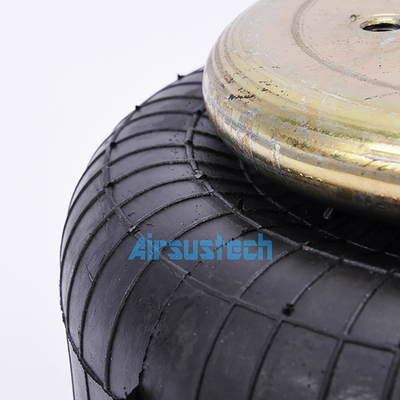

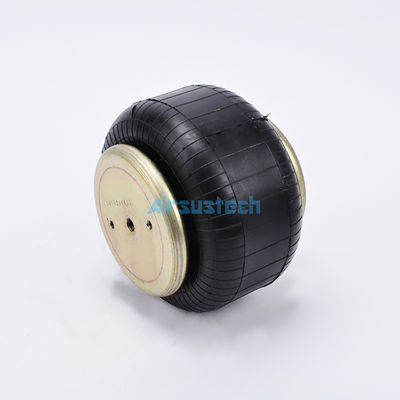

The Detailed Pictures

12 Months Quality Assurance Goodyear 1B8-580 Air Spring for Bronzing Machine 0

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
12 Months Quality Assurance Goodyear 1B8-580 Air Spring for Bronzing Machine 1
