Double Convoluted Air Bellow W01-358-7550 by Firestone Heavy Truck Air Spring

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B7550

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2B7550	Trademark:	GUOMAT
Air Connection:	1/4-18NPT	Material:	Natural Rubber
Contitech:	FD 331-26 541	Goodyear:	2B12-346
Warranty:	12 Months	Full Storke:	259 MM
Highlight:	W01-358-7550 Air Bellow , Heavy Truck Air Bellow , Firestone Heavy Truck Air Bellow

Double Convoluted Air Bellow W01-358-7550 by Firestone Heavy Truck Air Spring

Product Specifications

Bottom Plate Alignment: Parallel
Bottom Plate Center To Center Diameter: 157 mm
Bottom Plate Diameter: 224.5 mm
Bottom Plate Hole Quantity: 1/2-13UNC
Bottom Plate Type: Steel

Top Plate Alignment: Parallel
Top Plate Center To Center Diameter: 157 mm
Top Plate Diameter: 224.5 mm
Top Plate Hole Quantity: 1/2-13UNC
Top Plate Type: Steel

Expanded Height: 104 mm
Compressed Height: 363 mm
Spring Type: Double Convoluted
Nut/Blind Nuts Type: 2×1/2-13UNC
Max Rubber Bellow Diameter: 343 mm

Air Connection: 1/4-18 NPT

Operation: Gas-filled

OEM Cross References

Firestone: W01-358-7550
Firestone: W01 358 7550
Firestone: W013587550
Firestone: WO1-358-7550
Firestone: WO1 358 7550
Firestone: WO13587550
Contitech: FD331-26 541
Contitech: FD331 26 541
Goodyear: 2B12-346
Goodyear: 2B12 346
Goodyear: 2B12-440
Goodyear: 2B12 440
Goodyear: 578923315
Triangle: 6375
Triangle: 4480
Watson&Chalin: AS-0087
Histeer: 10315

What Are The Advantages of Our Shock Absorbers

1. Increase driving comfort

Effectively eliminate abnormal sound,noise in the driving process,jitter,make driving more comfortable

2. Lower fuel consumption and longer life

Reduce fuel consumption,prolong the life of car related chassis parts,reduce the cost of car maintenance

3. High stability

In the sharp turn,winding road,pothole road,automatic adjutment of the body constant height,to ensure comfort,maintain stability

We Have Other Double Convoluted Air Suspensions

2B6-530	2B6-531	FD 40-10 CI	SP2907
2B6-532	2B6-535	FD 70-13 CI	SP2441
2B6-536	2B7-540	FD 110-15 CI	SP2917
2B7-541	2B7-542	FD 120-17 CI	SP1482
2B7-545	2B7-546	FD 120-20 CI	SP1490
2B8-550	2B8-552	FD 200-19 CI	SP1538
2B8-553	2B8-554	FD 200-22 CI	SP1541
2B9-200	2B9-201	FD 200-25 CI	SP2782NB
2B9-204	2B9-205	FD 330-22 CI	SP1556
2B9-216	2B9-250	FD 330-30 CI	SP1557
2B9-251	2B9-253	FD 530-22 CI	SP1408
2B12-309	2B12-218	FD 530-35 CI	SP2342
2B12-425	2B12-429	FD 960-22 CI
2B12-437	2B12-416	FD 1330-25 CI
2B14-352	2B14-353
2B14-354	2B14-355
2B14-362	2B14-363
2B14-452	2B15-375
2B15-376	2B15-377
2B15-378	2B19-8433
2B22-8539

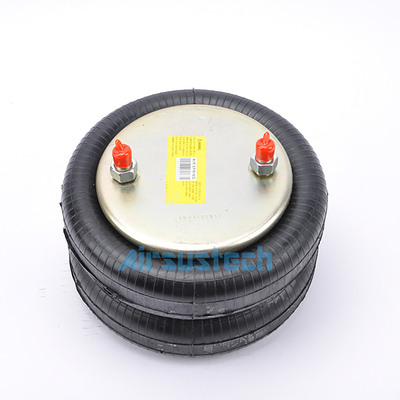

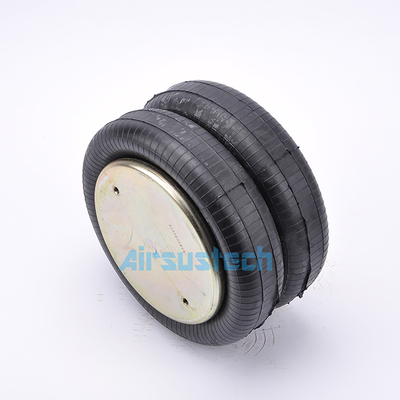

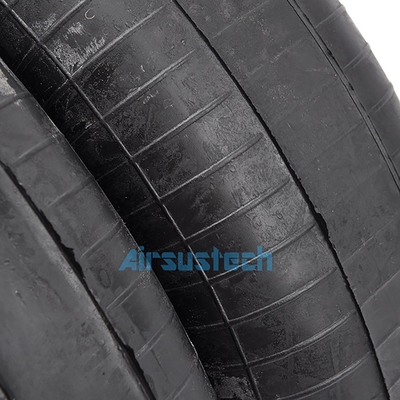

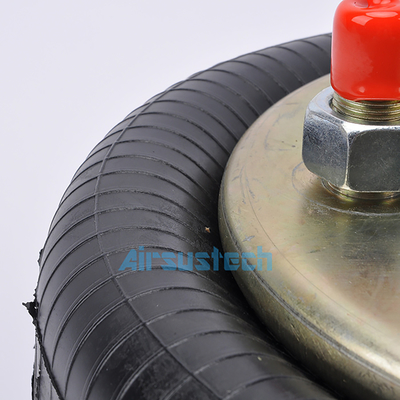

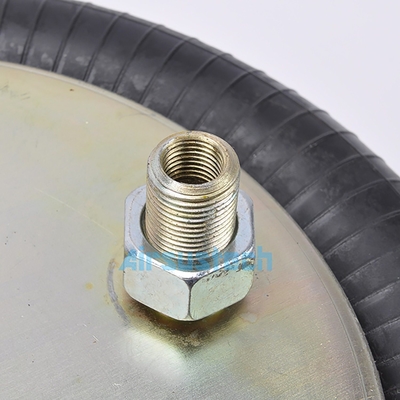

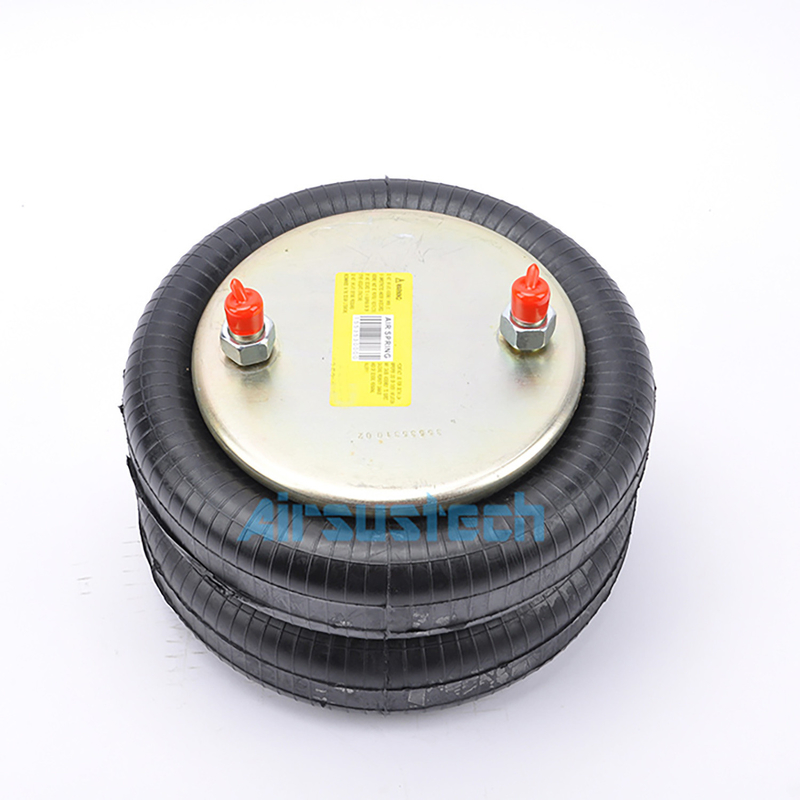

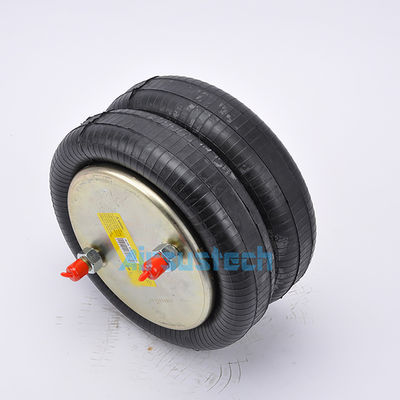

The Related Pictures of 2B7550 Air Springs

Double Convoluted Air Bellow W01-358-7550 by Firestone Heavy Truck Air Spring 0

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
