Firestone W01-358-7545 Double Convoluted Air Suspension Goodyear 2B12-345

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B7545

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2B7545	Fuction:	Reduce Shock
Firestone:	W01-358-7545	Transport Package:	Strong Cartons
Trademark:	GUOMAT	After-sales Service:	12 Months
Air Inlet:	1/4 PTF	Contitech:	FD 331-26 514
Highlight:	Firestone Double Convoluted Air Suspension , Goodyear Double Convoluted Air Suspension

Firestone W01-358-7545 Double Convoluted Air Suspension Goodyear 2B12-345

OEM Cross References

Firestone: W01-358-7545
Firestone: W01 358 7545
Firestone: W013587545
Firestone: WO1-358-7545
Firestone: WO1 358 7545
Firestone: WO13587545
Contitech: FD331-26 514
Contitech: FD331 26 514
Goodyear: 2B12-345
Goodyear: 2B12 345
Goodyear: 578-92-3-315
Goodyear: 578 92 3 315
Goodyear: 578923315
Triangle: 6375
Triangle: 4514
Hendrickson Aux. 001796

(Paralift Ultra/High Lift) - Lift bag

Watson&Chalin: AS-0087-1F
Watson&Chalin: AS-0109

Product Detailed Datas

Bottom Plate Alignment: Parallel
Bottom Plate Center To Center Diameter: 157 mm
Bottom Plate Diameter: 157 mm
Bottom Plate Hole Quantity: 2×3/8-16UNC
Bottom Plate Type: Steel

Top Plate Alignment: Parallel
Top Plate Center To Center Diameter: 157 mm
Top Plate Diameter: 157 mm
Top Plate Hole Quantity: 157 mm
Top Plate Type: Steel

Expanded Height: 104 mm
Compressed Height: 363 mm
Spring Type: Double Convoluted
Nut/Blind Nuts Type: 2×3/8-16UNC
Max Rubber Bellow Diameter: 343 mm

Air Connection: 1/4 NPTF
Operation: Gas-filled

The Must be Enough Clearance Around The Air Bellow

The full surface of the metal parts is to be used to bear the forces.
Air bellows must be equipped with lateral guides.
Deflate the air bellows fully before removing.
Ensure that the bellows is not constantly in contact with hydraulic oil, lubricants, solvents, metal cuttings and weldin sparks.
Should the air bellow be subjected to special media in an application, ask Precision Engineering for further information, specifying the medium, temperature and concentration.

Other Airride Air Springs We Could Provide

Single Convolutions
Fire-stone : W01 358 7731	Fire-stone : W01 M58 6165
Fire-stone : W01 358 7564	Fire-stone : W01 358 7598
Fire-stone : W01 M58 6374	FIRE-STONE FLEX 115
FIRE-STONE W01 358 0118	Fire-stone : W01 358 7008
Fire-stone: W01 358 7009	Fire-stone. W01 358 7103
Fire-stone. W01 358 7112
Double Convolutions
FIRE-STONE W01 095 0111	FIRE-STONE W01 358 7325
FIRE-STONE W01 358 7327	Fire-stone : W01 358 7325
Fire-stone : W01 M58 6353	FIRE-STONE W01 M58 7894
Fire-stone : W01 358 6926	Fire-stone : W01 358 6910
Fire-stone : W01 358 6902	Fire-stone : W01 358 6927
Fire-stone : W01 358 6943	Fire-stone : W01 358 6946
Fire-stone : W01 358 6945	Fire-stone : W01 M58 7679/20C2
Fire-stone:W01 358 6948	FIRE-STONE W01 358 6951
FIRE-STONE W01 358 6952	Fire-stone:W01 M58 6944/20-2
Fire-stone:W01 M58 6891/20-2	Fire-stoneW01 358 7180/22
FIRE-STONE W01 358 0226	FIRE-STONE 22T3 095 .0257
FIRE-STONE fole 210 095.008	Fire-ston:W01 358 7400/22
Fire-stone:W01 358 7405	Fire-stone:W01 358 7406
Fire-stone:W01 358 7424	Fire-stone:W01 358 7545
Fire-stone:W01 358 7550	Fires-tone:W01 358 7555
Fire-stone : W01 358 7136	FIRE-STONE W01 358 7146
FIRE-STONE W01 358 7143	Fire-stone:W01 358 7557
Fire-stone:W01 358 7781	Fire-stone:W01 095 0289
Fire-stone. W01 095 0508	Fire-stone.W01 358 9529
Fire-stone Style 21D-2
Triple Convolutions
Fire-stone:W01 358 8008	Fire-stone:W01 358 8010
Fire-stone:W01 358 8027/38	Fire-stone:W01 358 8029
Fire-stone:W01 358 8030/38	FIRE-STONE W01 358 8006
FIRE-STONE FLEX 38R/38D	FIRE-STONE W01 358 7808
FIRE-STONE W01 358 7798	FIRE-STONE FLEX 313D
FIRE-STONE FLEX 313D	FIRE-STONE W01 358 7800
FIRE-STONE W01 358 7818	FIRE-STONE FLEX 313D

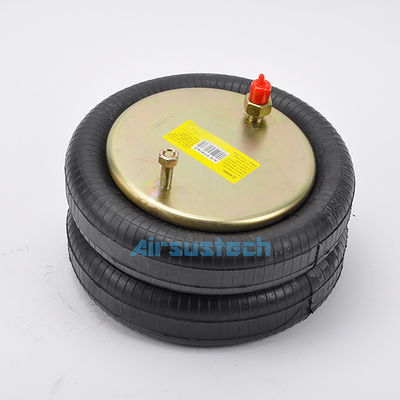

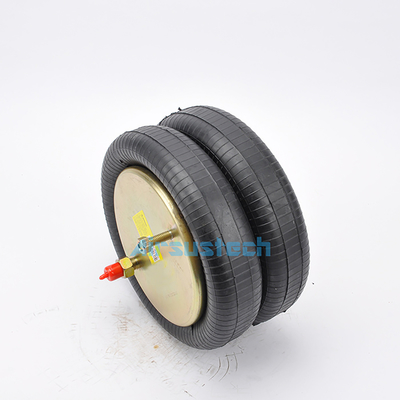

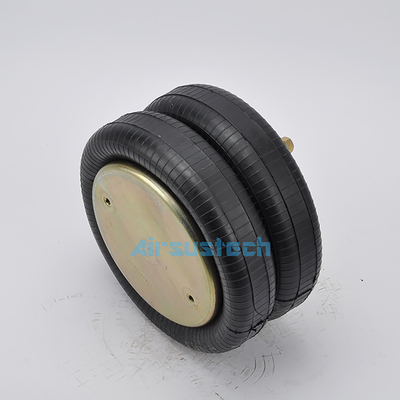

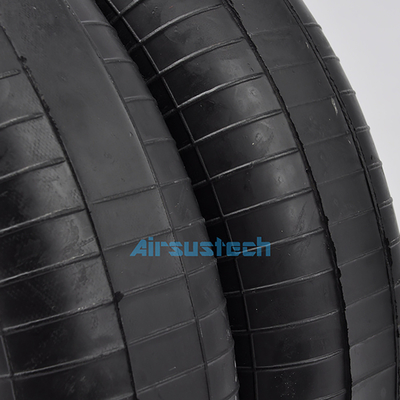

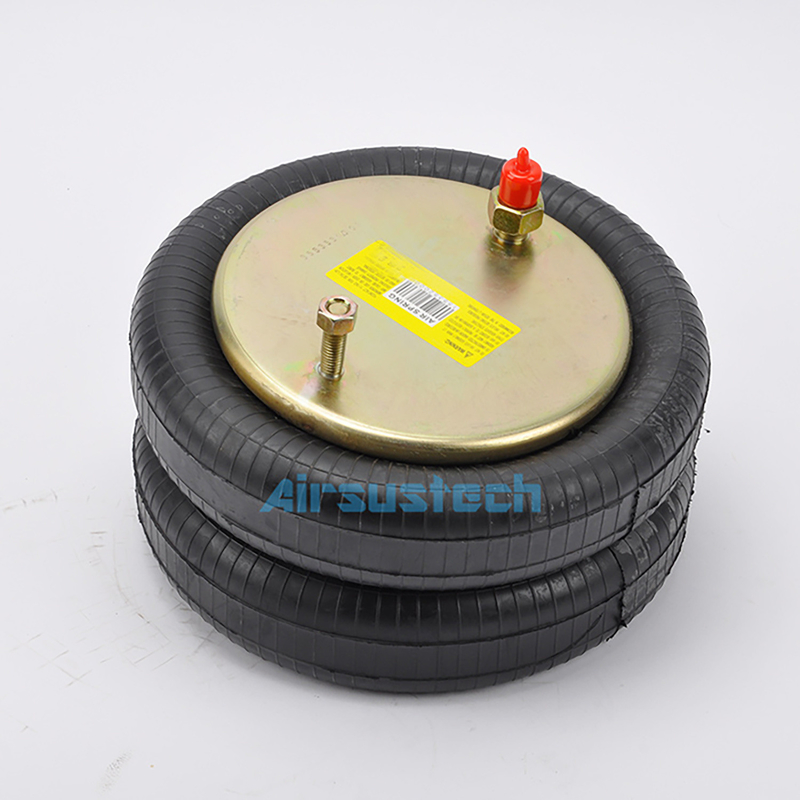

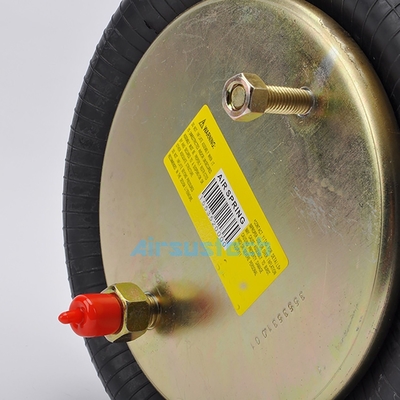

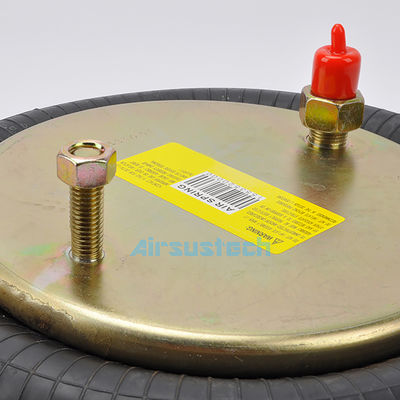

The Dteailed Pictures of Air Springs

Firestone W01-358-7545 Double Convoluted Air Suspension Goodyear 2B12-345 0
