High Performance Ridewell 1003586943c Double Convoluted Air Actuator FD200 25 426

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B6943

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2B6943	Quality:	100 % Tested
Fuction:	Reduce Shock	Trademark:	GUOMAT
Warranty:	12 Months	Total Stroke:	246 MM
Gas Hole:	1/4 NPTF	Goodyear:	2B9-250
Highlight:	FD200 Ridewell Air Actuator , High Performance Ridewell Air Actuator , Double Convoluted Ridewell Air Actuator

High Performance Ridewell 1003586943c Double Convoluted Air Actuator FD200 25 426

Product Details

Top Cover Plate Diameter: 160 mm

Screw Center Distance of Top Cover Plate: 89 mm

Bottom Cover Plate Diameter: 160 mm

Screw Center Distance of Bottom Cover Plate: 89 mm

Top Cover Plate Screw(Nut) Tooth: 2×3/8-16UNC

Bottom Cover Plate Screw(Nut) Tooth: 2×3/8-16UNC

Air Hole: 1/4 NPTF

Rubber Bellow Max. Diameter: 262 mm

Minimum Height: 79 mm

Maximum Height: 325 mm

Cross OEM Numbers

Firestone W01-358-6943

Firestone W01 358 6943

Firestone W013586943

Contitech FD200 25 426

Contitech FD 200-25 426

Contitech FD200 25 426

Contitech 161332

Goodyear 2B9-250

Goodyear 2B9 250

Goodyear 578923206

Triangle 6332

Watson&Chalin AS-0041

Neway/SAF 90557237

Ridewell 1003586943C

Tuthill 6352

V-Steer II (Lift Bag)

Van Raden

GUOMAT Support and Services

Our Industrial Air Springs product comes with comprehensive technical support and services to ensure that your experience with our product is seamless. Our team of experts is always available to assist with any technical issues that you may encounter with your air springs.
We also provide installation services to ensure that your air springs are installed correctly and function optimally. Additionally, we offer maintenance and repair services to keep your air springs in top condition and to extend their lifespan.
Our technical support and services are designed to help you get the most out of our product and to ensure that you have a positive experience with our brand.

Other Types Of Ridewell Air Spring Replacement

1003587009C 1003587400C

1003586897C 1003587403C

1003586900C 1003587404C

1003586902C 1003587406C

1003586905C 1003587410C

1003586908C 1003587180C

1003586910C 1003587424C

1003586932C 1003587429C

1003586905C 1003587437C

1003587893C 1003587781C

1003587325C 1003587325C

1003586945C 1003587437C

1003586946C 1003588008C

1003586948C 1003588010C

1003587136C 1003588016C

1003587180C 1003588030C

1003587181C 1003587808C

1003587183C

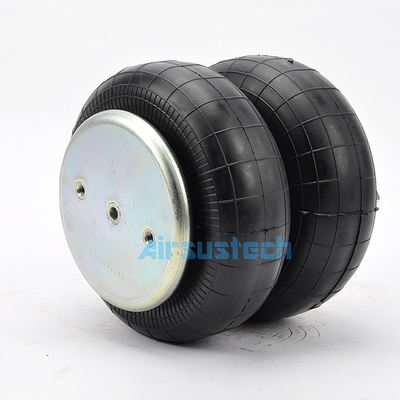

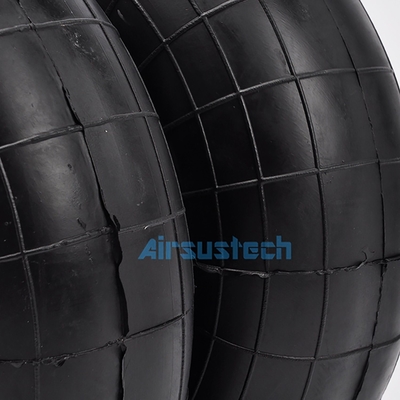

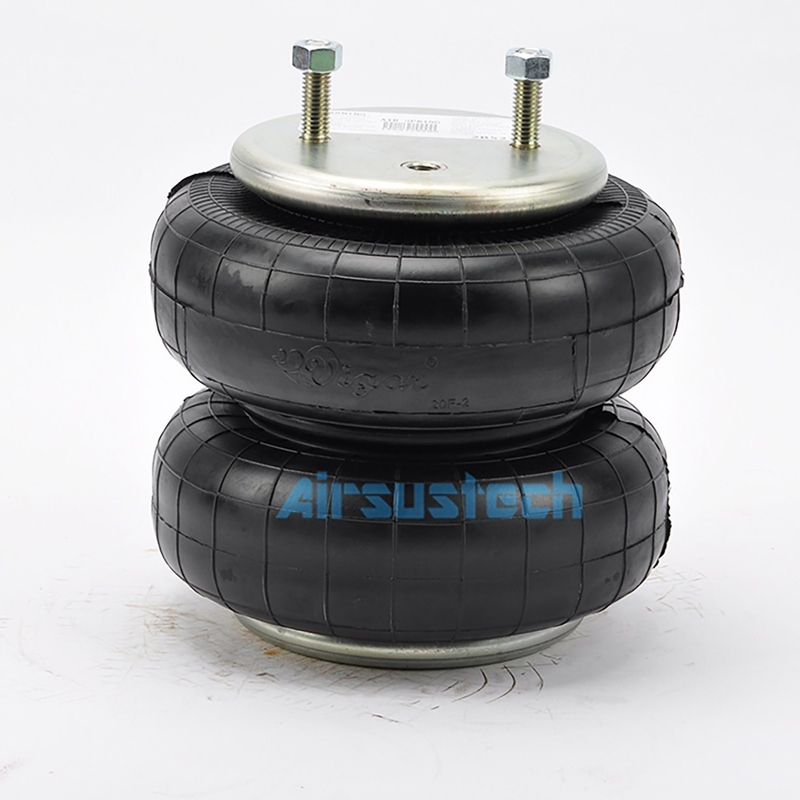

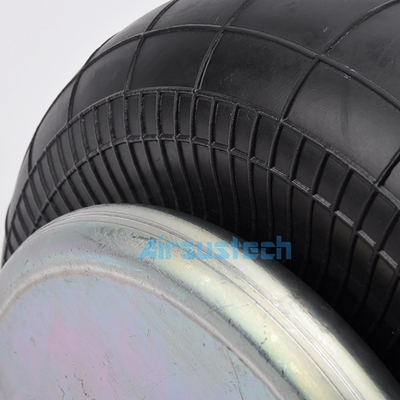

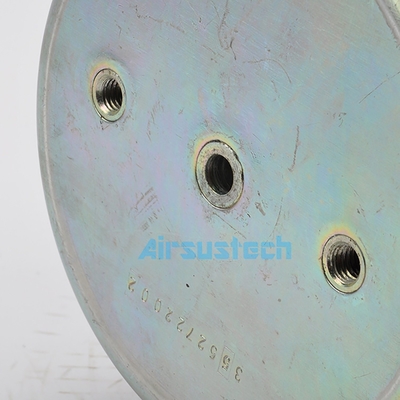

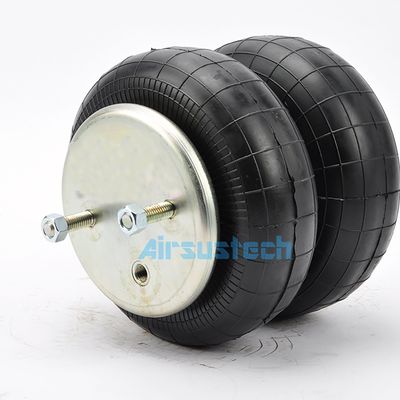

The Real Pictures of Air Suspension
