GUOMAT Air Suspension 2B6910 Cross Triangle 6325/4320 Pneumatic Air Bellows

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B6910

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2B6910	Trademark:	GUOMAT
Warranty:	12 Months	Contitech:	FD 200-19 320
Goodyear:	2B9-200	Bellows Type:	Double Convoluted
Air Hole:	1/4 NPTF	Maximum Height:	260 MM
Highlight:	GUOMAT Air Suspension Bellows , 2B6910 Air Suspension Bellows , 6325/4320 Pneumatic Air Bellows

GUOMAT Air Suspension 2B6910 Cross Triangle 6325/4320 Pneumatic Air Bellows

Product Details

Top Cover Plate Diameter: 160 mm
Screw Center Distance of Top Cover Plate: 89 mm
Bottom Cover Plate Diameter: 160 mm
Screw Center Distance of Bottom Cover Plate: 89 mm
Top Cover Plate Screw(Nut) Tooth: 2×3/8-16UNC
Bottom Cover Plate Screw(Nut) Tooth: 2×3/8-16UNC
Air Hole: 1/4NPTF
Rubber Bellow Max. Diameter: 251 mm
Minimum Height: 75 mm
Maximum Height: 260 mm

Part Interchanges

Firestone Air Spring	W01-358-6910	Triangle Air Spring	4320
Firestone Air Spring	WO1-358-6910	Taurus Air Spring	KF218-6910
Firestone Air Spring	W01 358 6910	Brake&Wheel Air Spring	M3501
Firestone Air Spring	WO1 358 6910	Dina Air Spring	A812719/AZ812719
Firestone Air Spring	W013586910	Dayton Air Spring	3546910
Firestone Air Spring	WO13586910	Leland Air Spring	Sc2011
Contitech Air Spring	FD 200-19 320	Navistar Air Spring	554783C1
Contitech Air Spring	FD 200 19 320	Hendrickson Air Spring	S8768/458433
Contitech Air Spring	FD 20019 320	Ridewell Air Spring	1003586910C
Goodyear Air Spring	2B9-200/202/216	SAF Holland Air Spring	57006910
Goodyear Air Spring	578423202	Trailers De Air Spring	133128
Triangle Air Spring	6325	Tuthill Air Spring	1371
Watson&Chalin Air Spring	AS-0001/AS-0156G

Storage Precautions

1. Spare parts of air springs should be stored in dark places without ventilation as far as possible, avoiding direct sunlight
2. Avoid oil and chemicals on the air springs, otherwise, after long-term storage, the performance of the rubber will be degraded and the service life will be reduced
3. Air springs are best stored in a free state without any external force
4. Do not store in an environment with a temperature exceeding 50 degrees Celsius

Other Triangle Convoluted Air Suspensions/Air Bags/Air Springs

6374/4474	6316/4327	6374/4468	6316/4343
6374/4467	6316/4434	6324/4504	6316/4363
6325/4505	6329/4321	6325/4326	6328/4371
6325/4320	6374/4514	6325/4504	6375/4480
6325/4450	6321	6325/4506	6412/4530
6325/4510	6392/4509	6395/4524	6364/4546
6325/4315	4757/4703	6392/4509	6334/4520
6392/4509	6334/4430	6332/4427	6334/4431
6332/4454	6334/4432	6332/4453	6334/4433
6332/4426	6334/4469	6332/4427	6334/4466
6332/4463	6334/4432	6332/4429	6319/4336
6332/4507	6316/4368	6332/4511	6316/4331
6316/4363	6316/4367	6316/4472	6316/4366
6316/4471	6316/4365	6316/4471	6316/4365
6316/4500	6316/4313	6316/4334	6316/4346
6316/4364

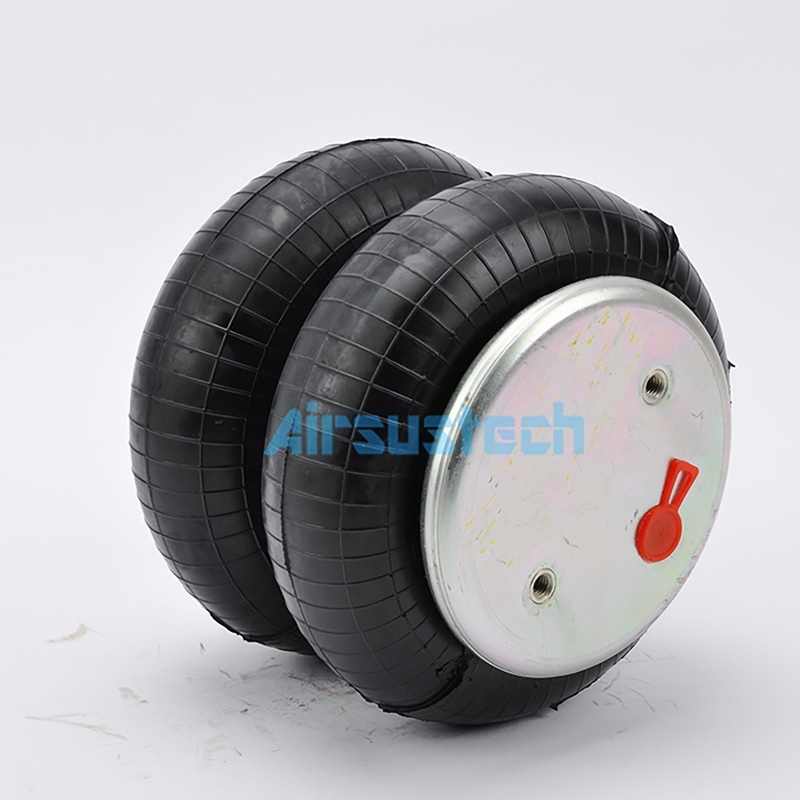

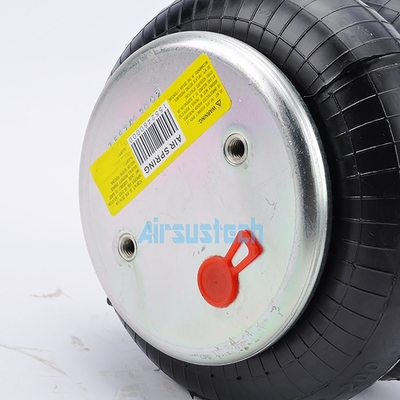

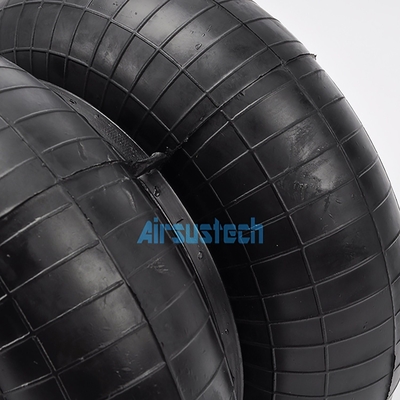

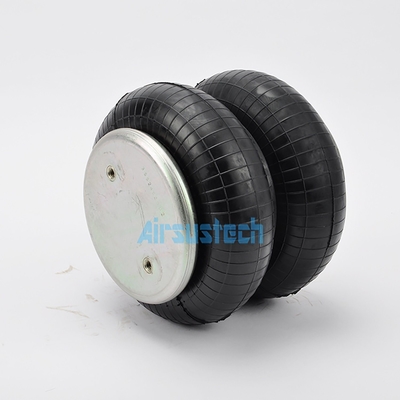

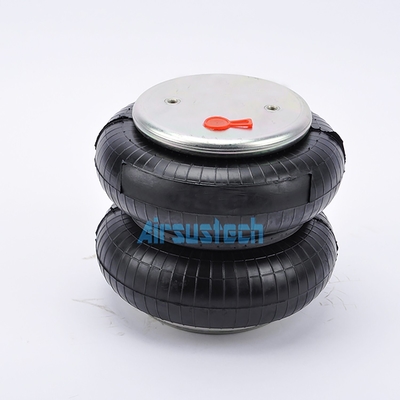

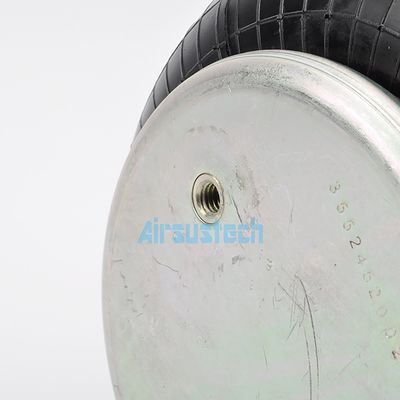

2B6910 Detailed Photos

GUOMAT Air Suspension 2B6910 Cross Triangle 6325/4320 Pneumatic Air Bellows 0

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
GUOMAT Air Suspension 2B6910 Cross Triangle 6325/4320 Pneumatic Air Bellows 1
