Guangzhou Industrial Air Actuator FD 200-19 P04 895 N Contitech Rubber Bellow

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B5235

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2B5235	Fuction:	Reduce Shock
Trademark:	GUOMAT	Warranty:	12 Months
Pneumatic Connection:	ZG1/2	Screw Type:	2×M10×1.5
Type:	Double Convoluted	Firestone:	W01-358-7325
Highlight:	895 N Industrial Air Actuator , FD 200-19 Industrial Air Actuator

Guangzhou Industrial Air Actuator FD 200-19 P04 895 N Contitech Rubber Bellow

Product Standard

Diameter of the Top Cover Plate	160 mm
Center-to-Center Distance of Screws on the Top Cover Plate	85 mm
Diameter of the Bottom Cover Plate	160 mm
Center-to-Center Distance of Screws on the Bottom Cover Plate	85 mm
Screw (Nut) Thread Count for the Top Cover Plate	2×M10×1.5
Screw (Nut) Thread Count for the Bottom Cover Plate	2×M10×1.5
Air Inlet	GZG1/2
Max Diameter of the Rubber Bellow	251 mm
Natural Diameter of Rubber Bellow	224 MM
Design Height	210 mm
Maximum Height	230 mm
Minimum Height	80 mm

Part Number Model

Contitech FD 200-19 P04 895 N

Contitech FD 200 19 P04 895 N

Dunlop (FR) S09208

Firestone W01-358-7325

Firestone W01 358 7325

Firestone W013587325

Firestone WO1 358 7325

Firestone WO13587325

Firestone WO1-358-7325

Goodyear 2B9-287

Goodyear 2B9 287

Goodyear 2B9287

Phoenix 2B 12R-3

Pirelli T20 86660

TAURUS KF 216

SAF 57007325

How Air Springs Work on Bark Peeling Machine

Air springs are commonly used in bark peeling machines to provide shock absorption and isolation from vibrations. An air spring consists of a cylindrical elastomeric bellow sealed between two end plates to form a chamber. When compressed air is added to the chamber, the bellow expands and lifts the upper plate, lifting the load on top of the air spring. The air spring provides a cushion-like effect that isolates the load from shocks and vibrations. The amount of load carried by the air spring can be adjusted by varying the air pressure in the chamber. Guangzhou Guomat Air Spring, a Guangzhou-based company, supplies and installs air spring suspension systems for a variety of industrial applications.
Our company adopts the most advanced domestic air spring dedicated processing equipment and the introduction of foreign production technology of air spring Combined with our unique production process, in accordance with international standards of production, to create a world-class products.

Other Types Of Contitech Convoluted Air Spring Replacement We Could Offer

FS 120-9 3/4 M8	FD 200-25 427	FD 530-35 545
FS 120-9 1/4 M8	FD 200-25 454	FD 530-35 720
FS 200-10 3/4 M8	FD 200-25	FD 120-17 509
FS 200-10 1/4	FD 200-19	FD 40-10
FS 200-10	FD 200-25 453	FD 70-13
FS 70-7 1/4 M8	FD 200-25 426	FD 120-17
FS 330-11 474	FD 200-25 427	FD 200-22 510
FS 330-11	FD 200-25 463	FD 200-22 706
FS 330-11 468	FD 200-25 429	FT 330-29 546
FS 330-14	FD 200-25 507	FT 330-29 547
FS 330-11 647	FD 200-25 511	FT 330-29 520
FS 40-6 1/8 M8	FD 200-25 717	FT 330-29 430
FS120-10	FD 330-22 363	FT 330-29 431
1B8-580	FD 330-22 472	FT 330-29 432
FD 200-19 504	FD 330-22 471	FT 330-29 433
FD 200-19	FD 330-22 500	FT 330-29 469
FD 200-19 724	FD 330-22 313	FT 330-29 466
FD 200-19 539	FD 330-22 337	FT 330-29 498
FD 200-19 505	FD 330-22 318	FT 412-323
FD 200-19 319	FD 330-22 346	FT 210-32
FD 200-19 310	FD 330-22 364	FD 330-22 364
FD 200-19 315	FD 330-22 365
FD 200-19 362	FD 330-22 366
FD 200-19 320	FD 330-22 367
FD 200-19 504	FD 330-22 331
FD 200-19 452	FD 330-22 368
FD 200-19 499	FD 330-22 327
FD 200-19 450	FD 330-22 343
FD 200-19 448	FD 330-22 334
FD 200-19 506	FD 330-22 363
FD 200-19 510	FD 530-22 321
FD 200-22 524	FD 330-30-371
FD 200-19 P04	FD 331-26-514
FD 200-19 315	FD 331-26-541
FD 120-20	FD 331-26-480
FD 120-20 509	FD 530-35 545
FD 120-20 509	FD 530-35 543
FD 200-25	FD 530-35 530

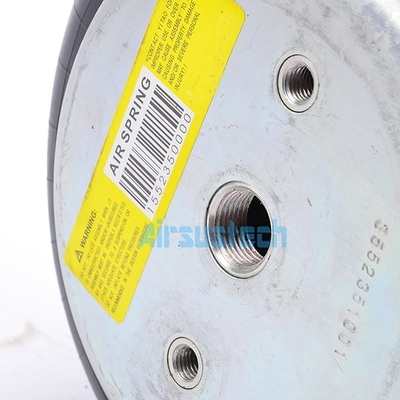

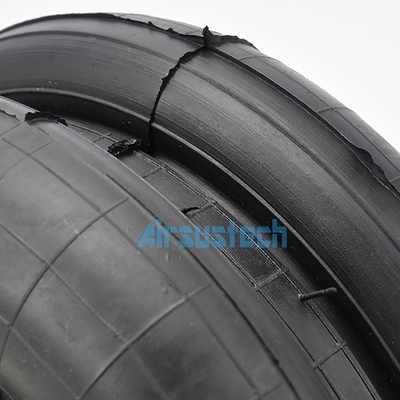

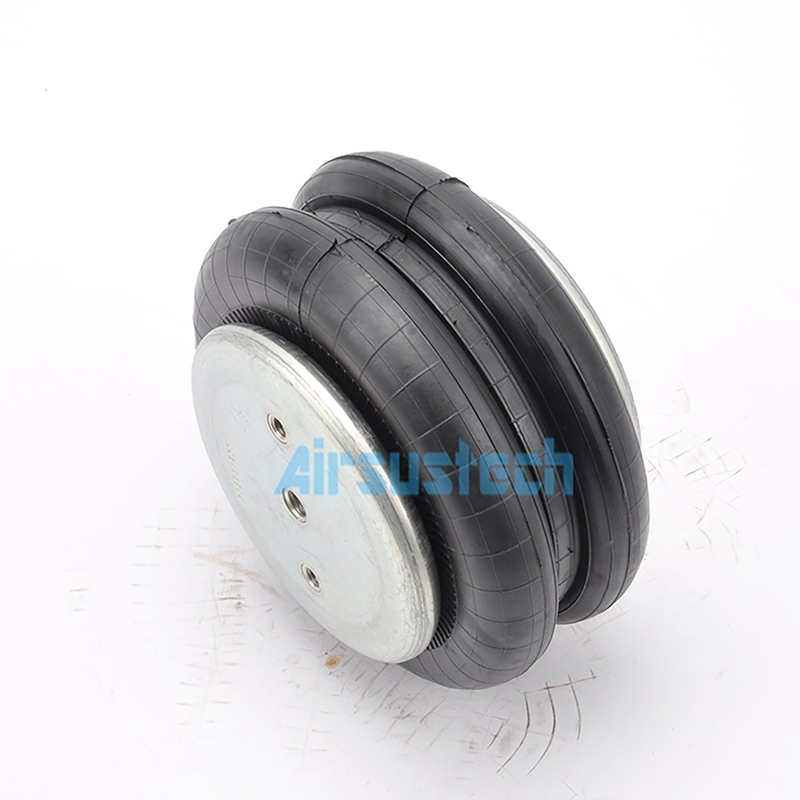

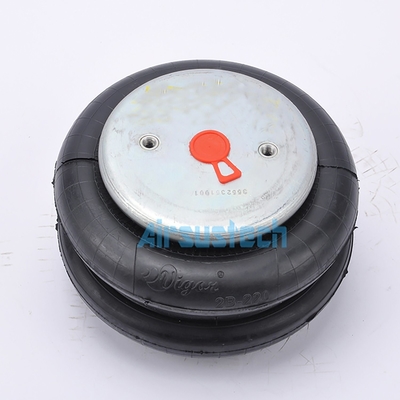

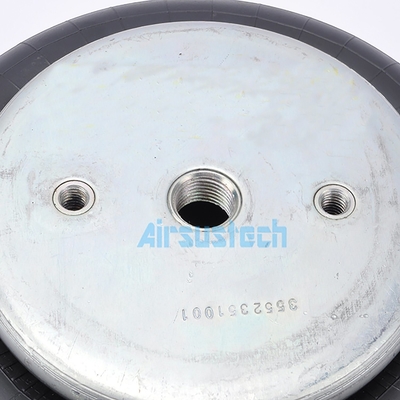

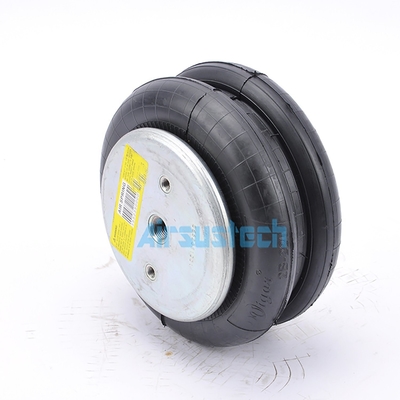

The Related Pictures of 2B5235

Guangzhou Industrial Air Actuator FD 200-19 P04 895 N Contitech Rubber Bellow 0

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
