Contitech FT 22-6 DI CR Triple Convolutions Industrial Air Spring G1/4 Air Connection

Product Details:

Place of Origin:	Germany
Brand Name:	Contitech
Certification:	ISO/TS16949:2009
Model Number:	FT 22-6 DI CR

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD119.9-159.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Part:	Air Spring	Model NO.:	Contitech FT 22-6
Fuction:	Reduce Shock	Specification:	Rubber
Type:	Gas-Filled	Order NO.:	79454
Max.Height:	140mm	Application:	Vibratory Conveyors
Highlight:	Triple Convolutions Industrial Air Spring , Contitech Industrial Air Spring

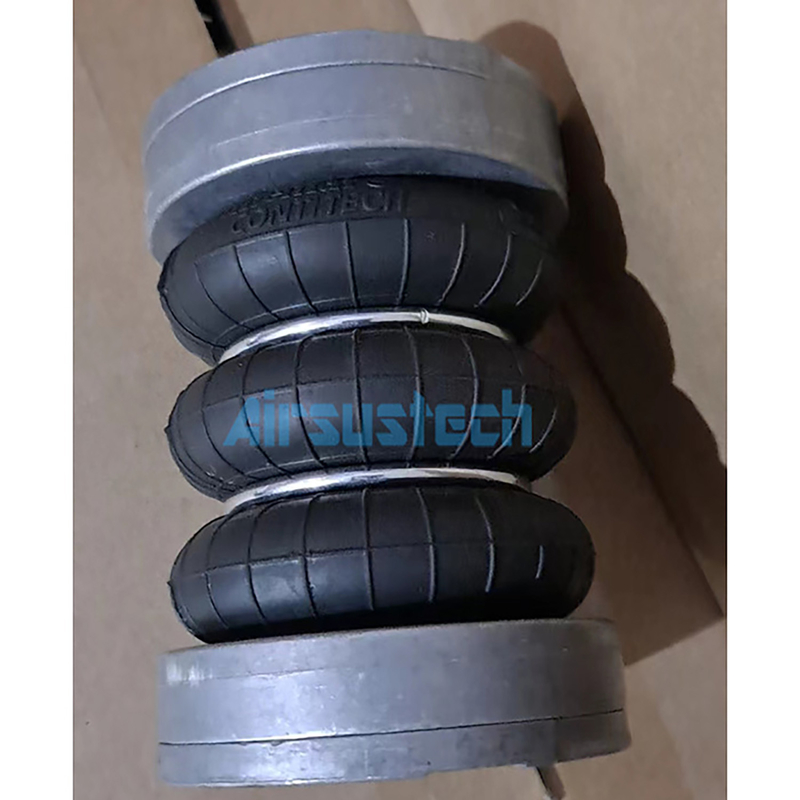

Contitech FT 22-6 DI CR Triple Convolutions Industrial Air Spring G1/4 Air Connection

OEM NO.

Contitech FT 22-6 DI CR
Contitech FT 22 6 DI CR

Contitech FT 22-6

Contitech FT22-6

Contitech 63920

Specifications and Detailed Technical Parameters

Nut/blind nut

Top plate screw (nut) teeth: 2×M6
Screw (nut) teeth of the bottom cover plate: 2×M6

Air hole/air inlet/air fittings

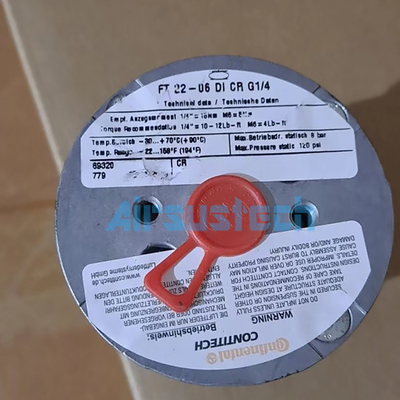

Air hole/air inlet: G1/4

Rubber Bellows

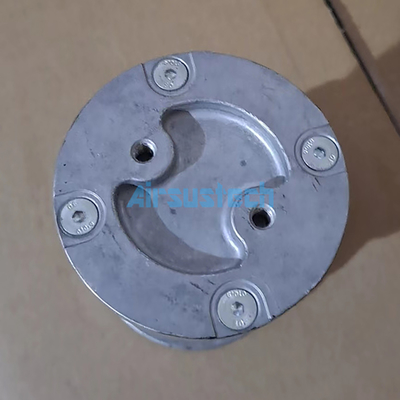

Top plate diameter (width): 78mm
Diameter (width) of the bottom cover plate: 78mm
Material top and bottom plate: aluminum
Bell rubber bellows
Maximum diameter at 7 bar: 80mm
Rubber bellows stroke: 80mm-140m
Required installation space: 95mm

Bumper block/bumper block

Without bumper block

Belt loop/Belt loop/Girdle hoop

With belt loop: two pieces of belt loop/Girdle Hoop

Min. pressure: 0 bar
Return force to min.height: ≤100N
Overall weight with clamped plates: 0.53kg

Pneumatic application-static characteristic values
Force F[KN]

Pressure p [bar]		3	4	5	6	7	8	Vol. V [l]
Height H[mm]	130	0.43	0.60	0.76	0.94	1.12	1.31	0.25
	110	0.72	0.96	1.21	1.46	1.71	1.96	0.21
	90	0.93	1.23	1.53	1.84	2.14	2.45	0.15

Other types Contitech DI Air Spring( Air Bellows) We could offer

Size	Max. Rubber Bellows Diameter	Rubber bellows stroke	Air Inlet
FS 22-3 DI CR	80mm	50mm-70mm	G1/4
FS 44-5 DI CR	125mm	50mm-90mm	G3/8
FS 76-7 DI CR	175mm	55mm-110mm	G1/2
FD 22-4 DI CR	80mm	65mm-110mm	G1/4
FD 44-10 DI CR	125mm	65mm-150mm	G3/8
FD 76-14 DI CR	178mm	80mm-195mm	G1/2
FT 44-15 DI CR	125mm	90mm-200mm	G3/8
FT 76-20 DI CR	178mm	100mm-290mm	G1/2

Application range of air spring

Air springs can guarantee the stability of mechanical equipment; improve the self-vibration of mechanical equipment during operation; prolong the service life of mechanical equipment; reduce the wear and tear of mechanical equipment due to vibration. To keep the system stable; to make the system not resonate when disturbed; to stabilize soon after being disturbed. Therefore, it is more and more widely used in the following industrial field:
Power plant (rotary) equipment, such as pipelines, transformers, diesel generators, steam-driven feed pumps, steam turbine generators, condensers, control rooms, fans, coal mills, crushers, water pumps;
Precision instruments, such as three-coordinates, roll grinders, control cabinets, marine precision instruments;
Forging hammer equipment, such as forging hammers, presses, high-speed punches;
Test bench equipment, such as engine test bench, motor vehicle test bench

Contitech FT 22-6 Di Cr Triple Convolutions Industrial Air Spring

ContiTech Air Spring is a product line developed by ContiTech Air Spring Systems, a division of Continental AG. ContiTech Air Spring Systems has been producing high-quality air springs and air actuators for over 50 years. Their product portfolio includes components and complete systems for adjustable air suspension systems in commercial vehicles, buses, rail vehicles, stationary machines, and foundation mounts
