China Industrial Air Spring Contitech FD 76-14 DI Double Air Bellows for Damping

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B6 x 2P

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2B6 X 2P	Structure:	Double Convoluted
Quality:	100 % Tested	Trademark:	GUOMAT
Warranty:	12 Months	Firestone:	W01-R58-4070
Vibration Frequency:	2.7 Hz	Ships From:	Any Port In China
Highlight:	Damping Industrial Air Spring , China Industrial Air Spring

China Industrial Air Spring Contitech FD 76-14 DI Double Air Bellows for Damping

2B6×2P Air Spring Specifications

Cover Plate
Top Cover Plate Diameter	178 mm
Screw Center Distance of Top Cover Plate	127 mm
Bottom Cover Plate Diameter	178 mm
Screw Center Distance of Bottom Cover Plate	127 mm
Nut/Blind Nuts
Top Cover Plate Screw(Nut) Tooth	4×M8
Bottom Cover Plate Screw(Nut) Tooth	4×M8
Gas Hole/Air Inlet/Air Fitting
Air Connection	G1/2
Rubber Bellow
Rubber Bellow Max. Diameter	178 mm
Installation Space	195 mm
Minimum Height	80 mm
Maximum Height	195 mm

OEM Cross References

Contitech FD 76-14 DI CR

Contitech FD 76 14 DI CR

Norgren PM/31062

Norgren PM 31062

Norgren PM31062

Fire-stone W01-R58-4070 - (6 x 2 Alu )

Fire-stone W01 R58 4070 - (6 x 2 Alu )

Fire-stone W01R584070 - (6 x 2 Alu )

Dunlop Part NO.6"x2

Product Features & Benefits

Superior Rubber Chemistry
Reduced Weight
Internal Wall Cord
Comfort
Equipment Longevity

Other Types Convoluted Air Suspensions

GUOMAT NO.	Firestone	Dunlop Pneuride	Dunlop Springride	Contitech	Norgren	Parker
2 3/4''×2		2 3/4''×2	SP2904	FD 22-4 DI		9109009
2B4.5×2	W01R584051	4 1/2''×2	SP2441	FD 44-10 DI	PM/31042	9109401
2B4.5×2-E
2B6×2T(AI)	W01R584070	6''×(AI)	SP2917	FD 76-14 DI	PM/31062	9109001A
2B6×2T(Steel)	W01R584053	6''×2(Steel)	SP1482	FD 76-14 DS	M/31062	9109001
2B8×2T	W01R584055	8''×2	SP1490	FD 138-18 DS	M/31082	9109011
2B10×2T	W01R584058	10''×2	SP1538	FD 210-22 DS	M/31102	9109021
2B12×2T	W01R584061	12''×2	SP1541	FD 412-22 DS	M/31122	9109041
2B12''×2-E	W01R584039	12''×2 Extend	SP2782NB
2B14 1/2''×2T	W01R584064	14'' 1/2×2	SP1556	FD 614-26 DS	M/31142	9109061
2B16×2T	W01R584067	16''×2	SP1557	FD 816-30 DS	M/31162	9109171
2B21 1/2''×2T		21 1/2''×2	SP1408		M/31212	9109153
2B26''×2T		26''×2	SP2342		M/31262	9109159

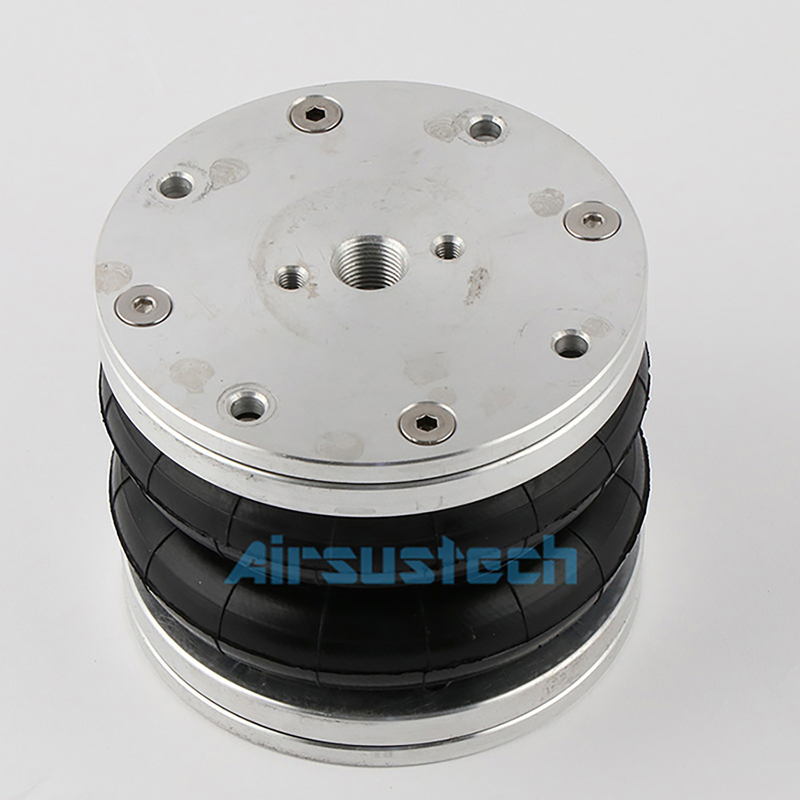

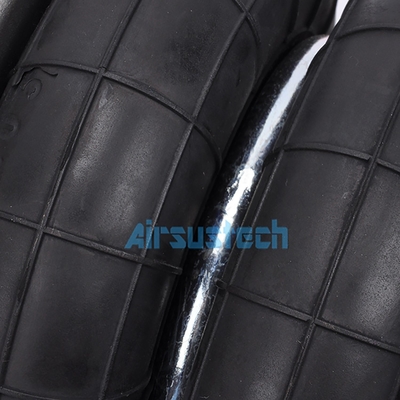

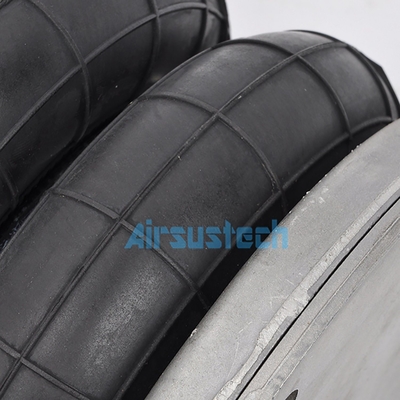

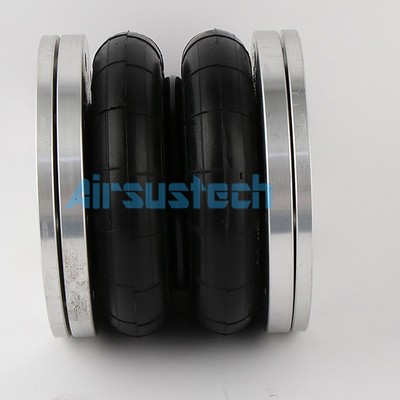

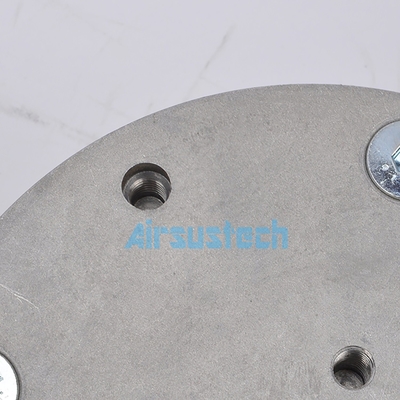

The Related Picture of 6x2

China Industrial Air Spring Contitech FD 76-14 DI Double Air Bellows for Damping 0

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
