W01-358-7781 Double Convoluted Air Spring 2B12-427 Goodyear Air Bellow Hight Stroke

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B7781

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$89.9-99.9/pc
Packaging Details:	strong carton box or as customers need
Delivery Time:	3-7 Working Days
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Quality:	100 % Tested	Transport Package:	Strong Cartons
Warranty:	12 Months	Part:	Air Spring
Type:	Gas-Filled	Spring Type:	Air Spring
Firestone:	W01-358-7781	Goodyear:	2B12-427

W01-358-7781 Double Convoluted Air Spring 2B12-427 Goodyear Air Bellow Hight Stroke

Product Description

GUOMAT 2B7781 Double Convoluted Air Spring is a high-performance air suspension component designed to deliver superior load support, vibration isolation, and long service life. As a reliable replacement for Goodyear 2B12-427, this air bellow is widely used in truck suspension systems, industrial equipment, and heavy-duty applications requiring high stroke capability.

OEM Number

Contitech FD530-35 545

Contitech FD 530-35 545

Contitech 64607

Firestone Style: 233-2

Firestone No.: W01-358-7781

Firestone No.: W01 358 7781

Firestone No.: W013587781

Goodyear 2B12-427

Goodyear 2B12 427

FleetPride AS7781

Taurus 6412

Triangle AS-4545

TRP AS77810

Automann SP2B34RC-7781

Ridewell 1003587781C

Cush C-0083

2B7781 specifications and Technical Data
1. Nut/blind nut Top plate screw (nut) teeth: 4×3/8-16UNC
Top plate screw center distance: 159mm
2. Bottom cover plate screw (nut) teeth: 4x 3/8-16UNC
Bottom plate screw center distance: 159mm
2. Air hole/air inlet/air fitting air hole/air inlet: 3/4NPT
3. Top plate diameter (width): 289mm, bottom cover diameter (width): 289mm
4. Rubber bellows Max. diameter: 406mm
5. Min height: 104mm
Max. height: 391mm
6. Bumper block/bumper block with bumper
7. Belt loop/belt loop/girdle hoop: with one piece of belt loop/girdle hoop

Quality Assurance

Each air spring undergoes strict quality control processes, including:

100% air tightness testing
Fatigue and durability testing
Load performance inspection

We provide a 12-month warranty to ensure reliable performance and customer satisfaction.

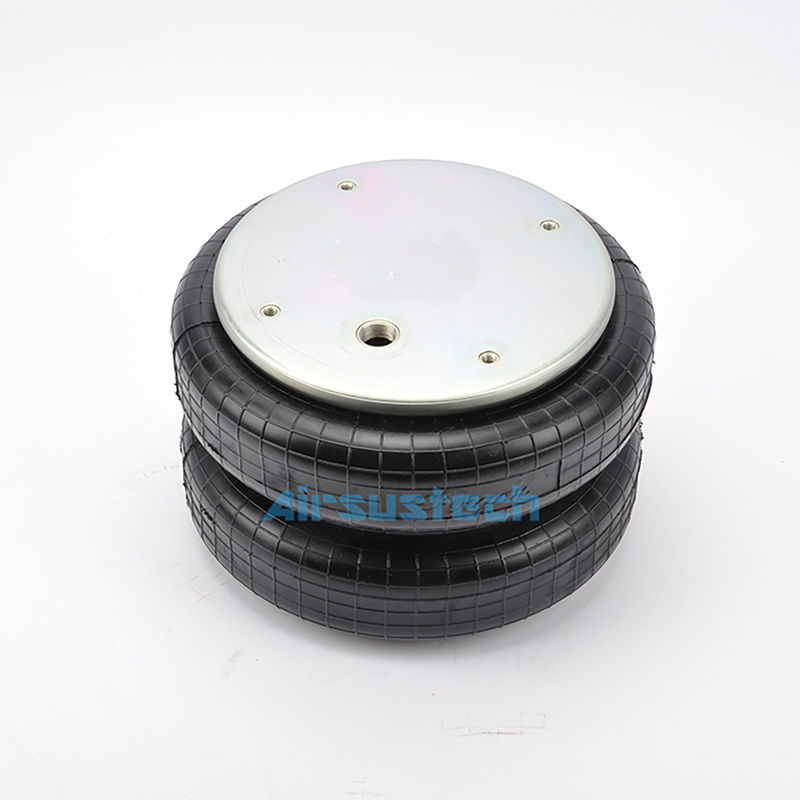

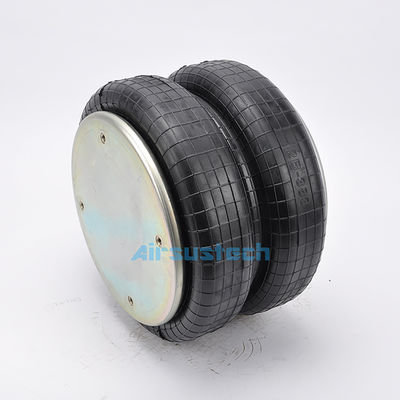

The Related Picture of 2B7781 Air Spring/Pneumatic Cylinder

W01-358-7781 Double Convoluted Air Spring 2B12-427 Goodyear Air Bellow Hight Stroke 0
