Contitech FT330-29 430 Air Suspension Bellows W01-358-8006 Firestone Triple Convoluted Air Spring

Contitech FT330-29 430 Air Suspension Bellows W01-358-8006 Firestone Triple Convoluted Air Spring

  • Contitech FT330-29 430 Air Suspension Bellows W01-358-8006 Firestone Triple Convoluted Air Spring
  • Contitech FT330-29 430 Air Suspension Bellows W01-358-8006 Firestone Triple Convoluted Air Spring
  • Contitech FT330-29 430 Air Suspension Bellows W01-358-8006 Firestone Triple Convoluted Air Spring
  • Contitech FT330-29 430 Air Suspension Bellows W01-358-8006 Firestone Triple Convoluted Air Spring
Contitech FT330-29 430 Air Suspension Bellows W01-358-8006 Firestone Triple Convoluted Air Spring
Product Details:
Place of Origin: GuangDong, China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 3B8006
Payment & Shipping Terms:
Minimum Order Quantity: 6pcs
Price: $89.9-99.9/pc
Packaging Details: strong carton box or as customers need
Delivery Time: 3-7 Working Days
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Structure: Triple Cylinder Quality: 100 % Tested
Fuction: Reduce Shock Cross Reference: Contitech FT 330-29 430
Transport Package: Strong Cartons Warranty: 12 Months
Color: Black Firestone: W01-358-8006

Contitech FT330-29 430 Air Suspension Bellows W01-358-8006 Firestone Triple Convoluted Air Spring


Product Description


Product Name: Triple Convoluted Air Spring
Brand: GUOMAT
Model Number: 3B8006
Warranty: 1 Year
Material: Rubber, Steel


Cross-Reference Number

Contitech 64561
Contitech FT330-29 430
Contitech FT 330-29 430
Firestone 38
Firestone W01-358-8006
FleetPride AS8006
Taurus 6334
Triangle AS-4430
Automann SP3B22R-8006



OE Manufacturer

Meritor 200620


Specifications and Detailed Technical Parameters: 3B8006


Nut/blind nut

The top/bottom cover plate screw: 2×M10×1.5

The screw center distance of the Top cover plate: 157.5mm

The screw center distance of the bottom cover plate: 157.5 mm

Screw And Gas Hole Distance of Top Cover Plate:73mm

Rubber Bellows

Top plate diameter (width): 231 mm

Diameter (width) of the bottom cover plate: 231 mm

Rubber Bellows MAX Diameter: 295mm

The Working Stroke: 297mm

Bumper block/bumper block

Without bumper block

Belt loop/Belt loop

With belt loop: Two belt loop

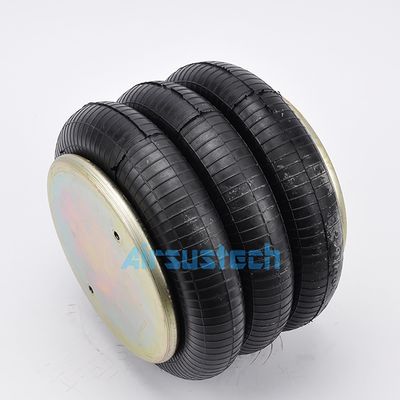

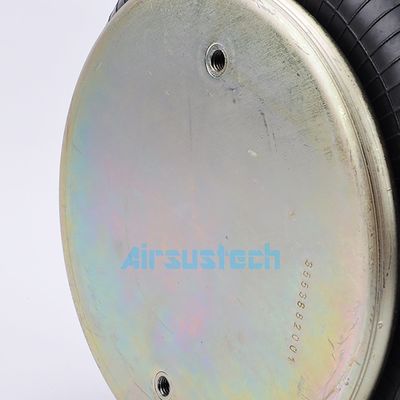

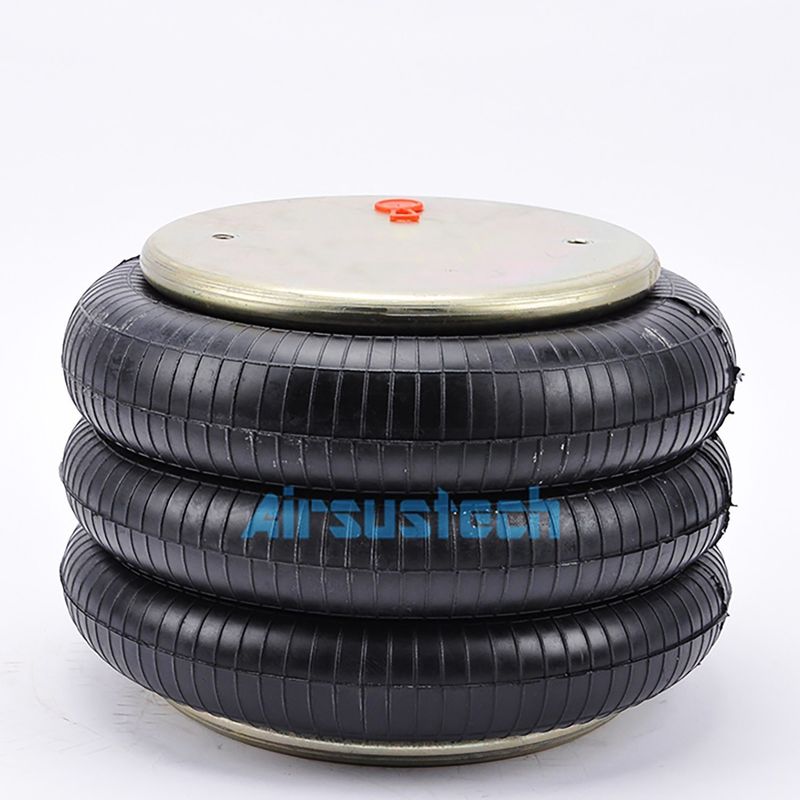

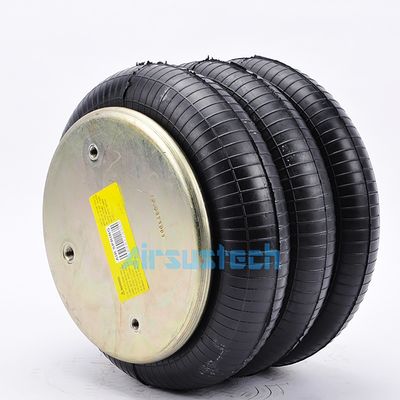

The related picture of 3B8006

Contitech FT330-29 430 Air Suspension Bellows W01-358-8006 Firestone Triple Convoluted Air Spring 0
