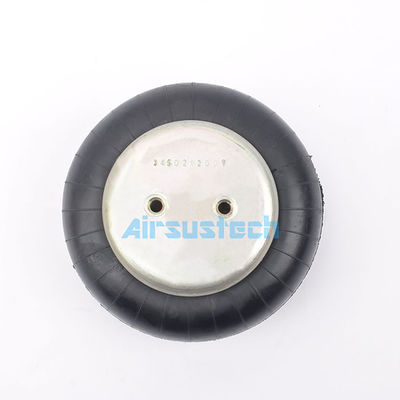

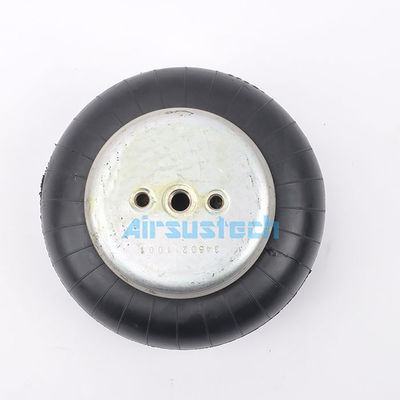

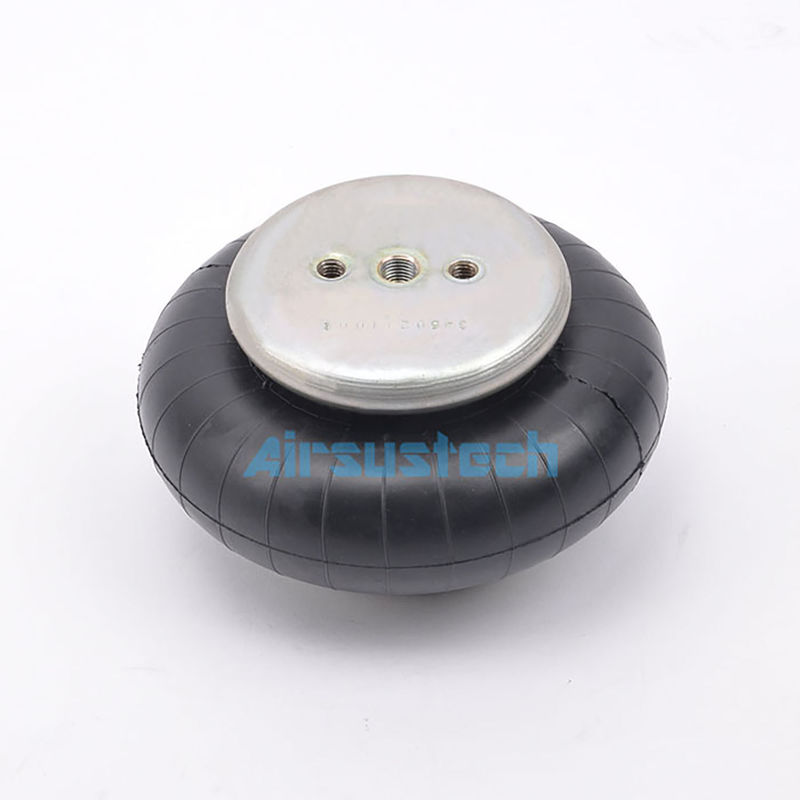

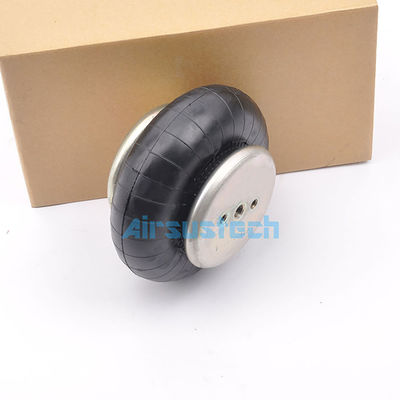

Industrial Rubber Air Actuator W01-358-7451 Firestone Steel Cover Rubber Air Spring
Refer number
Manufacturer: Firestone
Part Number: W01-358-7451
Manufacturer: Firestone
Part Number: W01 358 7451
Manufacturer: Firestone
Part Number: W013587451
Manufacturer: Goodyear
Part Number: 1B7-540
Manufacturer: Goodyear
Part Number: 1B 7-540
The detail specifications and parameters
Blind Nut(Teeth)
Screw Teeth of the top plate: 2×3/8-16UNC
Screw Teeth of the bottom plate: 2×3/8-16UNC
Rubber Bellows
The Max. Diameter: 205mm
Cover plate diameter
Top cover plate diameter: 115mm
Bottom cover plate diameter: 115mm
Air Inlet/Air Hole/Air Fittings
1/4NPTF
Height
Maximum Height: 140mm
Minimum Height: 50mm
Stroke Height: 90mm
Bumper block/Buffer block
Without
Girdle Hoop/Girdle Ring/Belt Loop
Without
Built for Industrial Stability & Equipment Protection
In industrial applications, vibration and uneven load distribution can directly affect equipment accuracy, service life, and operating safety.
Industrial air springs are designed to isolate vibration, absorb shock, and provide flexible load support for machinery operating under constant pressure. By using compressed air instead of rigid mechanical springs, they help reduce transmitted vibration and maintain stable working conditions.
Whether installed on production machinery, lifting platforms, or vibration-sensitive equipment, a reliable industrial air spring helps protect structural components, improve operational stability, and support long-term continuous use.
For industrial environments where consistency matters more than comfort, air springs provide a practical and durable solution.
Frequently Asked Questions
|
1. Are you a Manufacture factory?
Yes, We are the direct manufacture factory, located in Guangzhou China, Which is specialized in air spring in China for over 12years experience from 2008 years.
|
|
2. What is your main products?
Our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system.
|
|
3. Is the sample available?
Yes, Usually we send the samples by TNT,DHL,FEDEX or UPS, it will take around 3 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order.
|
|
4. What is your warranty term?
Our company offer 1% free spare parts to FCL order.There is a 12months warranty for our export products has run out from the date of the shipment.If warranty ,our customer should pay for the replacement parts.
|
|
5. Can i use my own logo and design on products?
YES,OEM is welcomed.
|
|
6. I can not find out the items what i want from your website, can you offer the products i need?
YES.One of our service term is sourcing the products that our customers need,So please tell us the details information of the item.
|
